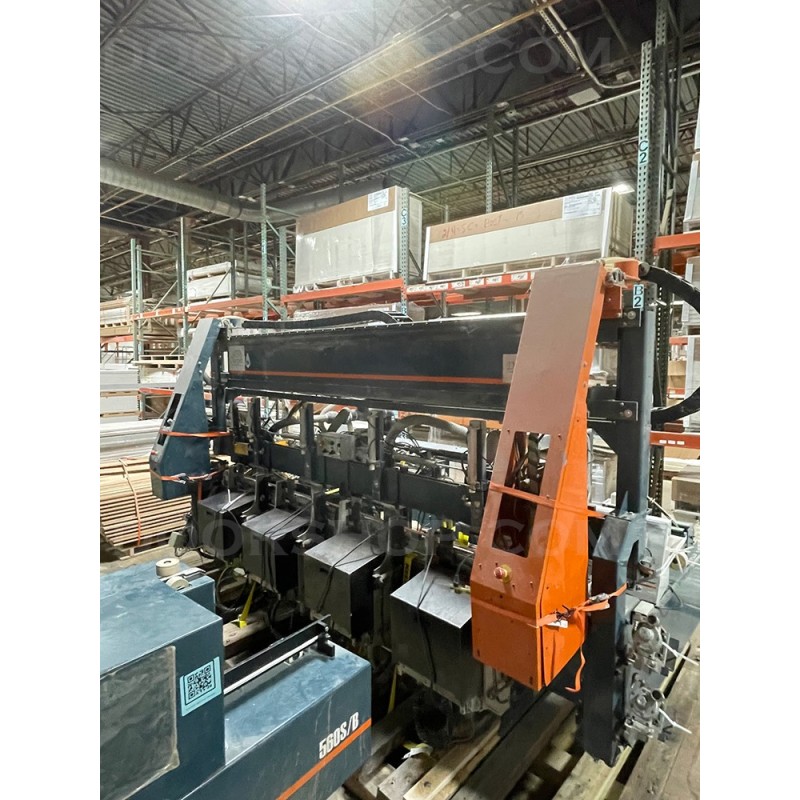

Norfield Eagle Automatic Prehung Door System
$112,200
NF10607
Produce high volumes of 6-8, 7-0, AND 8-0 prehung doors with the Norfield Eagle system. This “loaded” line includes:
- Model 530 automatic door loader
- Model 560 automatic door sizer/beveler
- Model Eagle automatic prehung door machine featuring
- automatic pilot hole predrills
- automatic screwfeeding
- TWO automatic hinge applicators (3-1/2” and 4”)
- Automatic ball catch drills
• Kval model 700-C automatic door frame assembly machine
Excellent parts and technical support available from Norfield. This line available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- On-screen diagnostics & help screens with pop-up messaging to greatly increase the effectiveness of troubleshooting
- Integrated system control
- Raised molding ready
- Auto door position and door feed
- Auto and manual width indexing
- Manual tilt for flush hinge-mortising on double beveled doors
- Interior/exterior ready for both wood and fiberglass
- Centrally located ergonomic controls
- Non-marking rubber rollers
- Dust collection plumbing
- Intuitive graphical user interface using a high resolution, full color 7" touchscreen
- One touch auto change between two different hinge patterns
- Bypass lock bore machining
- Auto screwfeeder vacuum system for manual screw changes
- Auto-start capable for dust collection vacuum
Specs
| Capabilities | Min | Max |
| Door Width | 1’6” | 3’6” |
| Door Height | 6'6" | 8'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Jamb Width | 2-1/2" | 7-1/2" |
| Jamb Height | 6'6" | 8'0" |
| Jamb Thickness | 3/8" | 1-1/2" |
| Hinge Size | 3-1/2" | 4" std |
| Hinge Radius | - | 5/8" |
| Hinge butts per door | 2, 3 or 4 | |
| Lock and deadbolt bore | ||
| Diameter | 1/2" | 2-1/8" |
| Lock height | 34-1/2" | 65-1/2" |
| Backset | 2-3/8" | 2-3/4" |
| Lock bore | ||
| Diameter | 1/2" | 1-1/4" |
| Lock height | 34-1/2" | 65-1/2" |
| Faceplate Mortise | ||
| Plate width | 1-1/2" | |
| Plate length | 2-1/2" | |
| Approx. Shipping Weight | 6,500 lbs | |
| Floor Space | 10'W x 13'L x 7'6"H | |
| Electrical | 3PH 208/230V @ 50AMPS | |
| Air | 50CFM @ 100PSI | |
| 1" air supply with 3/4" air line | ||
NF10607
Data sheet
- Model
- Eagle
- Manufactured Date
- Norfield machines 2007, Kval 700-C 1999
- Brand
- Norfield
- Price
- $112,200
- Listing Number
- NF10607
- Serial number
- LM8022, DS7458, MC8019, 99-46-140-R
- FOB
- AZ
