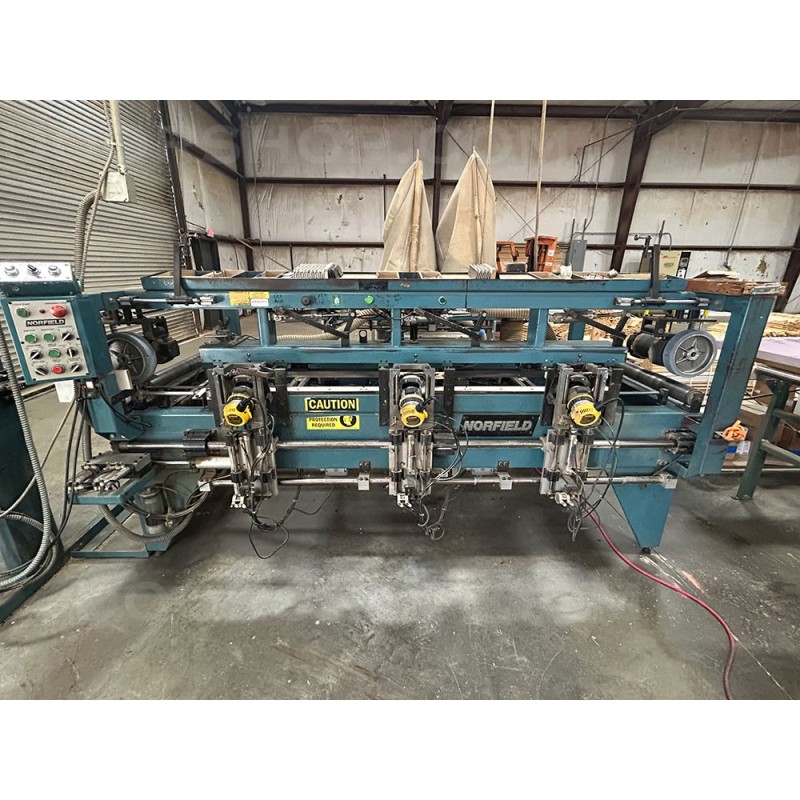

Norfield 4000 Automatic Prehung Door Machine w/4200 Loader
$15,700
NF10581
The 4000 door machine churns out 6’8” prehungs. This machine automatically mortises 2 or 3 hinge pockets in the door and jamb, while simultaneously drilling the lock and latch bores, and also mortising for the faceplate. Combined with the included model 4200 door loader, typical throughput rate is about 2 minutes/door. Available immediately.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Bottom-up clamping system, which accommodates both interior and exterior doors
- Underside lock drilling enables exit cut viewing for quality control
- Superior dust collecting system
- Chip breaker to achieve crisp clean hinge mortising
- Automatic lock, latch and faceplate machining
- Industrial-grade material and parts for longevity
Specs
| Capabilities | Min | Max |
| Door Width | 1’6” | 3’6” |
| Door Height | 6'6" | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Jamb Width | 2-1/2" | 10-1/2" |
| Jamb Height | 6'6" | 7'0" |
| Jamb Thickness | 1/2" | 1-1/2" |
| Hinge Size | 3-1/2" | 4" std |
| Hinge Radius | - | 5/8" only |
| Lock Backsets | 2-3/8" | 2-3/4" |
| Faceplate Width | 1-1/8" x 2-3/4" | |
| Approx. Shipping Weight | 3,000 lbs | |
| Floor Space | 6'6"W x 9'L x 6' H | |
| Electrical | 230V 1 PH 208/230V 3PH |
|
| Air | 15CFM @ 90PSI | |
NF10581
Data sheet
- Model
- 4000 Automatic Prehung Door Machine w/4200 Loader
- Manufactured Date
- 1999
- Brand
- Norfield
- Price
- $15,700
- Listing Number
- NF10581
- Serial number
- MC4084
- FOB
- GA
