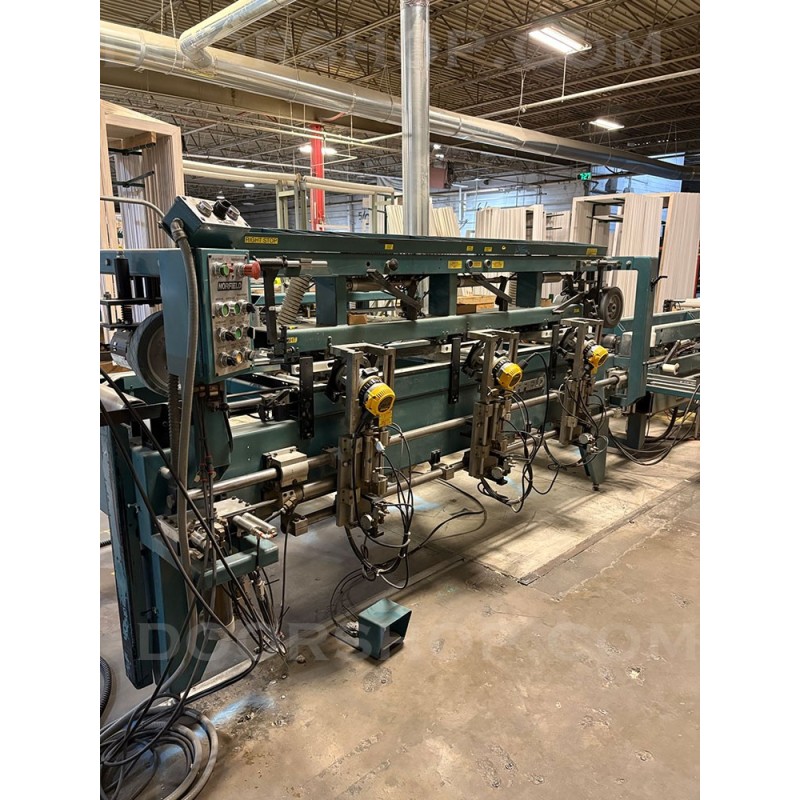

Norfield 4000 Automatic Prehung Door System
$15,000
NF10571
You can churn out 6’8” prehung doors with the workhorse 4000 system. This line includes a model 4200 door loader, 4000 automatic door machine (auto hinge prep in door and jamb; auto lock and faceplate in door), 4100 automatic door frame assembly table, and two Full House material handling stations that further boost efficiency and safety. Available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Bottom-up clamping system, which accommodates both interior and exterior doors
- Underside lock drilling enables exit cut viewing for quality control
- Superior dust collecting system
- Chip breaker to achieve crisp clean hinge mortising
- Automatic lock, latch and faceplate machining
- Industrial-grade material and parts for longevity
Specs
| Capabilities | Min | Max |
| Door Width | 1’6” | 3’6” |
| Door Height | 6'6" | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Jamb Width | 2-1/2" | 10-1/2" |
| Jamb Height | 6'6" | 7'0" |
| Jamb Thickness | 1/2" | 1-1/2" |
| Hinge Size | 3-1/2" | 4" std |
| Hinge Radius | - | 5/8" only |
| Lock Backsets | 2-3/8" | 2-3/4" |
| Faceplate Width | 1-1/8" x 2-3/4" | |
| Approx. Shipping Weight | 3,000 lbs | |
| Floor Space | 6'6"W x 9'L x 6' H | |
| Electrical | 230V 1 PH 208/230V 3PH |
|
| Air | 15CFM @ 90PSI | |
NF10571
Data sheet
- Model
- 4000
- Manufactured Date
- 1989
- Brand
- Norfield
- Price
- $15,000
- Listing Number
- NF10571
- Serial number
- MC4031, AS4150
- FOB
- GA
