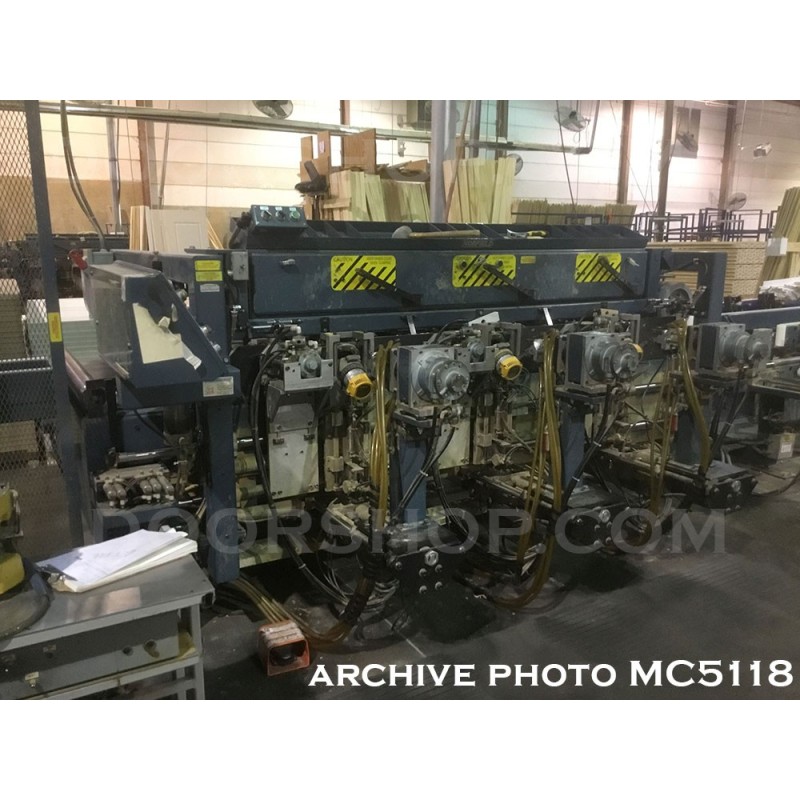

Norfield 5000 Automatic Prehung Door Line
$58,800
NF10597
The 5000 is legendary for high speed 80” prehung door production. Doors feed automatically from the 5200 door loader (60-door capacity) into the 5000 machining center. The MC mortises the door and jamb for hinges, preps the door for lock, predrills 18 hinge screw pilot holes, and automatically installs 2-3 hinges. Finally the door/jamb unit travels to the 5100 for automatic frame assembly. 35-40 seconds/door is a typical throughput rate; suitable for 150-400+ doors/day. This particular 5000 also features automatic screwfeeding. Available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Automatic door width adjustment
- Automatic door feeding, and positioning for right- or left-hand doors
- Automatic pre-drill for 3-1/2" hinges
- Automatic hinge application - operator places hinges on applicators
- Automatic 2-1/8" lock bore, latch bore and faceplate routing
- Center mounted cycle start controls are ergonomically placed for operator
- E-stop with air dump releases pinch points and clamps for operator safety
- Bypass lock bore machining
- Sequenced based sensors ensure reliability at higher operating speeds
- Machine clamps the door up for varying door thicknesses
- Simplified re-positioning of door for handling changes
- 7" operator touchscreen with graphical interface for ease of use
- Raised molding compatible
- 10" touchscreen control
- Operating temperature above 50º
Options
- Spare parts packages
- 3HP vacuum with auto start
- Additional conveyor sections
- Auto tilt changeover, 0° to 3° for hinge and latch sides
- One bowl automatic screwfeeding (Designed for #9 philips screws)
- Two bowl automatic screwfeeding (two screw colors)(Designed for #9 philips screws)
- High speed option for increased production output
Specifications
| Capabilities | Min | Max |
| Door Width | 1’6” | 3’6” |
| Door Height | 6'6" | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Jamb Width | 2-1/2" | 10-1/2" |
| Jamb Height | 6'6" | 7'0" |
| Jamb Thickness | 1/2" | 1-1/2" |
| Hinge Size | 3-1/2" | 4" std |
| Hinge Radius | - | 5/8" only |
| Pre-drill Pattern | 3-1/2" only | |
| Hinge Application | 3-1/2" only | |
| Lock Backsets | 2-3/8" | 2-3/4" |
| Faceplate Width | 1" | 1-1/8" |
| Faceplate Length | 2-1/4" | 2-3/4" |
| Faceplate Router | up to | 1-1/8" x 2-3/4" |
| Raised Molding | ||
| Height | - | 3/4"" |
| From edge of door | 3-1/4" | |
| Approx. Shipping Weight | 12,000 lbs | |
| Floor Space | 9'W x 11'-6"L x 6' H | |
| Electrical | 208/230v 3 PH@50amps with neutral 208/230V 3PH |
|
| Air | 30CFM @ 90 PSI | |
NF10597
Data sheet
- Model
- 5000 Automatic Prehung Door Line
- Manufactured Date
- 2004
- Brand
- Norfield
- Price
- $58,800
- Listing Number
- NF10597
- Serial number
- LM5304, MC5118, AS5213
- FOB
- FL
