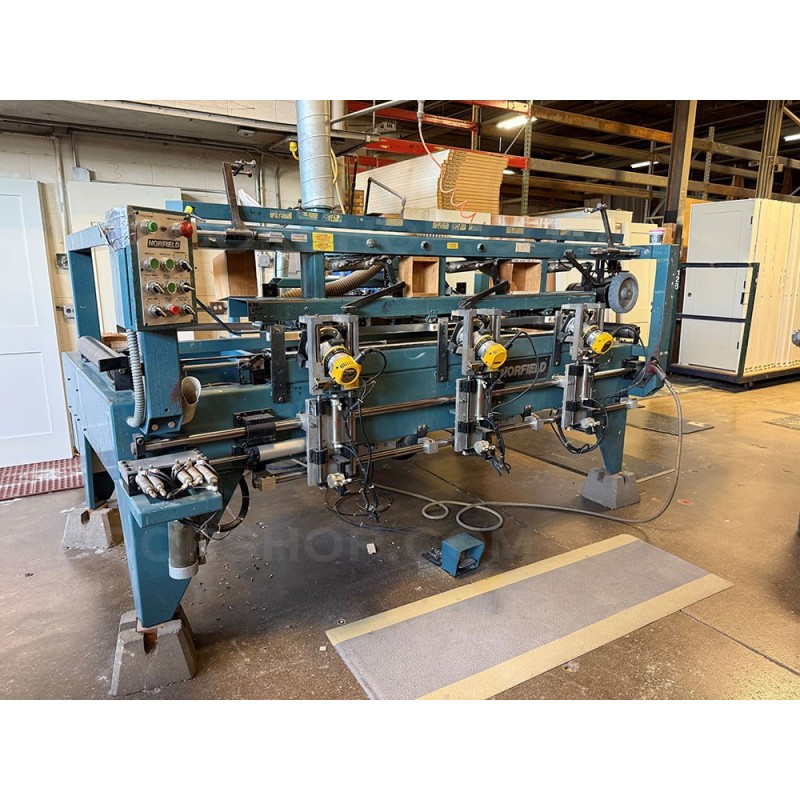

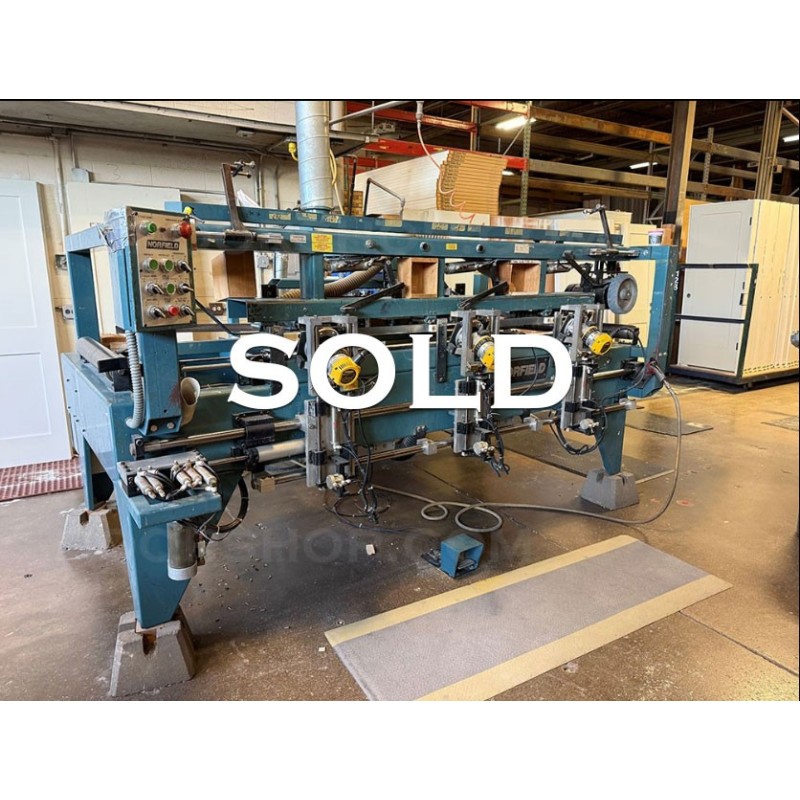

Norfield 4000 Automatic Prehung Door Machine
$18,250
NF10545
Norfield 4000 available for immediate sale. This machine is a work horse. It will run 6’ 8” doors while automatically mortising 2 or 3 hinge pockets on the door and jamb. This machine also does have automatic lock prep including the lock hole, latch hole, and faceplate mortise.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Bottom-up clamping system, which accommodates both interior and exterior doors
- Underside lock drilling enables exit cut viewing for quality control
- Superior dust collecting system
- Chip breaker to achieve crisp clean hinge mortising
- Automatic lock, latch and faceplate machining
- Industrial-grade material and parts for longevity
Specs
| Capabilities | Min | Max |
| Door Width | 1’6” | 3’6” |
| Door Height | 6'6" | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Jamb Width | 2-1/2" | 10-1/2" |
| Jamb Height | 6'6" | 7'0" |
| Jamb Thickness | 1/2" | 1-1/2" |
| Hinge Size | 3-1/2" | 4" std |
| Hinge Radius | - | 5/8" only |
| Lock Backsets | 2-3/8" | 2-3/4" |
| Faceplate Width | 1-1/8" x 2-3/4" | |
| Approx. Shipping Weight | 3,000 lbs | |
| Floor Space | 6'6"W x 9'L x 6' H | |
| Electrical | 230V 1 PH 208/230V 3PH |
|
| Air | 15CFM @ 90PSI | |
NF10545
Data sheet
- Model
- 4000 System
- Manufactured Date
- 1998
- Brand
- Norfield
- Price
- $18,250
- Listing Number
- NF10545
- Serial number
- MC4082
- FOB
- IL
