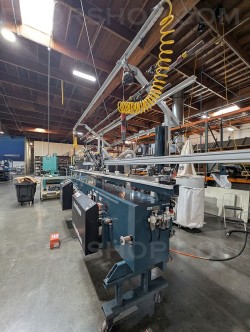

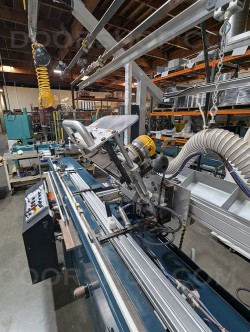

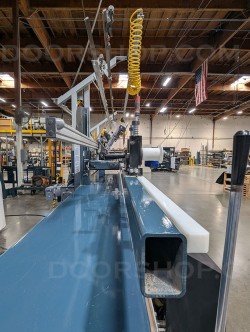

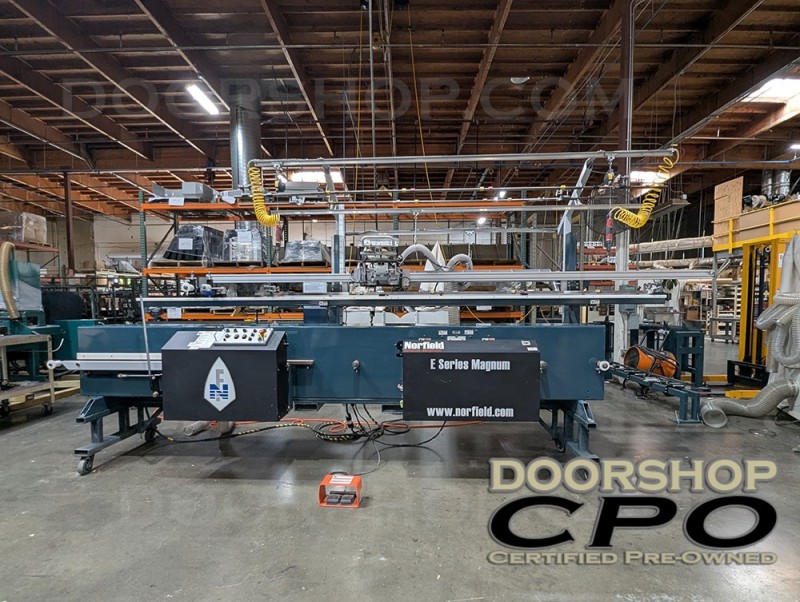

Norfield E Series Magnum Door Machine
$87,800
NF10595C
Produce 75+ prehung doors/day with the industry-standard “Emag”. Famous for its durability, speed, and versatility, the Magnum rapidly processes standard doors, but it’s also excellent for custom configurations with infinite adjustability for hinge/lock locations, door height, and door width. Improving on earlier versions, the E Series automatically machines the lock bore, latch bore, AND faceplate pocket, all without repositioning the door. The result is faster production and simpler operation. The Emag saves even more time with quick change between square and beveled doors, and lock backset. Finally, the standard power-fed door beveller provides even more flexibility. Emag owners enjoy exceptional product support from Norfield. This late model is in excellent condition, carries a 90-day parts warranty, and will sell quickly.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Automatic face plate routing
- Quick change backset
- Quick change 3-1/2 degree hinge mortise
- Bolt on wear surfaces
- Machine doors from 4' to 9' tall and from 1' to 4' wide
- Raised molding compatible
- One 8' (for doors up to 8') and one 9' integrated stop systems for quick change between pre-set hinge patterns
- Partial lock boring for door pulls
- Pneumatic jamb lift adjustment to ensure a perfect fit
- Insert cutters for low cost cutting blade replacement
- Self-centering butt router for easy hinge mortising

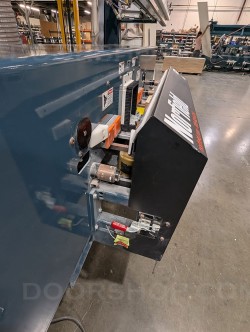

- 3.5° beveler/sizer
- Variable speed power feed allows for soft and hardwood doors
- Infinite door width adjustment
- Power feed wheel bypass
Specs
| Capabilities | Min | Max |
| Door Width | 1'0" | 4'0" |
| Door Height | 4'0" | 9'0" |
| Door Thickness | 1-3/8" | 2-1/4" |
| Jamb Width | 2-1/2" | 10-1/2" |
| Jamb Thickness | 1/2" | 1-5/8" |
| Hinge Size | 3-1/2" | 5" |
| Hinge Radius | 1/4" | 5/8" |
| Lock Backsets | 2-3/8" | 2-3/4" |
| Faceplate Router | up to | 1-1/4" x 2-3/4" |
| Infeed Height | 16" | 20" |
| Outfeed Height | 16" | 20" |
| Approx. Shipping Weight | 4000 lbs | |
| Floor Space | 5'W x 18'L | |

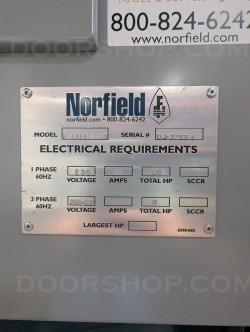

| Electrical | 230V 3 Ph@30 Amps 220V 1 Ph@30 Amps |
|
| Air | 2.2 CFM @ 90 PSI 8.5 CFM @ 90 PSI for manual screwdriver 10 CFM @ 90 PSI for auto screwfeeder or pre-drill |
|
NF10595C
Data sheet
- Model
- E Series Magnum Door Machine
- Manufactured Date
- 2022
- Brand
- Norfield
- Price
- $87,800
- Listing Number
- NF10595C
- Serial number
- DJ3217E
- FOB
- CA
