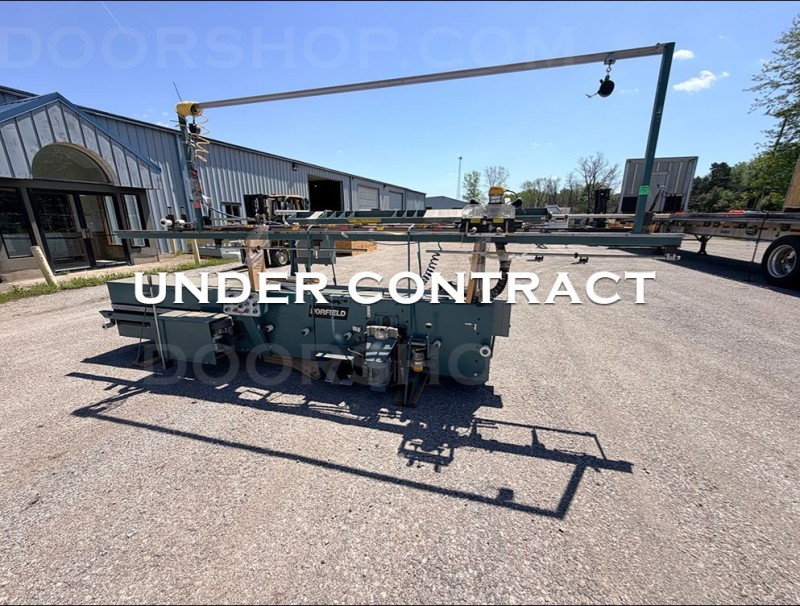

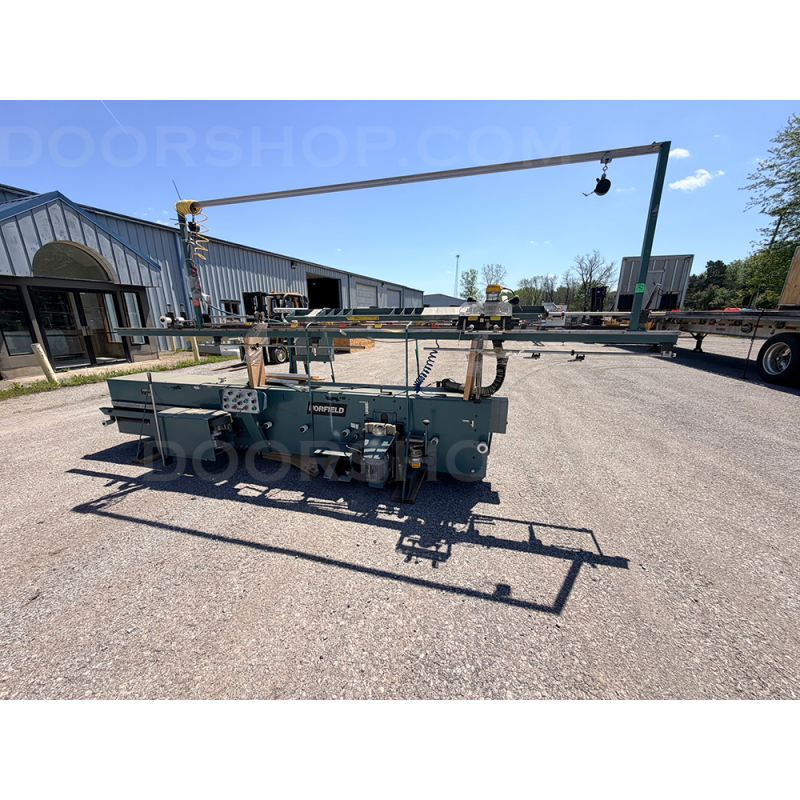

Norfield Magnum Prehung Door Machine
$12,350
NF10585
The Norfield Magnum is the original “door machine”. Simple, reliable, infinitely flexible, and fast. Routs door and jamb for hinges, drills door for lock and latch, and mortises the edge for faceplate. Great for repeated standard doors and custom one-offs. The Magnum also features a power-fed door beveler. Available immediately.
This is a legacy machine that is no longer serviced by the OEM and has limited technical and parts support.
Features
- Integral Sizer-Sander is a proven profit builder as no additional labor is required when sizing and beveling doors
- Joiner type sizer incorporates an adjustable carbide knife cutterhead set a 3-1/2. Cutterhead revolves in a "climb cut" direction virtually eliminating tearout even in fir stile and rail door
- Sander consists of 2 flap type wheels canted 15º to effectively relieve sharp corners left by sizer
- Powerfeed has two 10" non-marking rubber rollers which drive door over sizer and sander at 32 F.P.M standard
- Automatic drill sequence increases production and decreases labor, as drilling occurs while operator mortises for the hinge butts
- Safety interlock prevents collision of lock and latch bits.
- Simultaneous mortising of door and jamb assures precision fit of hinges
Specs
| Capabilities | Min | Max |
| Door Width | 1'6" | 4'0" |
| Door Height | 8'0" | |
| Door Thickness | 1-1/8" | 1-3/4" |
| Jamb Width | 3-1/2" | 10-1/2" |
| Jamb Height | 8'0" | |
| Jamb Thickness | 1/2" | 1-1/8" |
| Butt Size | 3-1/2", 4", 4-1/2", 5" | |
| Butt Spacing | Infinitely variable | |
| Butt Radius | 1/4" and 5/8" | |
| Lock Backsets | 2-3/8" | 5" |
| Faceplate Router | up to | 1-1/8" x 2-3/4" |
| Approx. Shipping Weight | 2,600 lbs | |
| Floor Space | 5' x 18' | |
| Electrical | 230v 3 60hz. 50AMP and 230V 1 60HZ 30 AMP STD | |
| Air | 2.2CFM @90PSI, 8.5CFM@90PSI | |
NF10585
Data sheet
- Model
- Magnum Prehung Door Machine
- Manufactured Date
- 1988
- Brand
- Norfield
- Price
- $12,350
- Listing Number
- NF10585
- Serial number
- DJ1472M
- FOB
- OH
