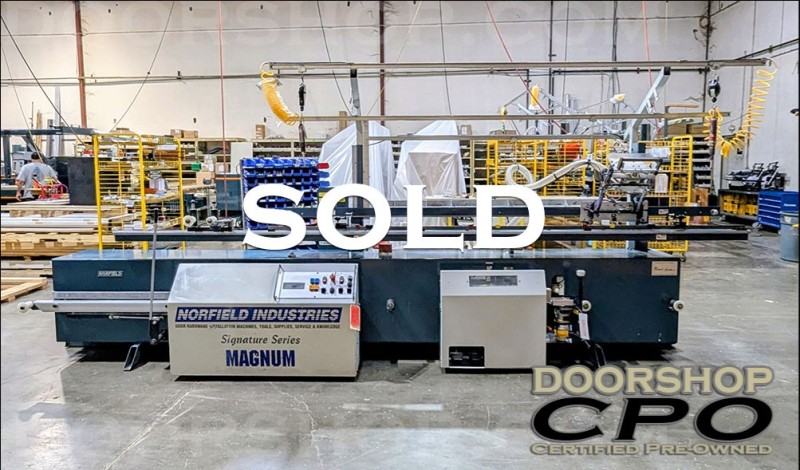

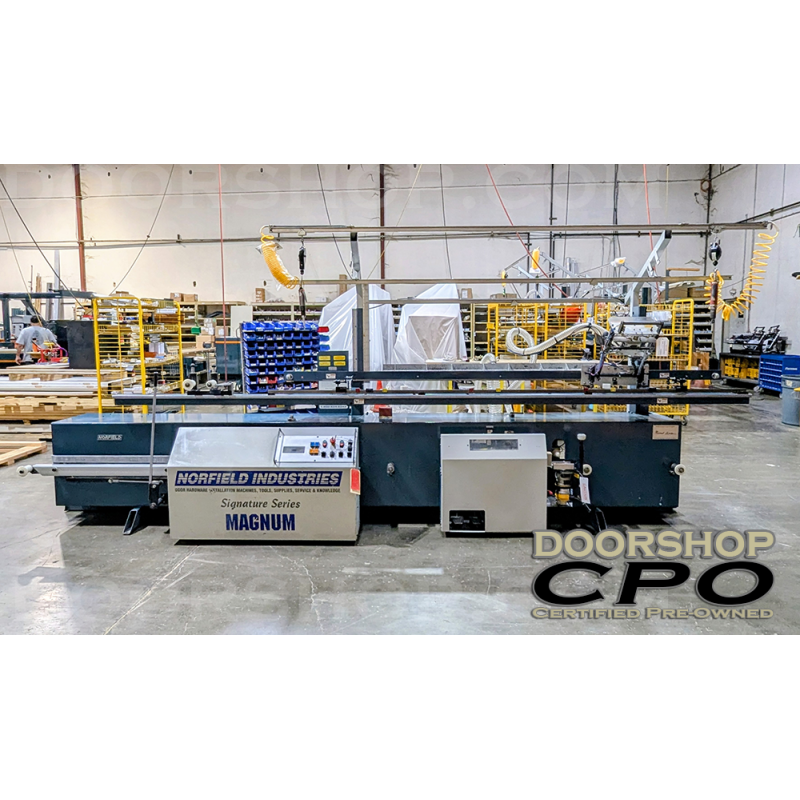

Norfield Signature Series Magnum Prehung Door Machine
$58,217
NF10586C
This is the most sought-after machine on the market: the legendary “Sig Mag”. Known for exceptional reliability, the Magnum is both fast (for standard doors) and versatile (for custom doors). Using the built-in hinge router, the operator mortises the door and hinge jamb in about 30 seconds, while the Mag automatically drills the lock and latch holes. The operator grasps a convenient handle to quickly rout for the faceplate. Typical output is a door every 2-3 minutes. The Magnum also features a power-fed door beveller. This example has been reconditioned and carries a 90-day parts warranty. Includes two index bars. Available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Integral Sizer-Sander is a proven profit builder as no additional labor is required when sizing and beveling doors
- Joiner type sizer incorporates an adjustable carbide knife cutterhead set a 3-1/2. Cutterhead revolves in a "climb cut" direction virtually eliminating tear out even in fir stile and rail door
- Sander consists of 2 flap type wheels canted 15º to effectively relieve sharp corners left by sizer
- Powerfeed has two 10" non-marking rubber rollers which drive door over sizer and sander at 32 F.P.M standard
- Automatic drill sequence increases production and decreases labor, as drilling occurs while operator mortises for the hinge butts
- Safety interlock prevents collision of lock and latch bits.
- Simultaneous mortising of door and jamb assures precision fit of hinges
Specs
| Capabilities | Min | Max |
| Door Width | 1'6" | 4'0" |
| Door Height | 8'0" | |
| Door Thickness | 1-1/8" | 2-1/4" |
| Jamb Width | 3-1/2" | 10-1/2" |
| Jamb Height | 8'0" | |
| Jamb Thickness | 1/2" | 1-1/8" |
| Butt Size | 3-1/2", 4", 4-1/2", 5" | |
| Butt Spacing | Infinitely variable | |
| Butt Radius | 1/4" and 5/8" | |
| Lock Backsets | 2-3/8" | 5" |
| Faceplate Router | up to | 1-1/8" x 2-3/4" |
| Approx. Shipping Weight | 2,600 lbs | |
| Floor Space | 5' x 18' | |
| Electrical | 230V 1 phase, 460V 3Phase, (Can be converted to 230V) | |
| Air | 2.2CFM @90PSI, 8.5CFM@90PSI | |
NF10586C
Data sheet
- Model
- Signature Series Magnum
- Manufactured Date
- 2003
- Brand
- Norfield
- Price
- $58,217
- Listing Number
- NF10586C
- Serial number
- DJ2515-95
- FOB
- CA
