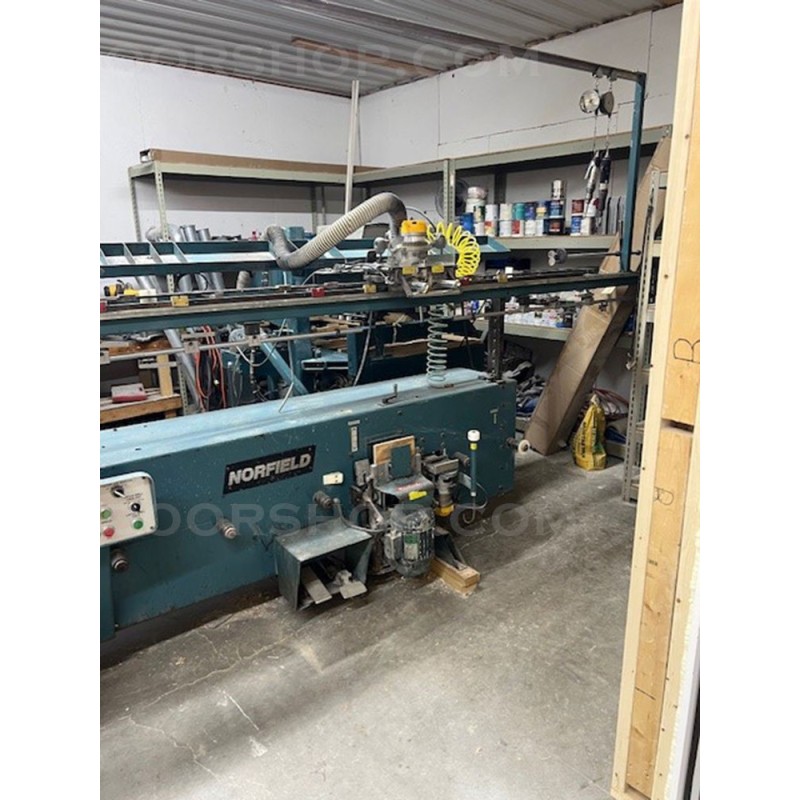

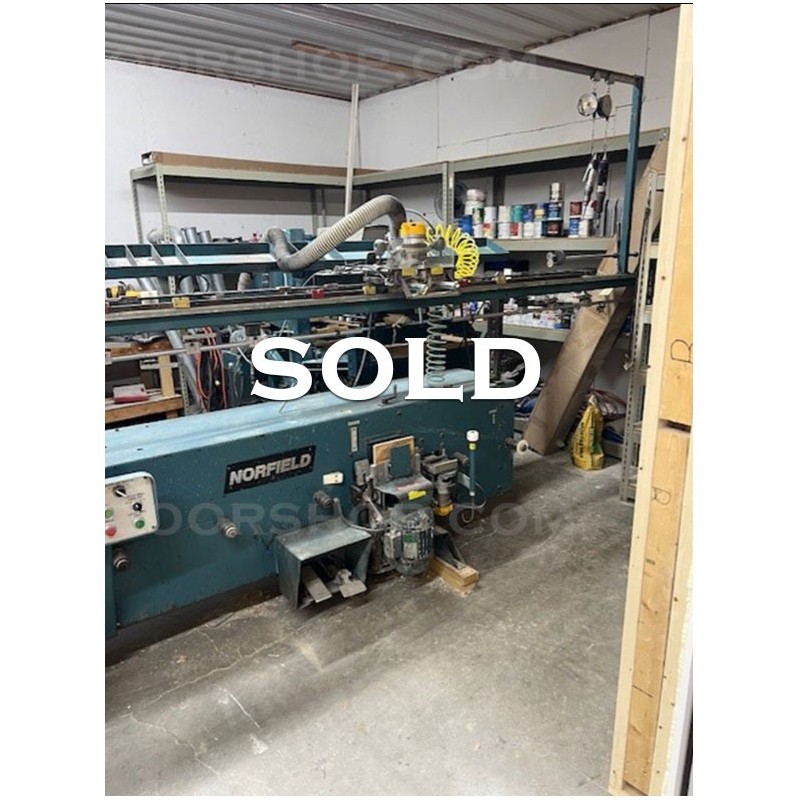

Norfield Magnum Prehung Door Machine w/Full House Strike Router
$16,700
NF10572
This complete package gets you into the prehung door business. The legendary 8’-capable Magnum mortises door and jamb for hinges, and preps the door for lock, latch, and faceplate. This machine also features a power-fed door beveler, and includes a late-model dust collector (required to operate machine.) Included with the Magnum is a Full House Strike Jamb Routing Machine. Available for immediate sale.
This is a legacy machine that is no longer serviced by the OEM and has limited technical and parts support.
Features
- Integral Sizer-Sander is a proven profit builder as no additional labor is required when sizing and beveling doors
- Joiner type sizer incorporates an adjustable carbide knife cutterhead set a 3-1/2. Cutterhead revolves in a "climb cut" direction virtually eliminating tearout even in fir stile and rail door
- Sander consists of 2 flap type wheels canted 15º to effectively relieve sharp corners left by sizer
- Powerfeed has two 10" non-marking rubber rollers which drive door over sizer and sander at 32 F.P.M standard
- Automatic drill sequence increases production and decreases labor, as drilling occurs while operator mortises for the hinge butts
- Safety interlock prevents collision of lock and latch bits.
- Simultaneous mortising of door and jamb assures precision fit of hinges
Specs
| Capabilities | Min | Max |
| Door Width | 1'6" | 4'0" |
| Door Height | 8'0" | |
| Door Thickness | 1-1/8" | 1-3/4" |
| Jamb Width | 3-1/2" | 10-1/2" |
| Jamb Height | 8'0" | |
| Jamb Thickness | 1/2" | 1-1/8" |
| Butt Size | 3-1/2", 4", 4-1/2", 5" | |
| Butt Spacing | Infinitely variable | |
| Butt Radius | 1/4" and 5/8" | |
| Lock Backsets | 2-3/8" | 5" |
| Faceplate Router | up to | 1-1/8" x 2-3/4" |
| Approx. Shipping Weight | 2,600 lbs | |
| Floor Space | 5' x 18' | |
| Electrical | 230v 3 60hz. 50AMP and 230V 1 60HZ 30 AMP STD | |
| Air | 2.2CFM @90PSI, 8.5CFM@90PSI | |
NF10572
Data sheet
- Model
- Magnum Prehung Door Machine, Full House Strike Router
- Manufactured Date
- 1990
- Brand
- Norfield
- Price
- $16,700
- Listing Number
- NF10572
- Serial number
- DJ1809M, SR62703
- FOB
- NY
