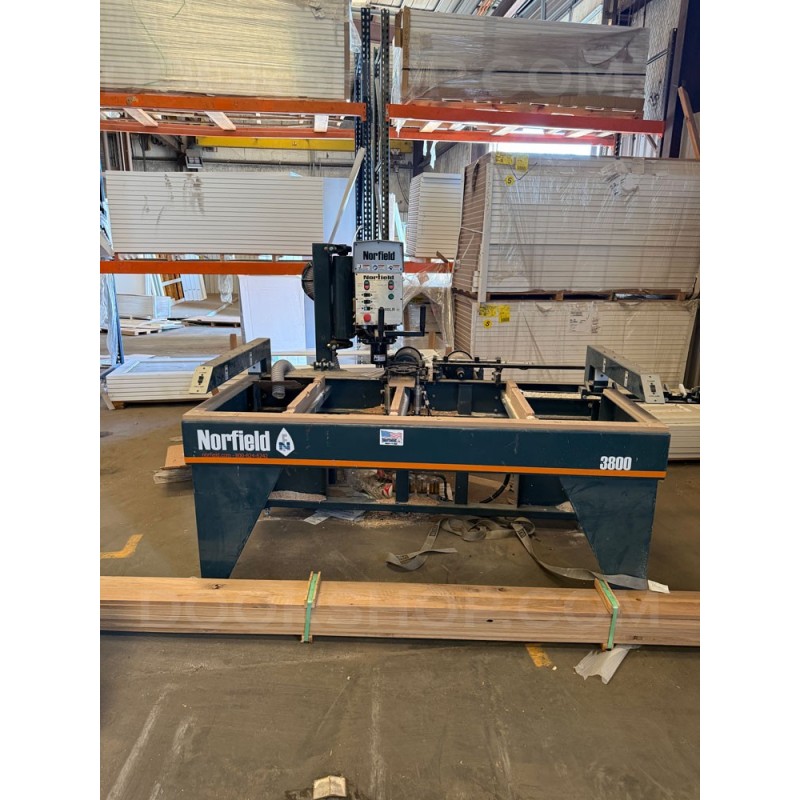

Norfield 3800LR Door Lite Machine
$39,400
NF10601
Norfield 3800LR Door Lite Machine available for immediate sale. The 3800LR utilizes a template based process for cutting door lites and also includes latch drilling and faceplate routing. This machine will help reduce inventory on exterior doors and control the quality of the finished product. Ideal for any size door shop.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Eight location clamping system provides a firm grip on the door
- Adjustable RPM speed control accommodates both wood and metal door cutting
- Industrial air filter, lubricator and regulator for long life
- Three location clamping actuation
- Neoprene clamp pads that protect the material from marring
- Quick-change for 2-3/8" to 2-3/4" backsets
Specs
| Capabilities | Min | Max |
| Door Width | 3'0" | |
| Door Height | up to | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Lockbore Size | 1-1/2" | 2-1/8" |
| Lock Backset | 2-3/8" | 2-3/4" |
| Faceplate Width | up to | 1-1/8" |
| Faceplate Length | up | 2-1/2" |
| Approx. Shipping Weight | 2,000 lbs | |

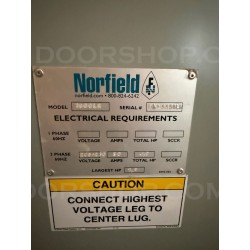

| Electrical | 208V 60Hz 230V 60Hz |
|
| Air | 3CFM @ 90PSI | |
NF10601
Data sheet
- Model
- 3800
- Manufactured Date
- 2023
- Brand
- Norfield
- Price
- $39,400
- Listing Number
- NF10601
- Serial number
- DL4451LR
- FOB
- TX
