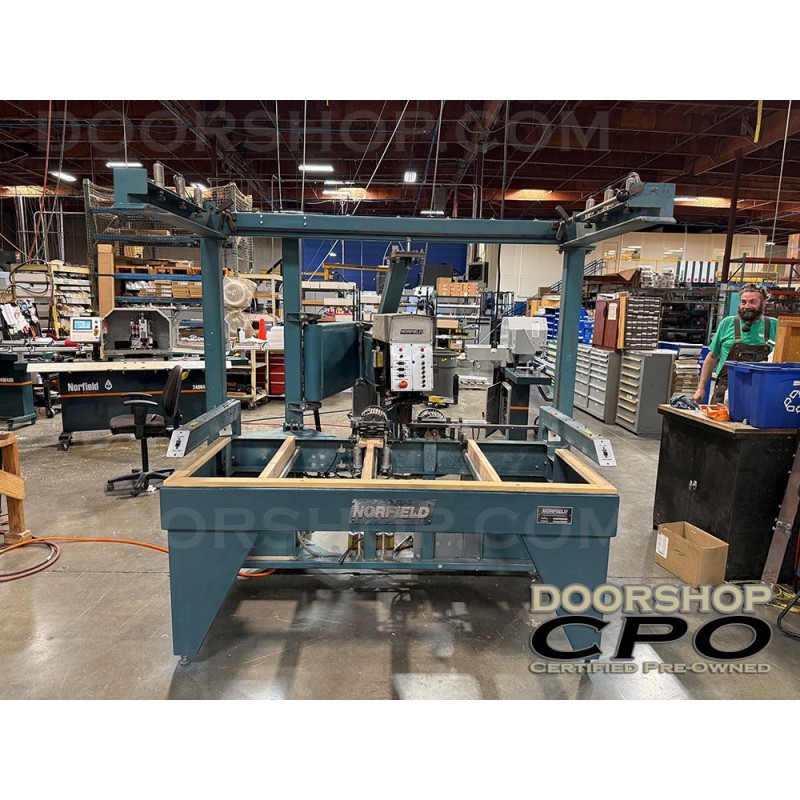

Norfield 3800LRO Door Lite Cutter with Edge Prep and Overhead Template Holder
$29,317
NF10596C
Reduce inventory cost and increase profit margin with the 3800. The 3800 quickly and safely cuts out door lite openings in exterior doors, so no more carrying expensive pre-cut door inventory – just cut them out yourself as needed. The “LR” indicates this example also features powered latch drilling and faceplate mortising, further saving time and inventory. And the “O” means virtually no templates required for rectangular lite shapes – the Overhead Template stays in the machine: less material handling and motion = faster and safer production. This machine reconditioned by Norfield and carries a 90-day parts warranty.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Eight location clamping system provides a firm grip on the door
- Adjustable RPM speed control accommodates both wood and metal door cutting
- Industrial air filter, lubricator and regulator for long life
- Three location clamping actuation
- Neoprene clamp pads that protect the material from marring
- Quick-change for 2-3/8" to 2-3/4" backsets
Specs
| Capabilities | Min | Max |
| Door Width | 3'0" | |
| Door Height | up to | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Lockbore Size | 1-1/2" | 2-1/8" |
| Lock Backset | 2-3/8" | 2-3/4" |
| Faceplate Width | up to | 1-1/8" |
| Faceplate Length | up | 2-1/2" |
| Approx. Shipping Weight | 2,000 lbs | |
| Electrical | 208V 60Hz 230V 60Hz |
|
| Air | 3CFM @ 90PSI | |
NF10596C
Data sheet
- Model
- 3800LRO Door Lite Cutter with Edge Prep and Overhead Template Holder
- Manufactured Date
- 1990
- Brand
- Norfield
- Price
- $29,317
- Listing Number
- NF10596C
- Serial number
- DL4108LROHT
- FOB
- CA
