- Just Added

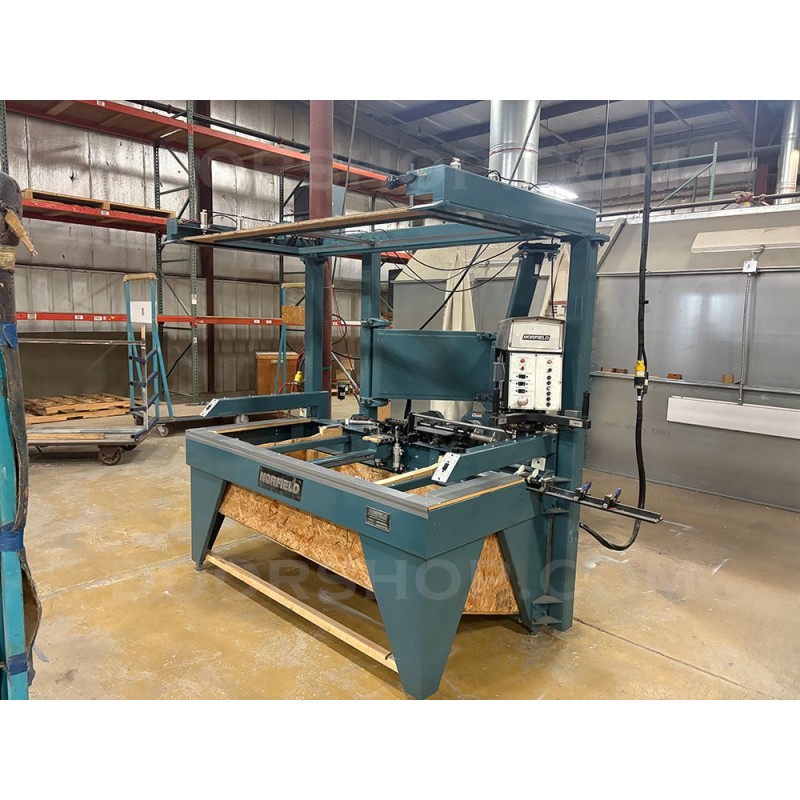

Norfield 3800LRO Door Lite Cutter with Edge Prep
$25,000
NF10566
Norfield 3800LR Door Lite Machine available for immediate sale. The 3800LR includes an overhead template to eliminate the need for plywood templates when cutting 22’ x 36” & 22” 64” half and full lites. All other patterns require wood templates. This machine also includes the very desirable latch drilling and faceplate routing functionality. This unit is in good condition and very clean. Ideal for any size door shop.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Eight location clamping system provides a firm grip on the door
- Adjustable RPM speed control accommodates both wood and metal door cutting
- Industrial air filter, lubricator and regulator for long life
- Three location clamping actuation
- Neoprene clamp pads that protect the material from marring
- Quick-change for 2-3/8" to 2-3/4" backsets
Specs
| Capabilities | Min | Max |
| Door Width | 3'0" | |
| Door Height | up to | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Lockbore Size | 1-1/2" | 2-1/8" |
| Lock Backset | 2-3/8" | 2-3/4" |
| Faceplate Width | up to | 1-1/8" |
| Faceplate Length | up | 2-1/2" |
| Approx. Shipping Weight | 2,000 lbs | |
| Electrical | 208V 60Hz 230V 60Hz |
|
| Air | 3CFM @ 90PSI | |
NF10566
Data sheet
- Model
- 3800 LR
- Manufactured Date
- 1986
- Brand
- Norfield
- Price
- $25,000
- Listing Number
- NF10566
- Serial number
- DL3997LR
- FOB
- SD
