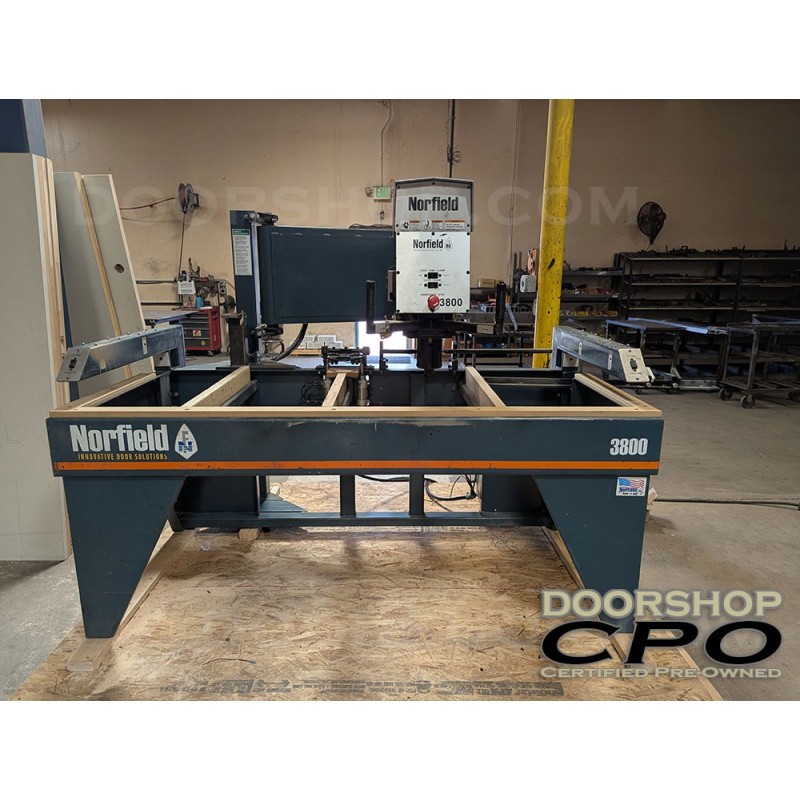

Norfield 3800L Door Lite Cutter
$21,286
NF10530C
The 3800 Door Lite Cutting Machine has been engineered for years of template-driven use. Cut any shape up to full lite cutout for 3’0” wide doors. The eight locations clamping system provides a firm grip on the door; adjustable RPM speed control accommodates both wood and metal cutting; includes an industrial air filter, lubricator and regulator for long life; neoprene clamp pads that protect material from marring; and three location clamping actuation. This machine was serviced by a Norfield Technician, including a new transformer. Listed pricing includes a 90-day parts warranty.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Eight location clamping system provides a firm grip on the door
- Adjustable RPM speed control accommodates both wood and metal door cutting
- Industrial air filter, lubricator and regulator for long life
- Three location clamping actuation
- Neoprene clamp pads that protect the material from marring
- Quick-change for 2-3/8" to 2-3/4" backsets
Specs
| Capabilities | Min | Max |
| Door Width | 3'0" | |
| Door Height | up to | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Lockbore Size | 1-1/2" | 2-1/8" |
| Lock Backset | 2-3/8" | 2-3/4" |
| Faceplate Width | up to | 1-1/8" |
| Faceplate Length | up | 2-1/2" |
| Approx. Shipping Weight | 2,000 lbs | |
| Electrical | 208V 60Hz 230V 60Hz |
|
| Air | 3CFM @ 90PSI | |
NF10530C
Data sheet
- Model
- 3800
- Manufactured Date
- 2016
- Brand
- Norfield
- Price
- $21,286
- Listing Number
- NF10530C
- Serial number
- DL-4426
- FOB
- CA
