- -$11,000
Norfield 4000 System
$39,000
$28,000
Save $11,000
NF10560

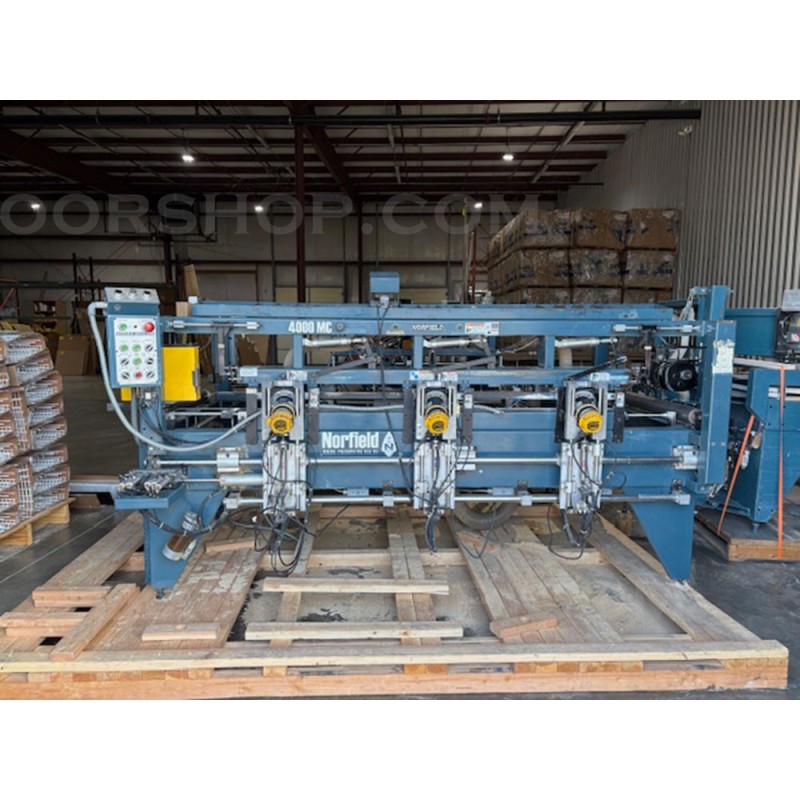

Norfield 4000 System available for immediate sale. The 4000 System includes the 4200 Door Loader, 4000 Machining Center and the 4100 Assembly Station. This line was designed to prehang 6’-8” doors quickly with production levels of up to 250 doors per shift. Just removed from service and ready to go.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Bottom-up clamping system, which accommodates both interior and exterior doors
- Underside lock drilling enables exit cut viewing for quality control
- Superior dust collecting system
- Chip breaker to achieve crisp clean hinge mortising
- Automatic lock, latch and faceplate machining
- Industrial-grade material and parts for longevity
Specs
| Capabilities | Min | Max |
| Door Width | 1’6” | 3’6” |
| Door Height | 6'6" | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Jamb Width | 2-1/2" | 10-1/2" |
| Jamb Height | 6'6" | 7'0" |
| Jamb Thickness | 1/2" | 1-1/2" |
| Hinge Size | 3-1/2" | 4" std |
| Hinge Radius | - | 5/8" only |
| Lock Backsets | 2-3/8" | 2-3/4" |
| Faceplate Width | 1-1/8" x 2-3/4" | |
| Approx. Shipping Weight | 3,000 lbs | |
| Floor Space | 6'6"W x 9'L x 6' H | |
| Electrical | 230V 1 PH 208/230V 3PH |
|
| Air | 15CFM @ 90PSI | |
NF10560
Data sheet
- Model
- 4000 System
- Manufactured Date
- 2006
- Brand
- Norfield
- Price
- $28,000
- Listing Number
- NF10560
- Serial number
- MC4115, AS4621, LM4308
- FOB
- MO
