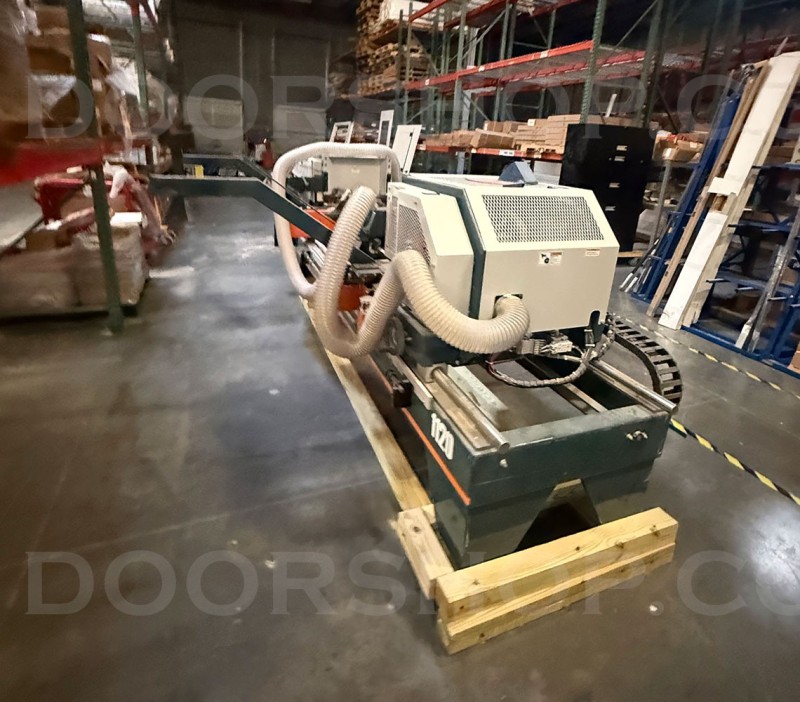

Norfield 1120 Automatic Casing Saw
$42,450
NF10590
Churn out casing legs and heads quickly and precisely with the 1120. This fully automated machine features hopper feed, enabling super-fast output of 20-25 ppm. Length and angle changes are quick and simple due to powered angulation and preset stops. Excellent product support from Norfield. Available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Top-down saw stroke
- Pre-set length adjustment
- Foot pedal cycle start/stop
- Powered angle adjustment
- Standard dust collection shrouding
- Easy-load hopper feed
- Saw brakes
- Flow-through design
Options
- Dust collection vacuum
Specifications
| Materials | Casing or brickmould | |
| Door heights | up to 8-0 | |
| Door width | down to 1-6 | |
| Material width | 1" to 4-1/2" | |
| Material thickness | 3/8" to 1-1/2" | |
| Undercut/Sill cut angle | 0° to 10° | |
| Typical cycle | 25 ppm | |
| Approx. Shipping Weight | 2400 lbs | |
| Floor Space | 8' x 16' | |
| Electrical | 208/230 VAC-3Ø-60 HZ-30amp | |
| Air | 20CFM @ 90psi | |
NF10590
Data sheet
- Model
- 1120 Automatic Casing Saw
- Manufactured Date
- 2023
- Brand
- Norfield
- Price
- $42,450
- Listing Number
- NF10590
- Serial number
- 1120-46
- FOB
- NC
