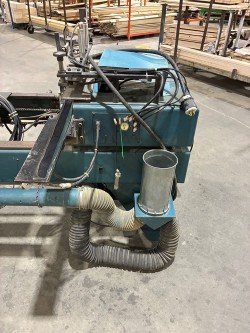

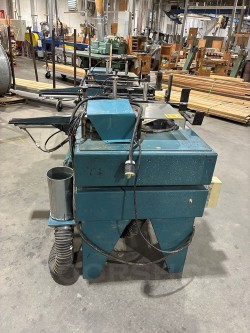

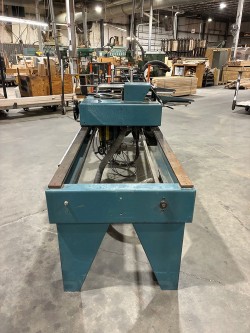

Norfield 1020 Automatic Casing Saw
$9,300
NF10588
Produce casing legs and heads fast and accurately with the Norfield 1020. Hopper feed and automatic cycle result in high output: 20+ pieces per minute. Also very important – the 1020 is far safer than a chop saw. Just fill the material hopper and the machine does the rest, including ejection from the rear into a bin. Available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Hopper feeding for ease of use
- Compound angle adjustments for variety of cuts
- Industrial-quality 60-tooth carbide-tipped 10" saw blade
- Adjustment switch for changing from 45° to 90° with ease
Options
- Kerfing of case
- Dust collection system with vacuum
- Dust collection system without vacuum
Specifications
| Casing Material | Min | Max |
| Width | up to 3-1/2" | |
| Length | 1'6" | 8'0" |
| Thickness | 3/8" | 1-1/2" |
| Min | Max | |
| Compound Angle | 0° | 10° |
| Angle of Cut | 90° | 45° |
| Max. Capacity | 30 cycles per min | |
| Avg. Capacity | 24 cycles per min | |
| Approx. Shipping Weight | 1,600 lbs | |
| Floor Space | 6' x 14' | |
| Electrical | 230V 60Hz @ 15AMP 208V 3Phase @ 60HZ 15 Amp 460V 3Phase @ 60HZ 10 Amp 115V Single Phase@ 20 Amps |
|
| Air | 22CFM @ 90PSI (1/2" I.D. min. line size) |
|
NF10588
Data sheet
- Model
- 1020 Automatic Casing Saw
- Manufactured Date
- 1997
- Brand
- Norfield
- Price
- $9,300
- Listing Number
- NF10588
- Serial number
- TS1792
- FOB
- NC
