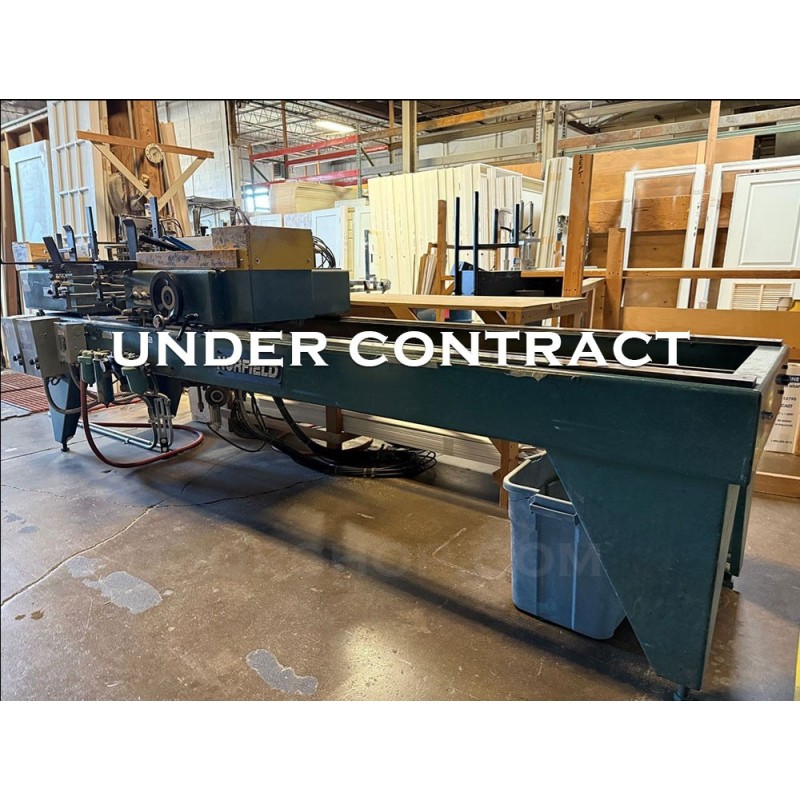

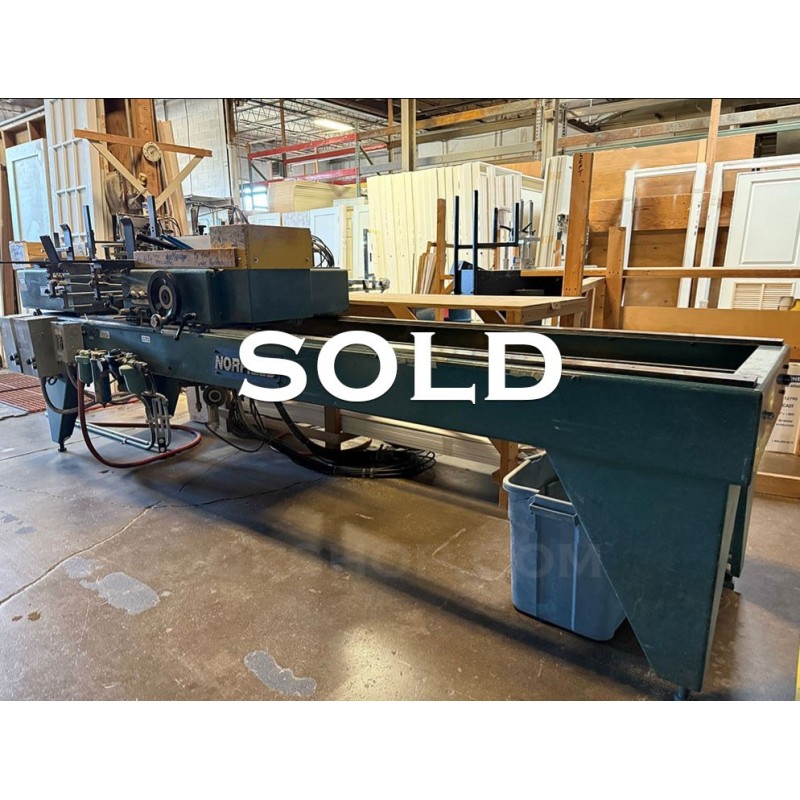

Norfield 1020 Automatic Casing Saw
$4,750
NF10544
Norfield 1020 Trim Saw available for immediate sale. The Norfield 1020 is capable of cutting casing legs and heads up to 3-1/2” wide and up to 25 pieces per minute. Ideal for medium to high volume door shops.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Hopper feeding for ease of use
- Compound angle adjustments for variety of cuts
- Industrial-quality 60-tooth carbide-tipped 10" saw blade
- Adjustment switch for changing from 45° to 90° with ease
Options
- Kerfing of case
- Dust collection system with vacuum
- Dust collection system without vacuum
Specifications
| Casing Material | Min | Max |
| Width | up to 3-1/2" | |
| Length | 1'6" | 8'0" |
| Thickness | 3/8" | 1-1/2" |
| Min | Max | |
| Compound Angle | 0° | 10° |
| Angle of Cut | 90° | 45° |
| Max. Capacity | 30 cycles per min | |
| Avg. Capacity | 24 cycles per min | |
| Approx. Shipping Weight | 1,600 lbs | |
| Floor Space | 6' x 14' | |
| Electrical | 230V 60Hz @ 15AMP 208V 3Phase @ 60HZ 15 Amp 460V 3Phase @ 60HZ 10 Amp 115V Single Phase@ 20 Amps |
|
| Air | 22CFM @ 90PSI (1/2" I.D. min. line size) |
|
NF10544
Data sheet
- Model
- 1020
- Manufactured Date
- 1989
- Brand
- Norfield
- Price
- $4750
- Serial number
- TS1706k
- Listing Number
- NF10544
- FOB
- IL
