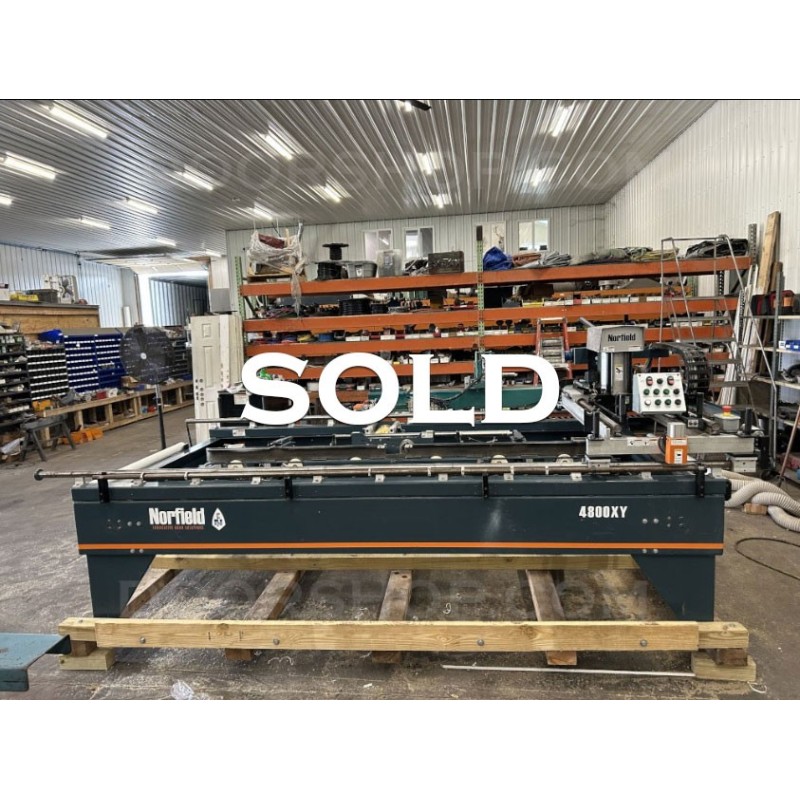

Norfield 4800XY Door Lite Cutter with Edge Prep
$48,850
NF10555
Save time and money with this very nice Norfield 4800. No templates required for any rectangular lite shapes; just insert the door and start cutting. The horizontal workflow design increases throughput speed compared to swing-arm machines. This example also includes the optional automatic latch drill and faceplate mortisor, which can be cycled during lite cutting for increased efficiency. 8’ capable; two speed head for processing wood, steel, and fiberglass. Excellent product support available from Norfield.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- XY controls eliminate the need for templates when cutting square or rectangle door lites
- Template holder for round or oval door lites
- Adjustable RPM speed control accommodates both wood/fiberglass and metal cutting
- Industrial air filter, lubricator and regulator for long life
- Oscillating quill for greater bit life
Options
- Automated edge preparation
- Waste bin
- Dust collection systems
- Spare parts and extra bit packages
- Additional index bars
- 4'0" door width capability
Specifications
| Capabilities | Min | Max |
| Door Width | 10" | 3'6" |
| Door Height | up to | 8'0" |
| Door Thickness | 1-3/8" | 2-1/4" |
| Lockbore Size | 1-1/2" | 2-1/8" |
| Lock Backset | 2-3/8" | 2-3/4" |
| Faceplate Width | up to | 1-1/8" |
| Faceplate Length | up | 2-3/4" |
| Approx. Shipping Weight | 3,000 lbs | |
| Electrical | 208V 60Hz 230V 60Hz |
|
| Air | 5CFM @ 90PSI | |
| Machine working height | 40" | |
| Floor space measurements | 12’5”L x 7’3”W x 6’2”H | |
NF10555
Data sheet
- Model
- 4800XY Door Lite Cutter
- Manufactured Date
- 2017
- Brand
- Norfield
- Price
- $48,850
- Serial number
- XY0012
- Listing Number
- NF10555
- FOB
- OH
