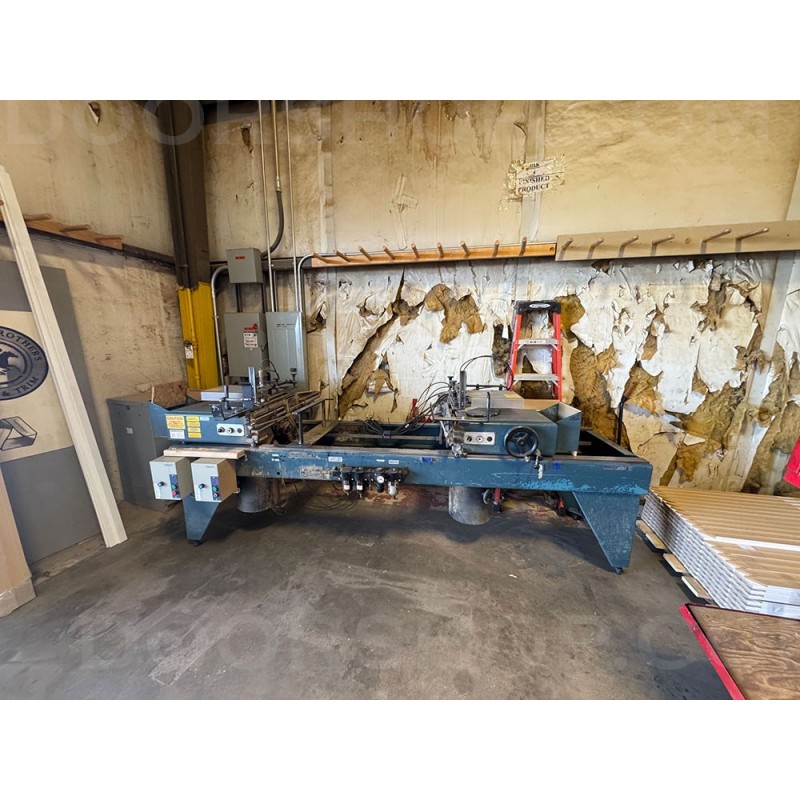

Norfield 1020 Trim Saw

$2,500

NF10538

Norfield 1020 Trim Saw available for immediate sale. The Norfield 1020 is capable of cutting casing legs and heads up to 3-1/2” wide and up to 25 pieces per minute. Ideal for medium to high volume door shops.

When purchasing any used machine, consult your doorshop sales person about OEM technical support.

Standard features

  • Hopper feeding for ease of use
  • Compound angle adjustments for variety of cuts
  • Industrial-quality 60-tooth carbide-tipped 10" saw blade
  • Adjustment switch for changing from 45° to 90° with ease

Options

  • Kerfing of case
  • Dust collection system with vacuum
  • Dust collection system without vacuum

Specifications

Casing Material Min Max
Width up to 3-1/2"
Length 1'6" 8'0"
Thickness 3/8" 1-1/2"
  Min Max
Compound Angle 10°
Angle of Cut 90° 45°
Max. Capacity 30 cycles per min
Avg. Capacity 24 cycles per min
Approx. Shipping Weight 1,600 lbs
Floor Space 6' x 14'
Electrical 230V 60Hz @ 15AMP
208V 3Phase @ 60HZ 15 Amp
460V 3Phase @ 60HZ 10 Amp
115V Single Phase@ 20 Amps
Air 22CFM @ 90PSI
(1/2" I.D. min. line size)
NF10538

Data sheet

Model
1020 Trim Saw
Manufactured Date
1989
Brand
Norfield
Price
$2500
Listing Number
NF10538
Serial number
TS1055KR79
FOB
AZ
