FH10081

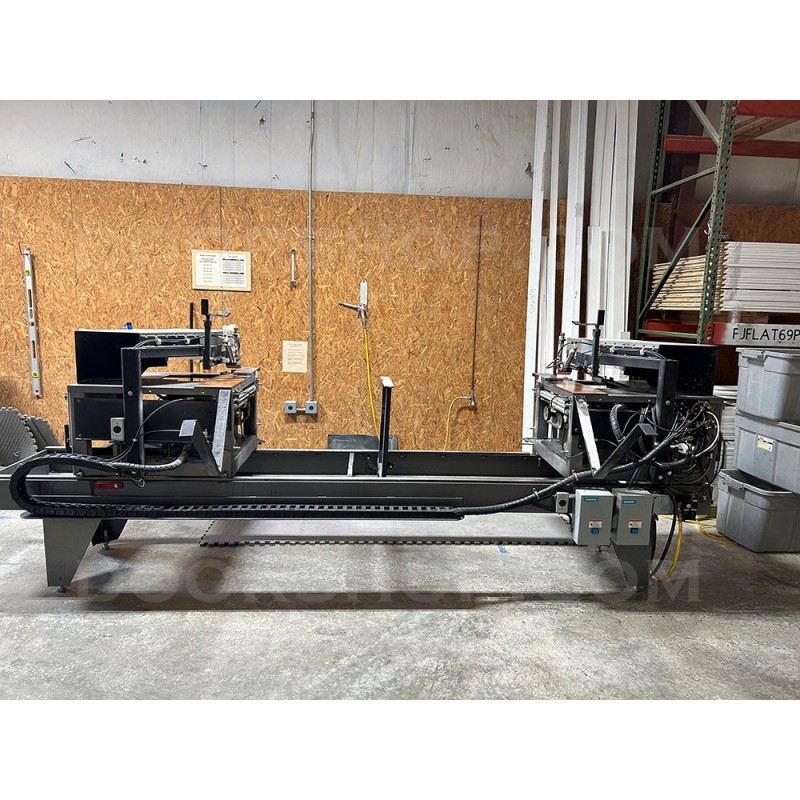

Make short work of casing legs and heads with the Trimmer. This double-ended saw automatically cuts both ends, then ejects the piece to the rear, which enables fast throughput, such as 10-15 ppm. Quick and simple change-overs for length and angles. Available for immediate shipment.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Capabilities | Min | Max |
Material | Casing, jambs, door stop, brickmold | |
Height | 18" | 98" |
Width - mitered | Up to 4-1/2" | |
Width - Straight | Up to 7-1/4" | |
Thickness | Up to 1-1/2" | |
Electrical | 230V 3 Phase & 230V 1 Phase | |
CFM | 4.5 at 100 PSI | |
Machine Size | 12' L x 3' W x 3'-6"' T | |
Weight | 1500 lbs |
