1020 Automatic Double End Trim Saw
$5,120
NF10593

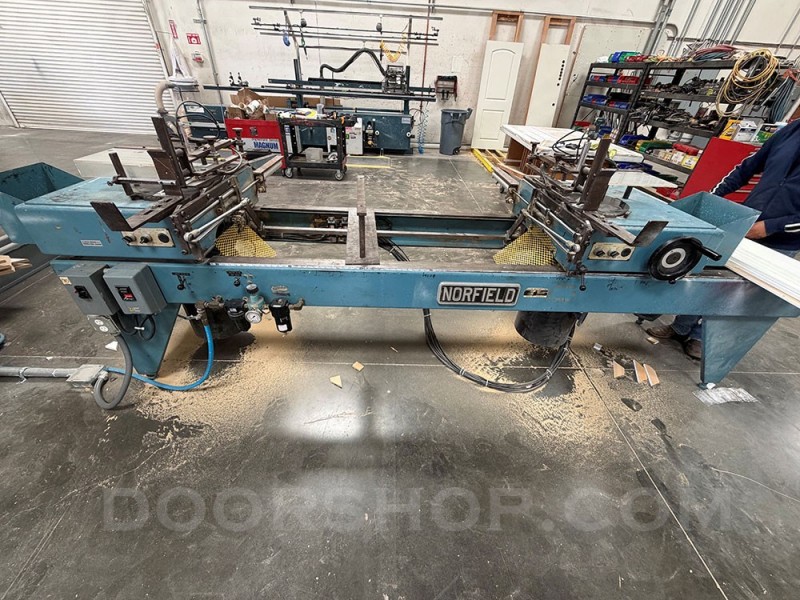

Norfield 1020 Trim Saw available for immediate sale. This machine is designed to miter casing/trim up to 3-1/2” wide and up to 25 pieces per minute. Ideal for any size door shop. Machine was recently serviced and was actively in use until upgraded.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Hopper feeding for ease of use
- Compound angle adjustments for variety of cuts
- Industrial-quality 60-tooth carbide-tipped 10" saw blade
- Adjustment switch for changing from 45° to 90° with ease
Options
- Kerfing of case
- Dust collection system with vacuum
- Dust collection system without vacuum
Specifications
| Casing Material | Min | Max |
| Width | up to 3-1/2" | |
| Length | 1'6" | 8'0" |
| Thickness | 3/8" | 1-1/2" |
| Min | Max | |
| Compound Angle | 0° | 10° |
| Angle of Cut | 90° | 45° |
| Max. Capacity | 30 cycles per min | |
| Avg. Capacity | 24 cycles per min | |
| Approx. Shipping Weight | 1,600 lbs | |
| Floor Space | 6' x 14' | |
| Electrical | 230V 60Hz @ 15AMP 208V 3Phase @ 60HZ 15 Amp 460V 3Phase @ 60HZ 10 Amp 115V Single Phase@ 20 Amps |
|
| Air | 22CFM @ 90PSI (1/2" I.D. min. line size) |
|
NF10593
Data sheet
- Model
- 1020 Automatic Double End Trim Saw
- Manufactured Date
- 1979
- Brand
- Norfield
- Price
- $5,120
- Listing Number
- NF10593
- Serial number
- TS1393
- FOB
- CA
