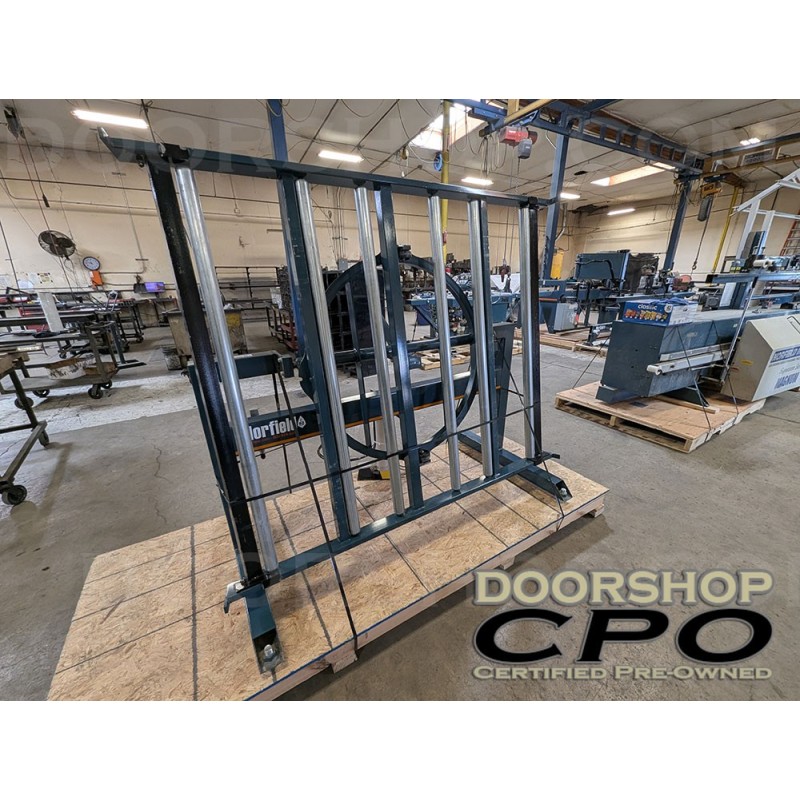

Norfield 360S Rotating Outfeed Tilt Table
$4,810
NF10576C
The 360S speeds up door production while also improving safety. Position the 360 at the end of a door line. When a completed unit arrives bottom first, just touch a pedal to tilt the unit to near vertical where it can be safely removed from the line. If the unit comes out head first, the “lazy Susan”-style table top freely rotates 180 degrees, and then tilts the unit to vertical for easy off-loading. This late model example is in excellent condition and available immediately.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Foot pedal activation
- Rotates 360°
- Tilts from 0° horizontal to
80° vertical - Will maneuver a 200 lb. door
easily and smoothly - Rollers glide material into
place - Heavy duty construction
Specifications
| Capabilities | Min | Max | |
| Door Width | 1'0" | 3'6" | |
| Door Height | up to | 8'0" | |
| Infeed height at horizontal position | 40" | ||
| Approx. Shipping Weight | 400 lbs | ||
| Floor Space | 9' | ||
| Air | 1 CFM @ 90PSI | ||
NF10576C
Data sheet
- Model
- 360S
- Manufactured Date
- 2023
- Brand
- Norfield
- Price
- $4,810
- Listing Number
- NF10576C
- Serial number
- UE0158
- FOB
- CA
