Norfield 530SA Automatic Door Loader

$69,790

NF10534

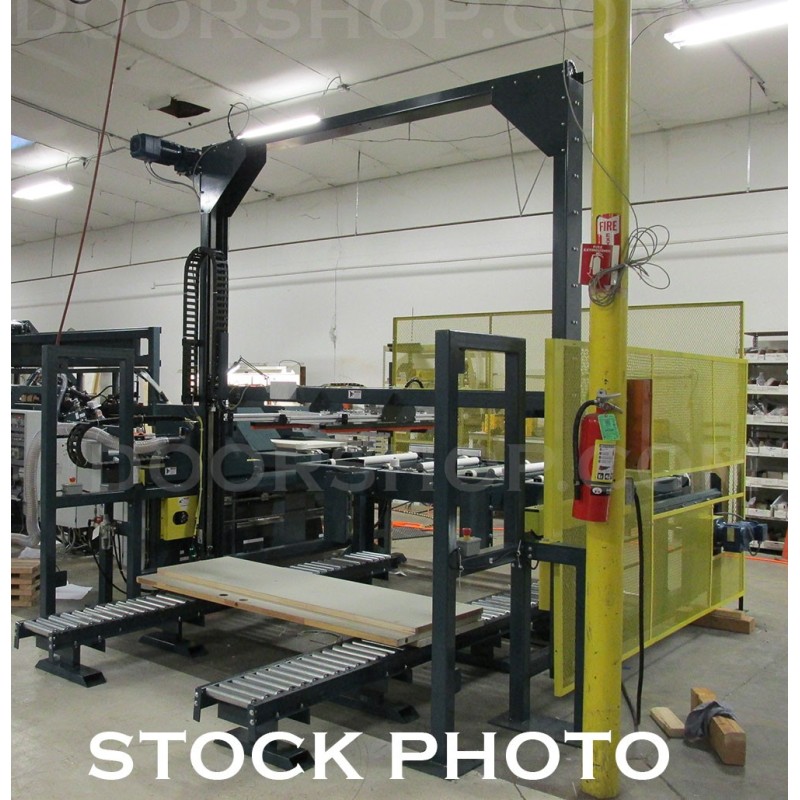

The 530 Loader converts a horizontal door machine into a high speed production system. After placing a door stack (up to 60 interior doors) in the 530, the automatic gantry “plucks” the top door from the stack and places it on a feed table; then the door is power-fed into the door machining center. With little operator involvement, the 530 increases throughput speed dramatically, while also eliminating manual lifting and improving safety. This loader also includes a dedicated touch-screen control panel and can be paired with non-Norfield door machines. Excellent condition and available immediately.

Features

•Draws from 7’ high door stack – no adjustments for door widths or thicknesses
• Automatically feeds flush, raised panel, raised moulding or louved doors with no adjustments
• Touchscreen controls located at door machine to minimize operator motion
*(When mated to a Norfield Eagle or 5000, controls integrated into door machine touchscreen panel)
• Non-marring rollers convey prefinished doors without scratching
• May be adapted to an existing horizontal door line
• Fully guarded for worker safety

Specs

Door width 1’6” to 3’6”
Door height 6’6” to 8’0”
Door thickness 1-3/8” to 1-3/4”
Door weight up to 150 lbs.
Max stack height 96”
Electrical 3Ph 208-230V
@ 25 Amps
Pneumatics 15CFM @ 100psi
Floor Space
13’W x 12’L x 11’-6”H
Overall height 11’2”
Approx Shipping Wt. 5500 lbs.

NF10534

Data sheet

Model
530SA Automatic Door Loader
Manufactured Date
2023
Brand
Norfield
Price
$69,790
Listing Number
NF10534
Serial number
LM8126
FOB
TN
