KVAL Handler Door Loader

$6,500

KV10082

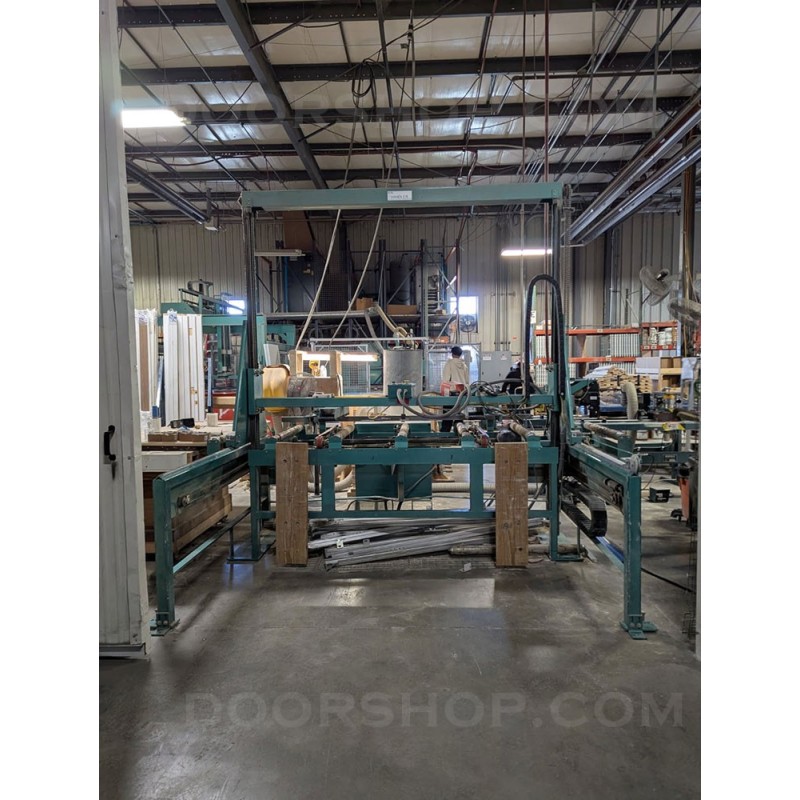

2008 KVAL Handler Door Loader available for immediate sale. The Handler is designed to automatically feed doors from a door stack into a horizontal door machine. This Handler was used on a KVAL DL-2 line and includes a foot pedal for infeeding the door.

Door Feeder Door Machine accommodates flush or panel doors up to 3’0” × 8’0” with a maximum weight of 125 lbs., lifting them from a stack (maximum 7’ high) and automatically feeding them to the next machine.

Doors are lifted and held in place by air pressure clamps from both edges of the door, then moved automatically on a track system over the powered roll table, and finally lowered to be processed by the next machine in the line. Cycle time is 40 seconds.

 General Specifications

Footprint 8' × 10'

Weight    2,000 lbs.

Height    120" from floor to top of horizontal tube


KV10082

Data sheet

Model
Handler
Manufactured Date
2008
Brand
Kval
Price
$6,500
Listing Number
KV10082
Serial number
08-20-407
FOB
KS
