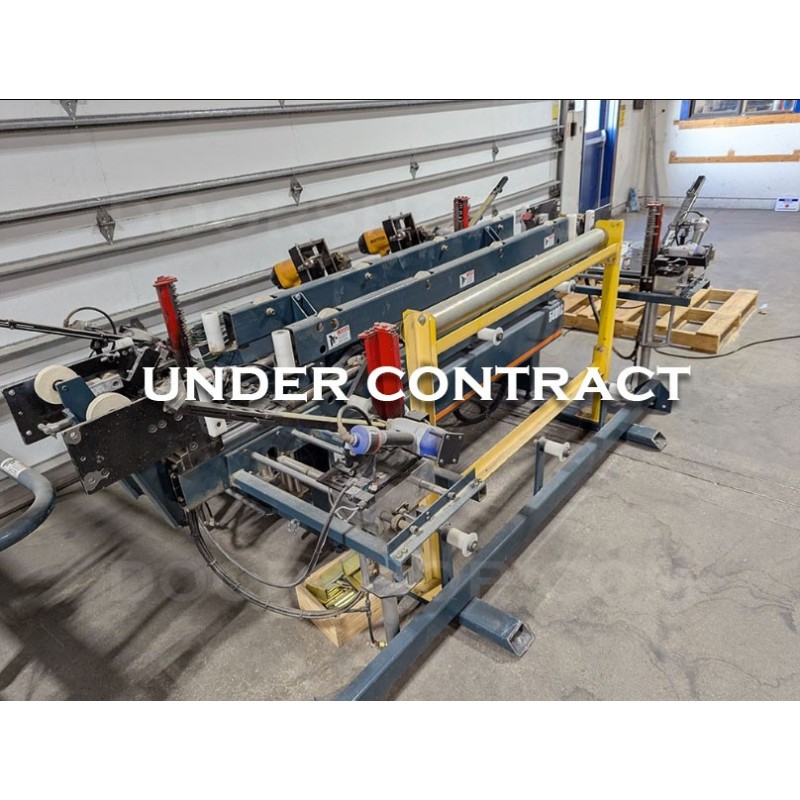

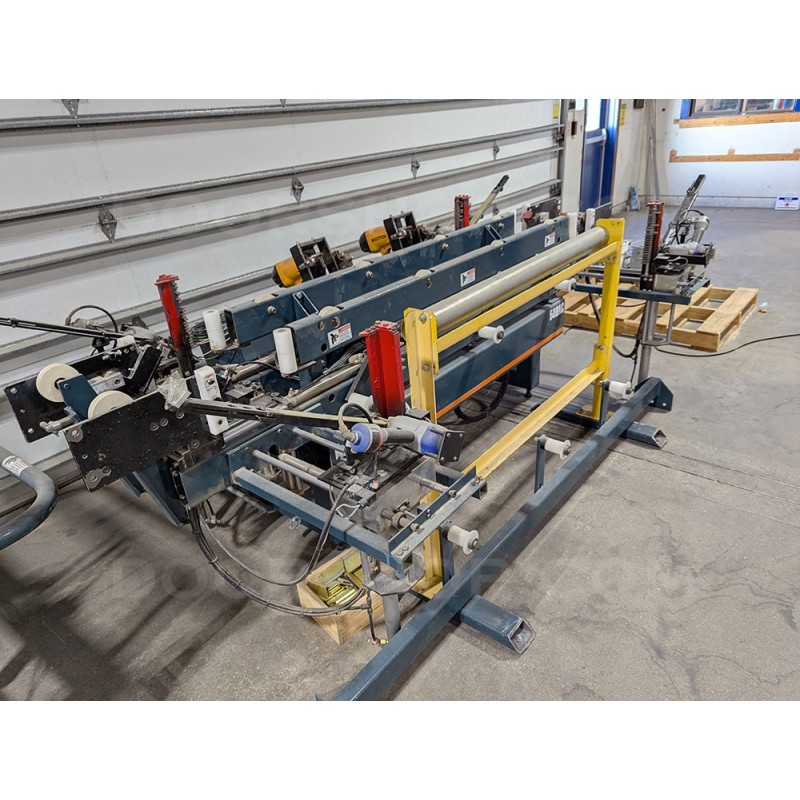

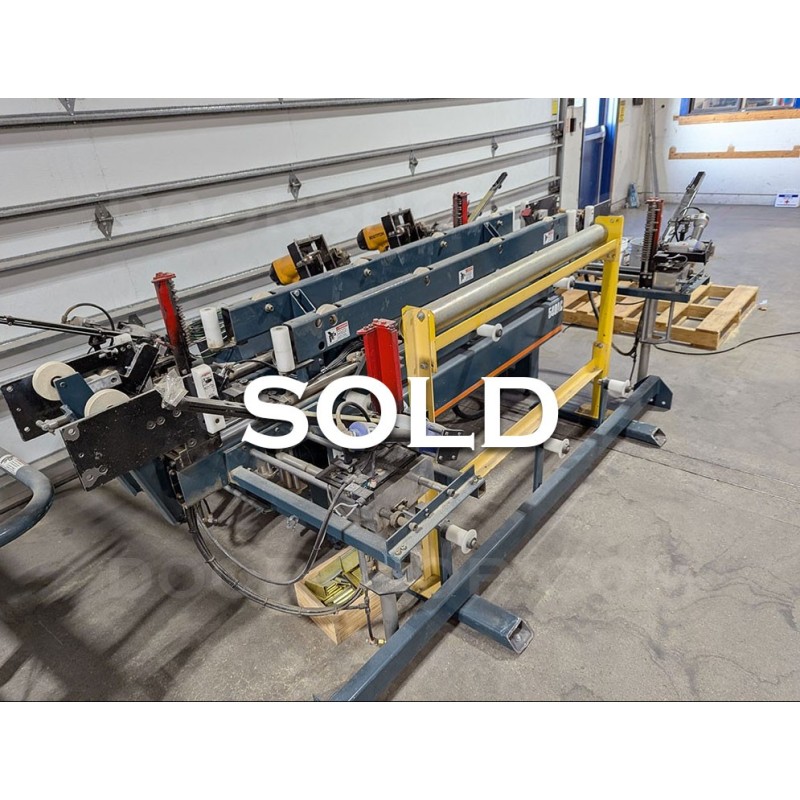

Norfield 540AC Automatic Prehung Door Frame Assembly Center
$45,950
NF10528
For single operator, high speed assembly of prehung door units, including 8-0’s. Ergonomic and intuitive operator controls eliminate the need for extensive training. Foot pedal operation increases operator safety and activates controls immediately. Jambs can be flat (with or without stop applied), split, single rabbet, double rabbet and lugged dado. Capable of handling cycle times as low as 25 seconds. Built-in rollers to safely process pre-finished doors. Raised molding ready. Eject sequence doesn’t require door lifting. Pairs with Norfield Eagle, 5000, 4000, Magnum or any horizontal door machine.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Ergonomic operator controls
- Foot pedal operation
- Sequenced operation for single step forward and reverse operation
- Extended header clamps
- Capable of handling cycle times as low as 25 seconds
- Built-in rollers to safely process pre-finished and metal doors without marking
- Raised molding ready
Options
- Strike Side Nailing for shipping nail
- Single outfeed support roller
Specifications
| Capabilities | Min | Max |
| Door Width | 1'6" | 4'0" |
| Door Height | 6'6" | 8'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Jamb width | 2-1/2" | 7-1/2" |
| Jamb height | 6'6" | 8'0" |
| Jamb thickness | 3/8" | 1-1/2" |
| Approx. Shipping Weight | 1400 lbs | |
| Electrical | 1PH 120V @ 10AMP | |
| Air | 15CFM @ 90PSI 1/2" supply | |
NF10528
Data sheet
- Model
- 540AC
- Manufactured Date
- 2020
- Brand
- Norfield
- Price
- $45,950
- Listing Number
- NF10528
- Serial number
- AS8069
- FOB
- ID
