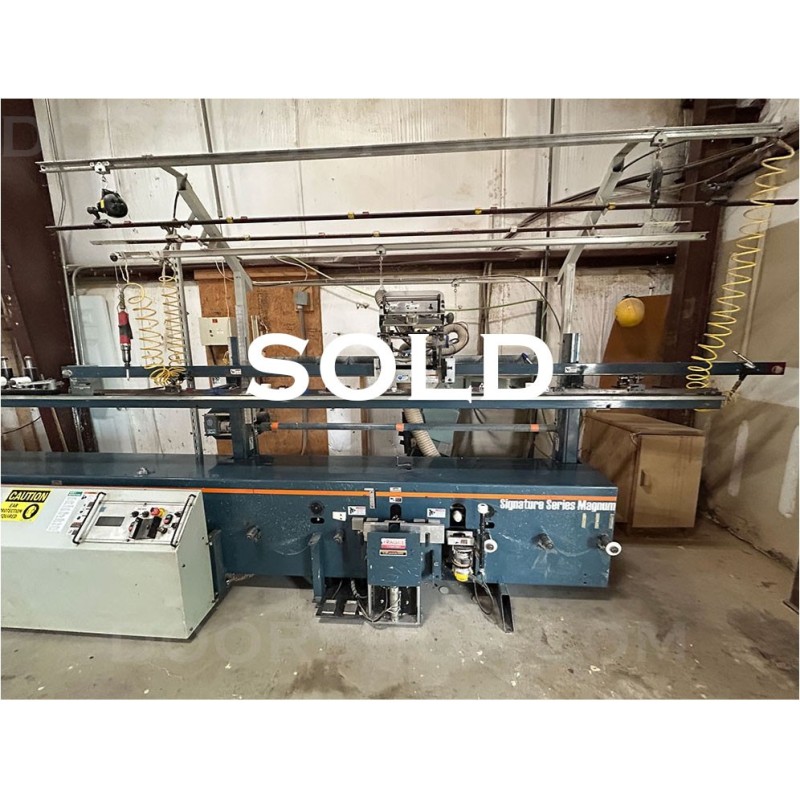

Norfield Signature Series Magnum Prehung Door Machine
$36,750
NF10578
The “Sig Mag” is the most popular machine in the industry. Infinitely versatile, precise, fast, and exceptionally reliable. The Magnum mortises door and jamb for hinges, automatically bores door for lock and latch, and also mortise the door edge for faceplate. This example also includes a power-fed door beveller with sanders for edge easing. Optional dust collector is included. Excellent product support from Norfield. Machine available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Integral Sizer-Sander is a proven profit builder as no additional labor is required when sizing and beveling doors
- Joiner type sizer incorporates an adjustable carbide knife cutterhead set a 3-1/2. Cutterhead revolves in a "climb cut" direction virtually eliminating tear out even in fir stile and rail door
- Sander consists of 2 flap type wheels canted 15º to effectively relieve sharp corners left by sizer
- Powerfeed has two 10" non-marking rubber rollers which drive door over sizer and sander at 32 F.P.M standard
- Automatic drill sequence increases production and decreases labor, as drilling occurs while operator mortises for the hinge butts
- Safety interlock prevents collision of lock and latch bits.
- Simultaneous mortising of door and jamb assures precision fit of hinges
Specs
| Capabilities | Min | Max |
| Door Width | 1'6" | 4'0" |
| Door Height | 8'0" | |
| Door Thickness | 1-1/8" | 2-1/4" |
| Jamb Width | 3-1/2" | 10-1/2" |
| Jamb Height | 8'0" | |
| Jamb Thickness | 1/2" | 1-1/8" |
| Butt Size | 3-1/2", 4", 4-1/2", 5" | |
| Butt Spacing | Infinitely variable | |
| Butt Radius | 1/4" and 5/8" | |
| Lock Backsets | 2-3/8" | 5" |
| Faceplate Router | up to | 1-1/8" x 2-3/4" |
| Approx. Shipping Weight | 2,600 lbs | |
| Floor Space | 5' x 18' | |
| Electrical | 230V 1 phase, 460V 3Phase, (Can be converted to 230V) | |
| Air | 2.2CFM @90PSI, 8.5CFM@90PSI | |
NF10578
Data sheet
- Model
- Signature Series Magnum Prehung Door Machine
- Manufactured Date
- 2007
- Brand
- Norfield
- Price
- $36,750
- Listing Number
- NF10578
- Serial number
- DJ2821-95
- FOB
- GA
