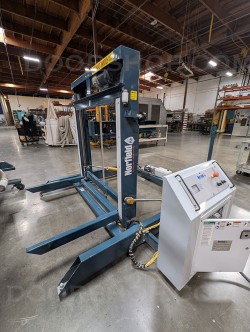

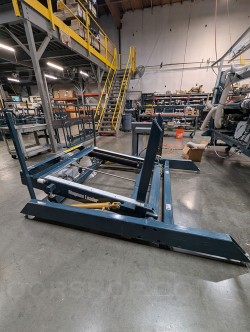

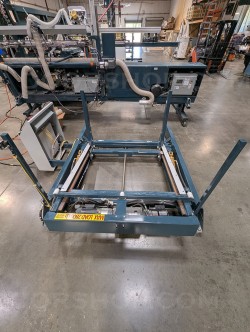

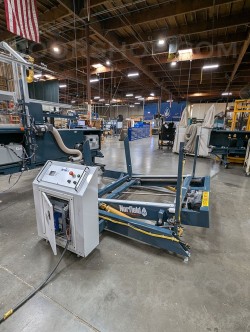

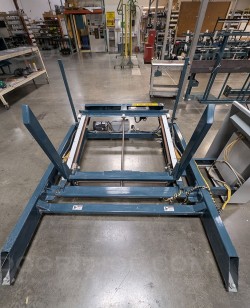

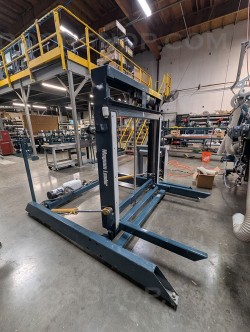

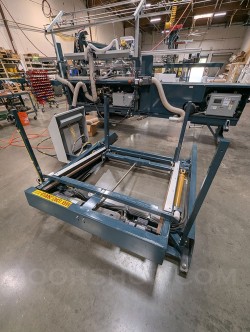

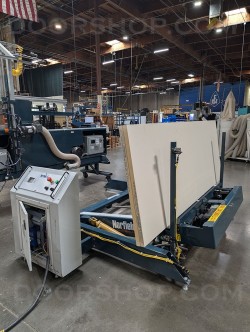

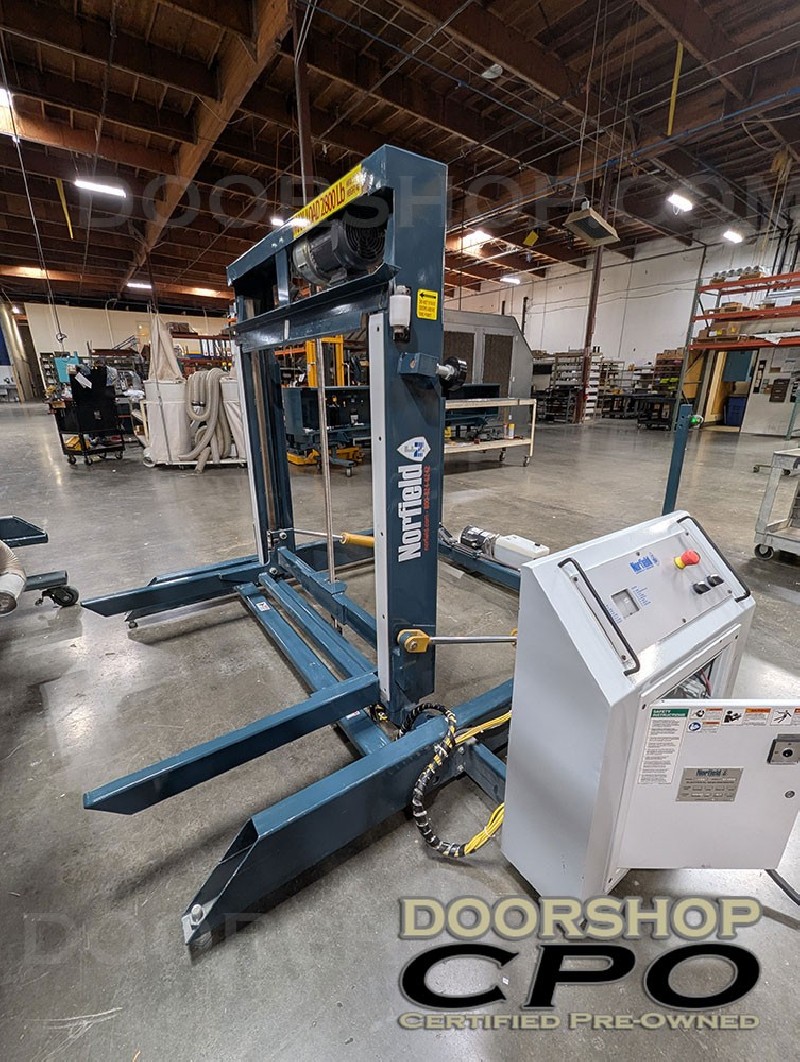

Norfield Magnum Loader
$19,780
NF10594C
Speed up your door production with this like-new Magnum Loader. The Mag Loader increases throughput rate by dramatically reducing worker motion and steps during the day, while also eliminating lifting and the associated safety risks. Simply load a horizontal door stack in the machine; the Loader rotates the stack to near vertical, aligning the top door with the Magnum infeed bed. The operator shifts left and just pulls the top door into position on the Magnum (or similar vertical door machine.) The Loader automatically indexes the next door to line up with the door machine bed. This example is in excellent condition and carries a 90-day parts warranty.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- 2,800 lbs. capacity allows for stacks of the heaviest doors
- 48" stack height ( including pallet) accommodates most house jobs
- Heavy-duty construction for long life
- Photo-eye automatically stages the next door
- Simple, operator-friendly controls
Options
- Front load conveyor
- Side load conveyor
Specification
| Capabilities | Min | Max |
| Door Width | 1'0" | 4'0" |
| Door Height | 4'6" | 9'0" |
| Door Thickness | 1-3/8" | 2-1/4" |
| Infeed Height | 12" horizontal | |
| Outfeed Height | 16" | 20" |
| Approx. Shipping Weight | 1,800 lbs | |
| Floor Space | 8'W x 7'10"L | |
| Electrical | 208V or 230V 3PH | |
NF10594C
Data sheet
- Model
- Magnum Loader
- Manufactured Date
- 2022
- Brand
- Norfield
- Price
- $19,780
- Listing Number
- NF10594C
- Serial number
- LM6966
- FOB
- CA
