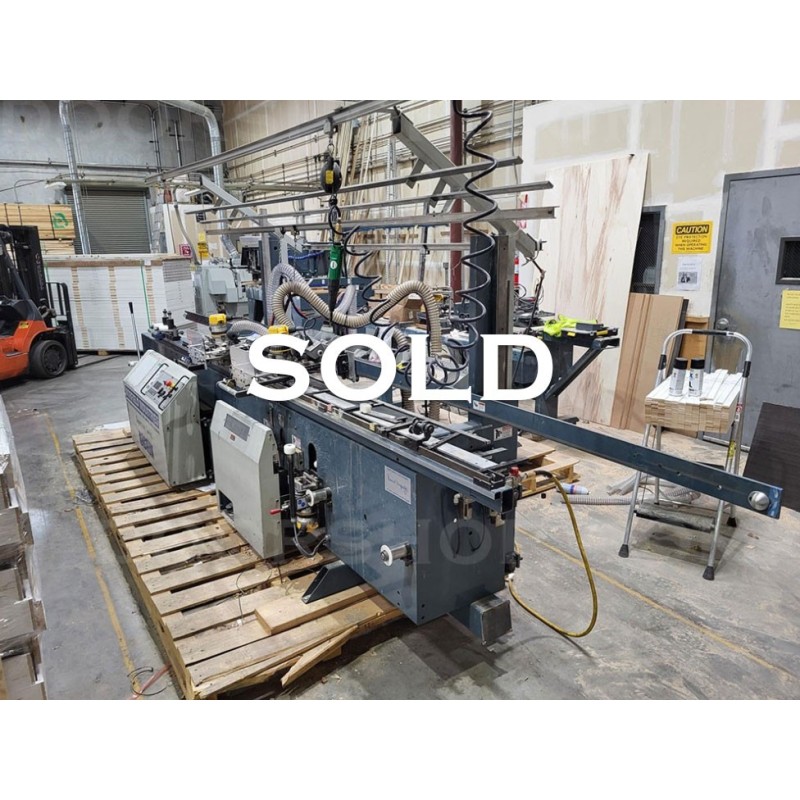

Norfield Signature Magnum

$49,900

NF10531

The Signature Series Magnum is the standard for pre-hung door machines, Quickly produce both standard and custom doors while maintaining high quality and dependable consistency. The Signature Series Magnum mortises both door and hinge jambs, bores for lock and latches, as well as mortises the door edge for faceplate. This machine also includes the optional power-fed door beveler, optional 2nd router, all new router motors and four fully set up index bars. All cutting tools have either been replaced or have new knives installed. And don't forget the best-in-class product support from Norfield.

When purchasing any used machine, consult your doorshop sales person about OEM technical support.

Features

  • Integral Sizer-Sander is a proven profit builder as no additional labor is required when sizing and beveling doors
  • Joiner type sizer incorporates an adjustable carbide knife cutterhead set a 3-1/2. Cutterhead revolves in a "climb cut" direction virtually eliminating tear out even in fir stile and rail door
  • Sander consists of 2 flap type wheels canted 15º to effectively relieve sharp corners left by sizer
  • Powerfeed has two 10" non-marking rubber rollers which drive door over sizer and sander at 32 F.P.M standard
  • Automatic drill sequence increases production and decreases labor, as drilling occurs while operator mortises for the hinge butts
  • Safety interlock prevents collision of lock and latch bits.
  • Simultaneous mortising of door and jamb assures precision fit of hinges

Specs

Capabilities Min Max
Door Width 1'6" 4'0"
Door Height   8'0"
Door Thickness 1-1/8" 2-1/4"
Jamb Width 3-1/2" 10-1/2"
Jamb Height   8'0"
Jamb Thickness 1/2" 1-1/8"
Butt Size 3-1/2", 4", 4-1/2", 5"
Butt Spacing Infinitely variable
Butt Radius 1/4" and 5/8"
Lock Backsets 2-3/8" 5"
Faceplate Router up to 1-1/8" x 2-3/4"
Approx. Shipping Weight 2,600 lbs
Floor Space 5' x 18'
Electrical 230V 1 phase, 460V 3Phase, (Can be converted to 230V)
Air 2.2CFM @90PSI, 8.5CFM@90PSI
NF10531

Data sheet

Model
Signature Series Magnum
Manufactured Date
2005
Brand
Norfield
Price
$49,900
Listing Number
NF10531
Serial number
DJ2697-95
FOB
NV
