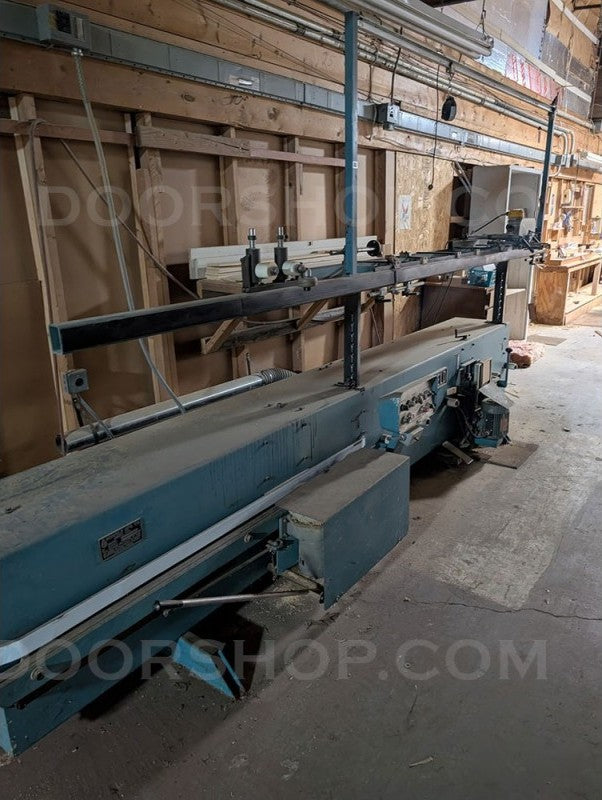

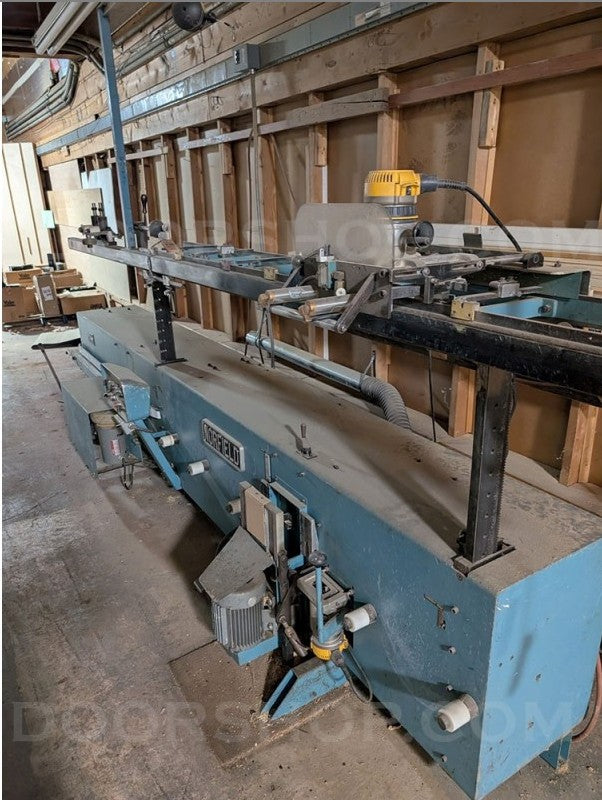

Norfield Pro Prehung Door Machine

Great starter machine for efficient prehung door production up to 3-0x7-0 doors. Manual (but built-in) hinge mortising in door and jamb, automatic lock drill and latch drill, and quick manual faceplate mortisor. After hinge prep, the Pro becomes a jig for easy application of complete hinges in door and jamb. The Pro also features a heavy duty, power-fed door sizer/beveller with edge-easing sanders. Available for immediate sale.

This is a legacy machine that is no longer serviced by the OEM and has limited technical and parts support.

Features

• Integral Sizer-Sander is a proven profit builder as no additional labor is required when sizing and beveling doors
• Joiner type sizer incorporates an adjustable carbide knife cutterhead set a 3-1/2. Cutterhead revolves in a "climb cut" direction virtually eliminating tearout even in fir stile and rail door
• Sander consists of 2 flap type wheels canted 15º to effectively relieve sharp corners left by sizer
• Powerfeed has two 10" non-marking rubber rollers which drive door over sizer and sander at 32 F.P.M standard
• Automatic drill sequence increases production and decreases labor, as drilling occurs while operator mortises for the hinge butts
• Safety interlock prevents collision of lock and latch bits.
• Simultaneous mortising of door and jamb assures precision fit of hinges
