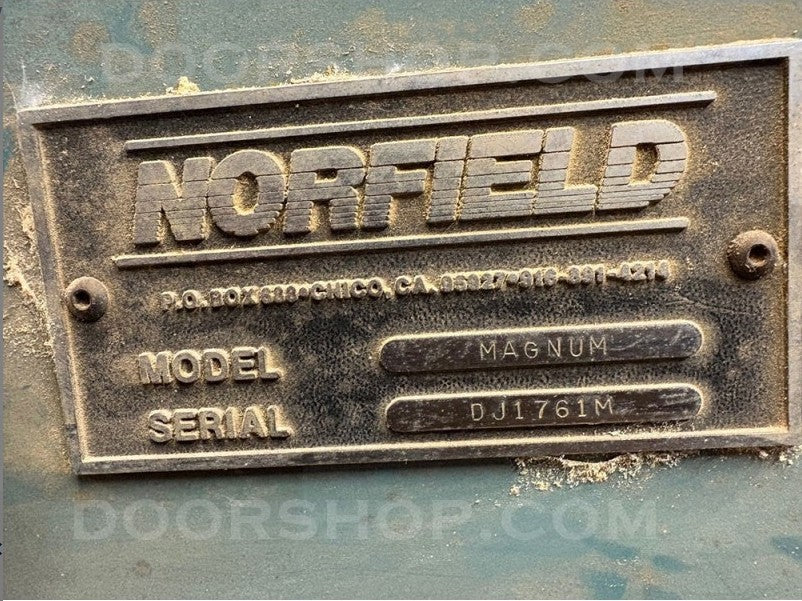

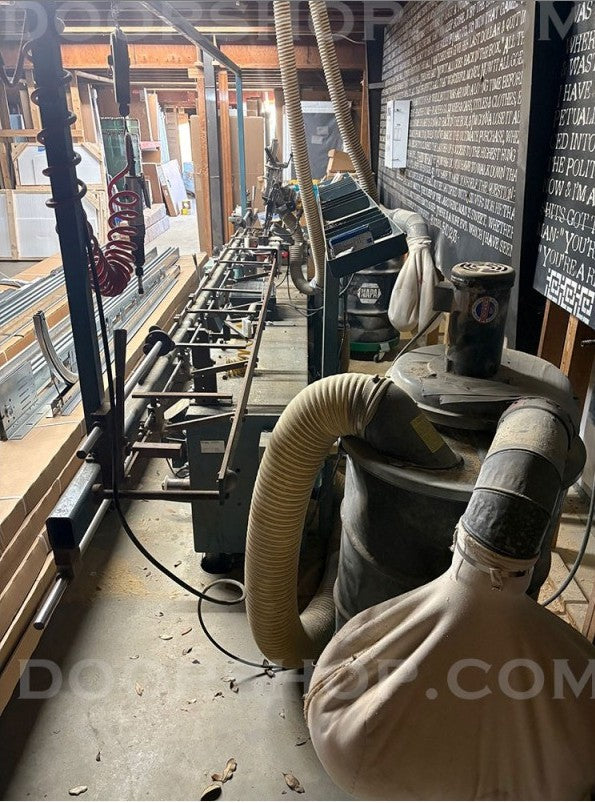

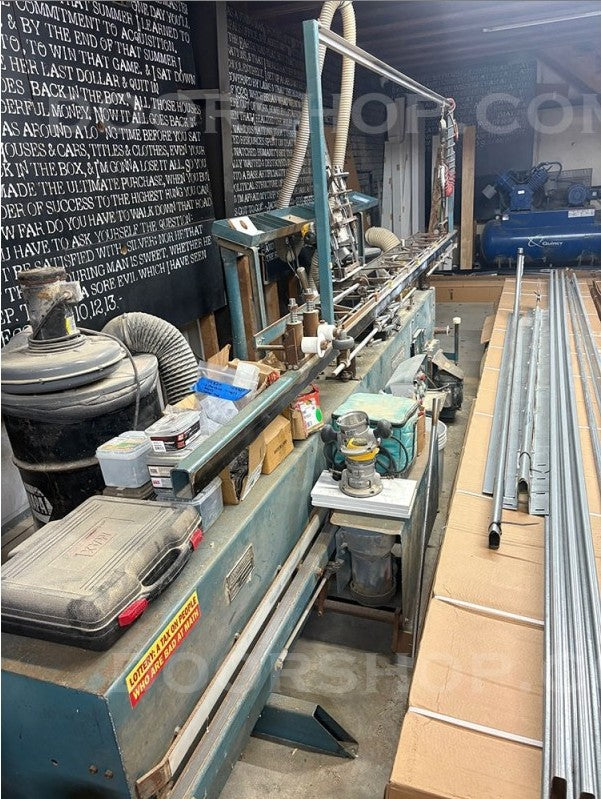

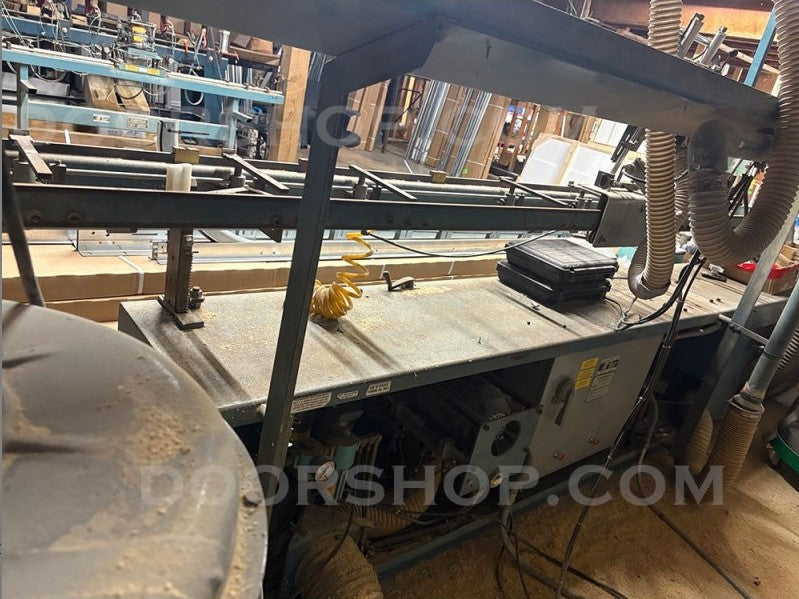

Norfield Magnum Prehung Door Machine

This is the original and famous Magnum door machine, capable of producing 75+ prehungs/day, including standard 6-8’s and 8-0’s, but also great for custom doors too. The Mag mortises hinge pockets in the door and jamb, and preps the door for lock, latch, and faceplate. The Magnum also features a power-fed door beveller with edge-easing sanders. Available immediately.

This is a legacy machine that is no longer serviced by the OEM and has limited technical and parts support.

Features

• Integral Sizer-Sander is a proven profit builder as no additional labor is required when sizing and beveling doors
• Joiner type sizer incorporates an adjustable carbide knife cutterhead set a 3-1/2. Cutterhead revolves in a "climb cut" direction virtually eliminating tearout even in fir stile and rail door
• Sander consists of 2 flap type wheels canted 15º to effectively relieve sharp corners left by sizer
• Powerfeed has two 10" non-marking rubber rollers which drive door over sizer and sander at 32 F.P.M standard
• Automatic drill sequence increases production and decreases labor, as drilling occurs while operator mortises for the hinge butts
• Safety interlock prevents collision of lock and latch bits.
• Simultaneous mortising of door and jamb assures precision fit of hinges

Specs
