Norfield E Series Magnum
$71,200
Skip to product information
New Listing
Norfield E Series Magnum
$71,200
SKU:
NF10602
Machine Details
Model
E Series Magnum
Brand
Norfield
Manufacturing Date
2021
Serial Number
DJ3182E
Listing Number
NF10602
FOB
TX

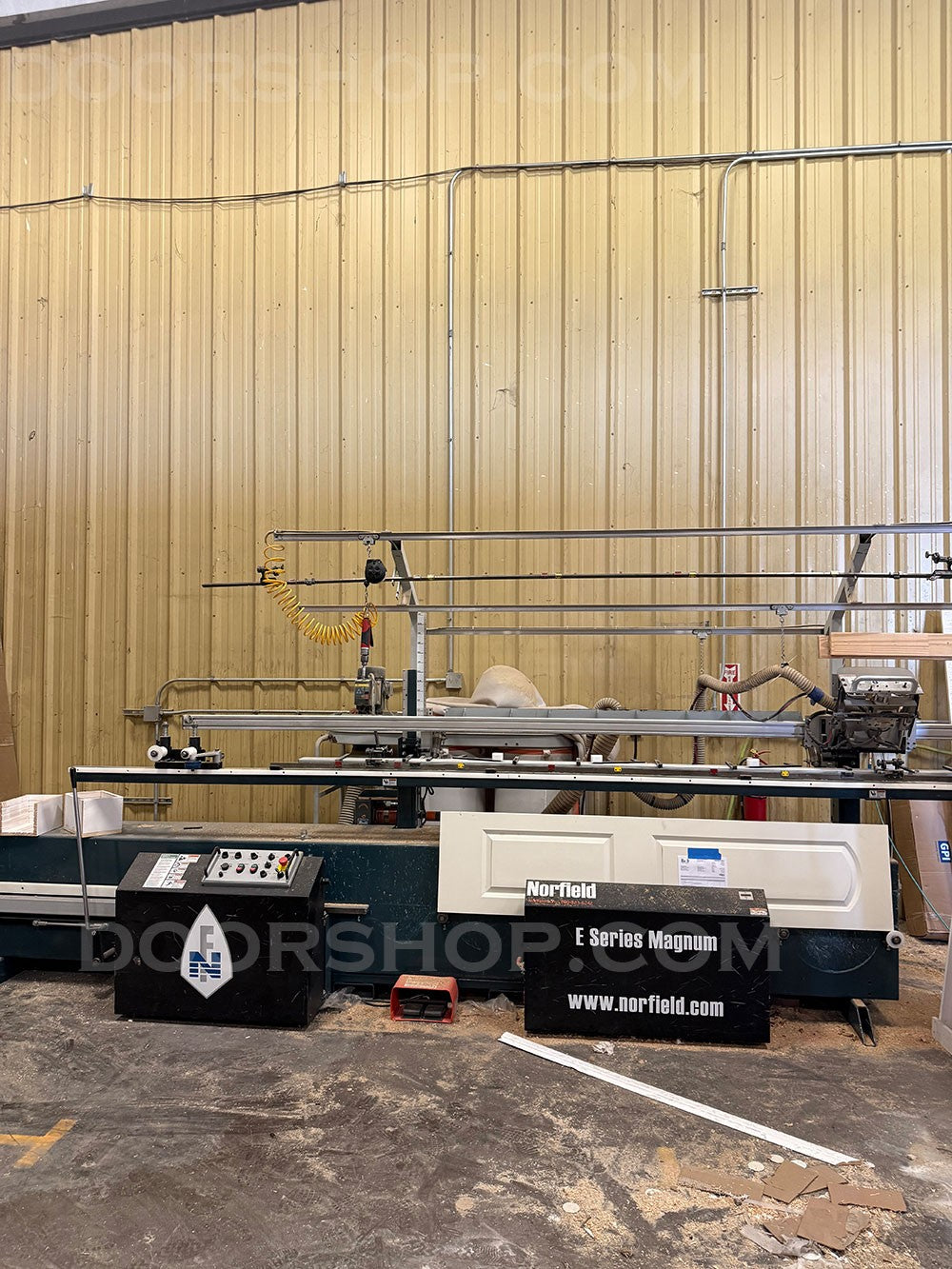

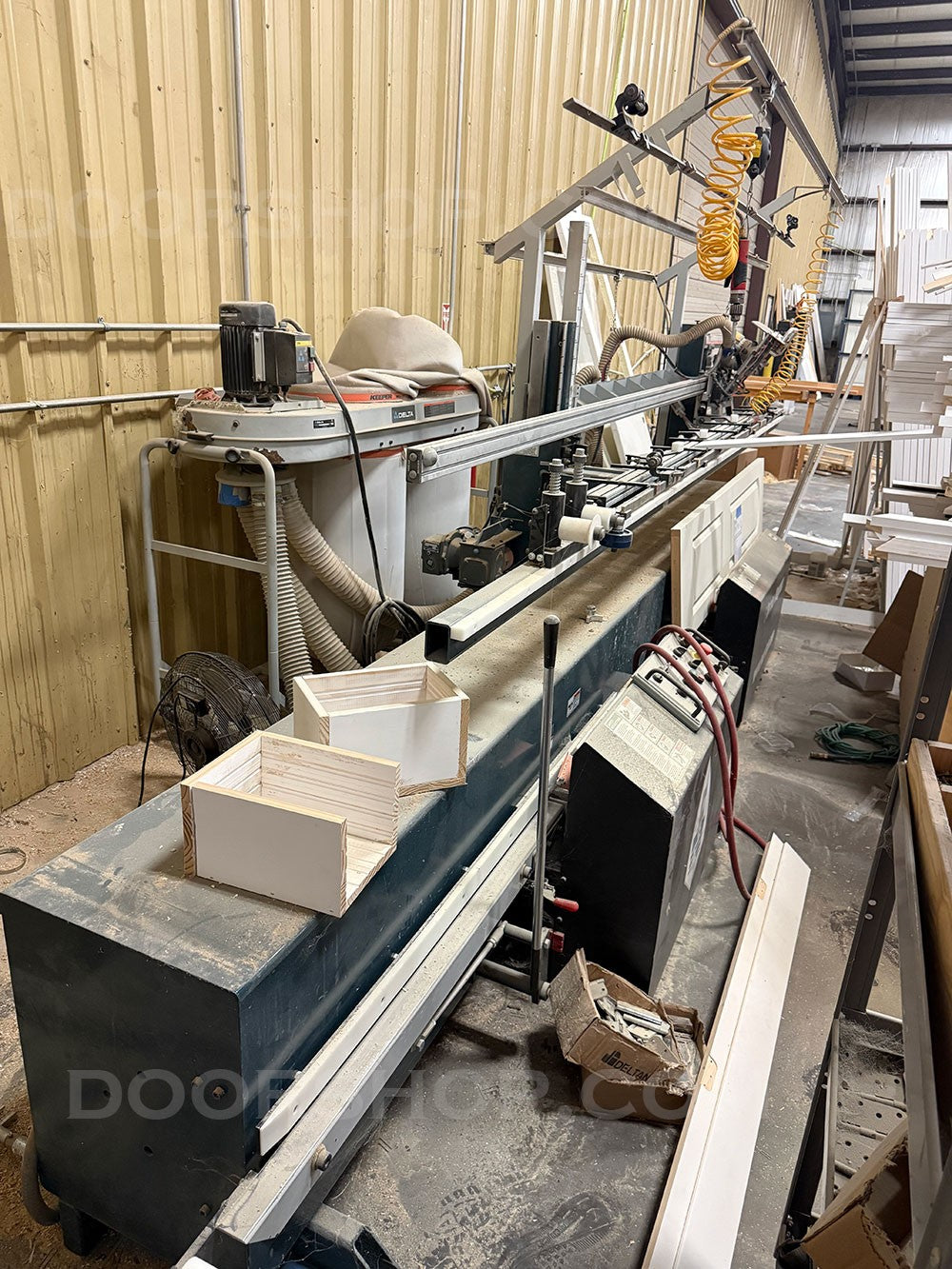

Norfield E Series Magnum available for sale. The E Series Magnum is the most popular vertical door machine on the market and is capable of prehanging interior, exterior, commercial and architectural doors. Standard features Include integrated door sizer/beveller, lock and latch drilling and automatic faceplate routing. Machine Prehung door units faster with better accuracy and quality. Includes 5HP dust collector.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Automatic face plate routing
- Quick change backset
- Quick change 3-1/2 degree hinge mortise
- Bolt on wear surfaces
- Machine doors from 4' to 9' tall and from 1' to 4' wide
- Raised molding compatible
- One 8' (for doors up to 8') and one 9' integrated stop systems for quick change between pre-set hinge patterns
- Partial lock boring for door pulls
- Pneumatic jamb lift adjustment to ensure a perfect fit
- Insert cutters for low cost cutting blade replacement
- Self-centering butt router for easy hinge mortising
- 3.5° beveler/sizer
- Variable speed power feed allows for soft and hardwood doors
- Infinite door width adjustment
- Power feed wheel bypass
Specs
| Capabilities | Min | Max |
| Door Width | 1'0" | 4'0" |
| Door Height | 4'0" | 9'0" |
| Door Thickness | 1-3/8" | 2-1/4" |
| Jamb Width | 2-1/2" | 10-1/2" |
| Jamb Thickness | 1/2" | 1-5/8" |
| Hinge Size | 3-1/2" | 5" |
| Hinge Radius | 1/4" | 5/8" |
| Lock Backsets | 2-3/8" | 2-3/4" |
| Faceplate Router | up to | 1-1/4" x 2-3/4" |
| Infeed Height | 16" | 20" |
| Outfeed Height | 16" | 20" |
| Approx. Shipping Weight | 4000 lbs | |
| Floor Space | 5'W x 18'L | |

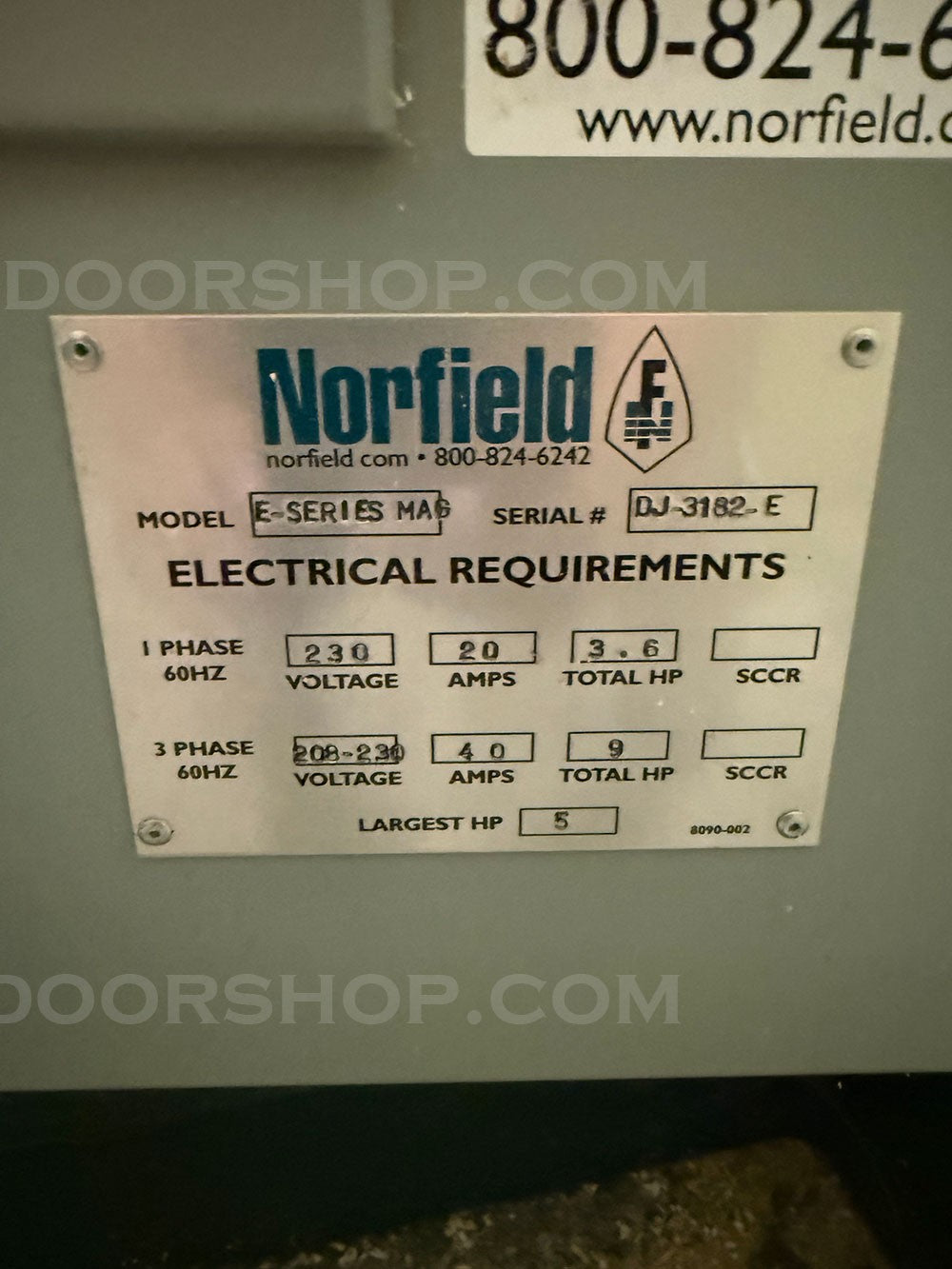

| Electrical | 230V 3 Ph@30 Amps 220V 1 Ph@30 Amps |
|
| Air | 2.2 CFM @ 90 PSI 8.5 CFM @ 90 PSI for manual screwdriver 10 CFM @ 90 PSI for auto screwfeeder or pre-drill |
|
