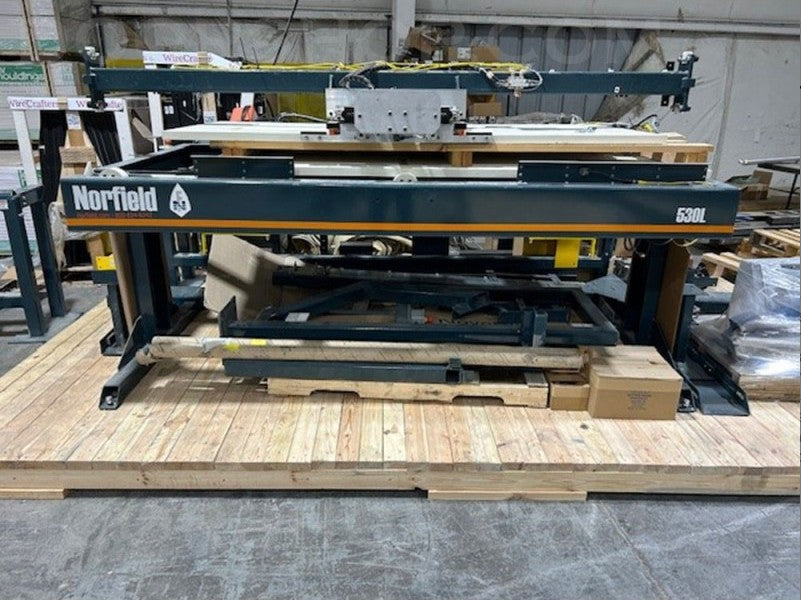

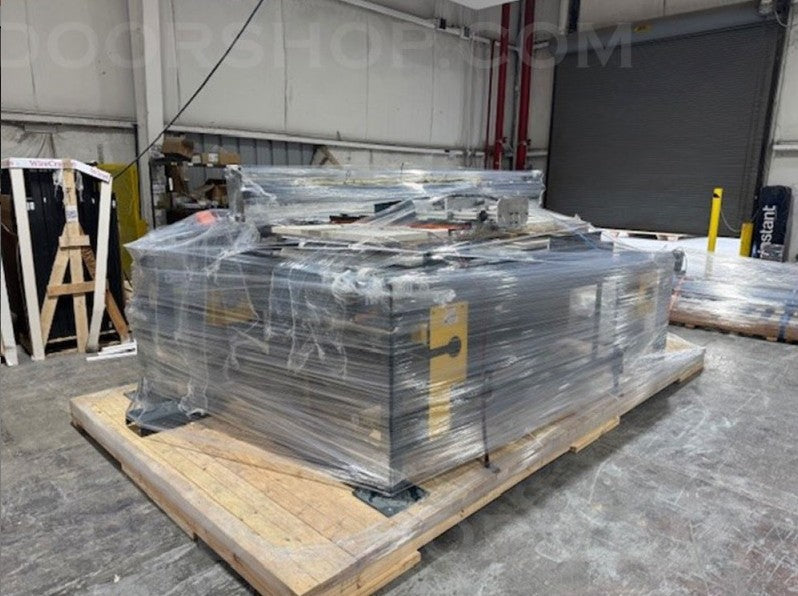

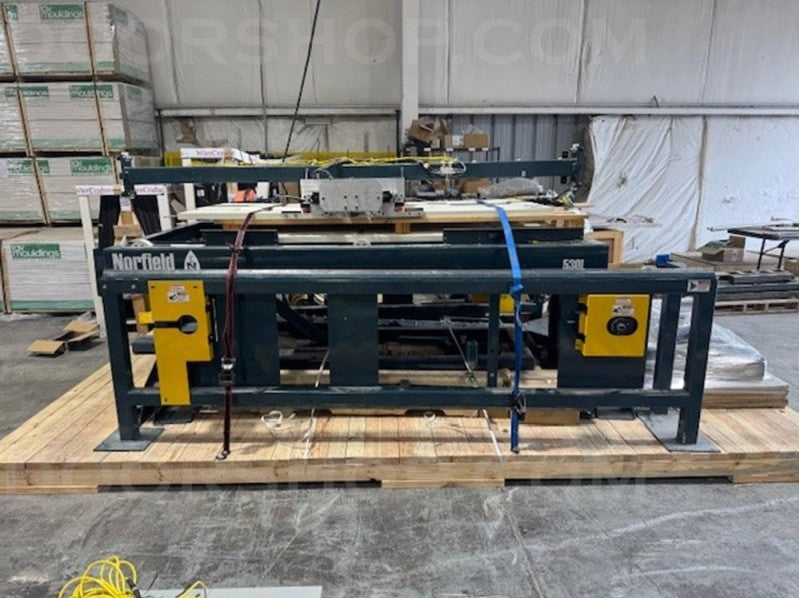

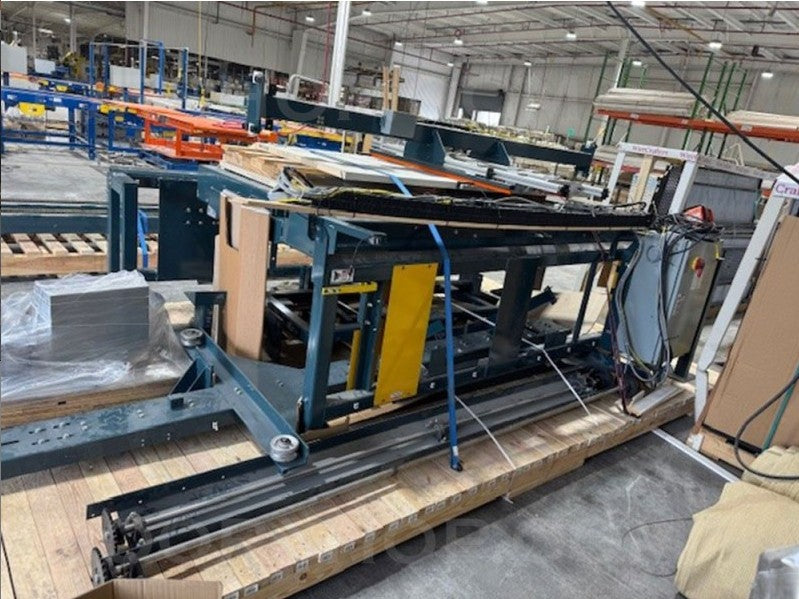

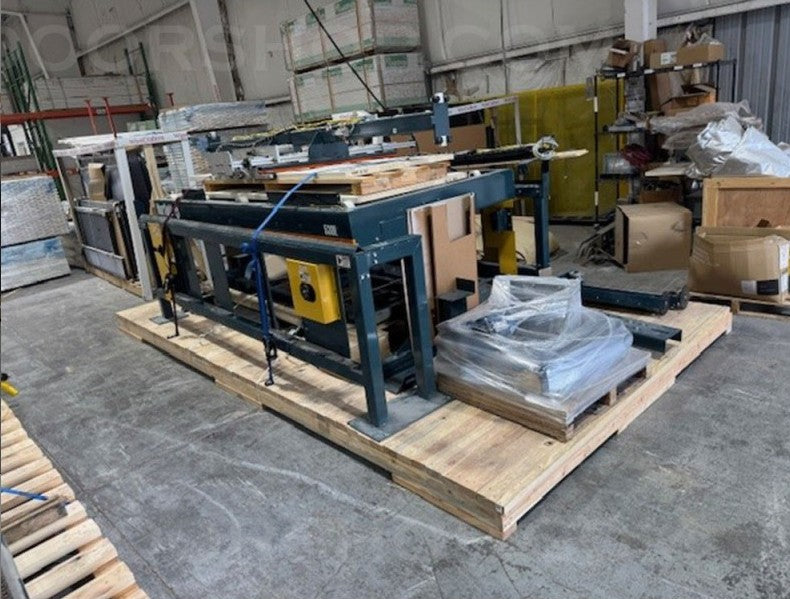

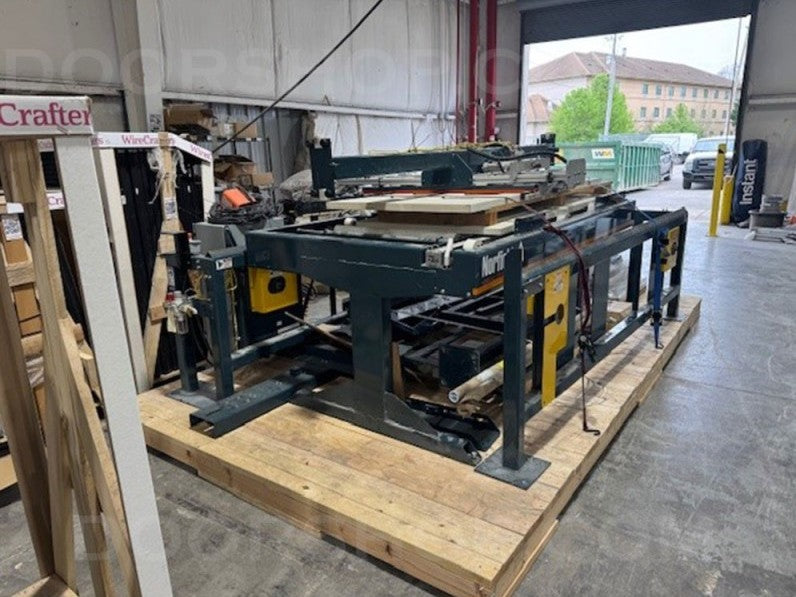

Norfield 530SA Automatic Door Loader

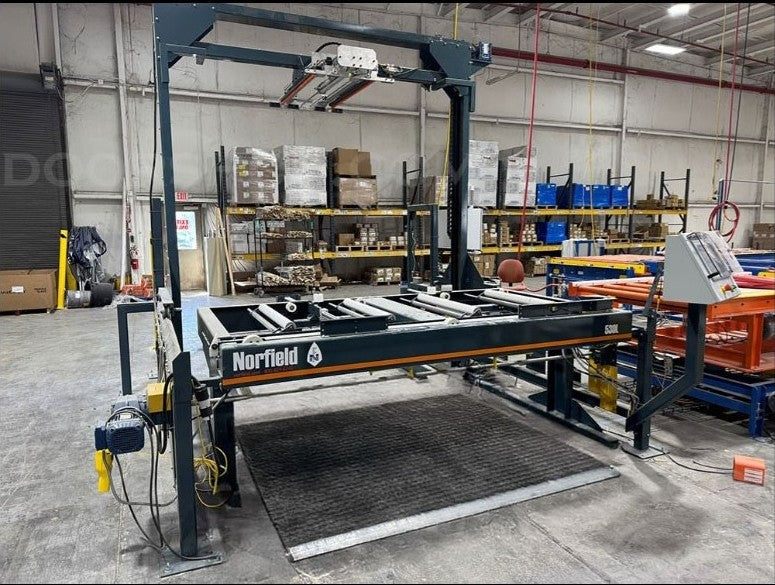

The 530 Loader converts a horizontal door machine into a high speed production system. After placing a door stack (up to 60 interior doors) in the 530, the automatic gantry “plucks” the top door from the stack and places it on a feed table; then the door is power-fed into the door machining center. With little operator involvement, the 530 increases throughput speed dramatically, while also eliminating manual lifting and improving safety. This loader also includes a dedicated touch-screen control panel and can be paired with non-Norfield door machines. This loader is in like-new condition (only 74 doors on the counter) and available immediately.

When purchasing any used machine, consult your doorshop sales person about OEM technical support.

Features

•Draws from 7’ high door stack – no adjustments for door widths or thicknesses
• Automatically feeds flush, raised panel, raised moulding or louved doors with no adjustments

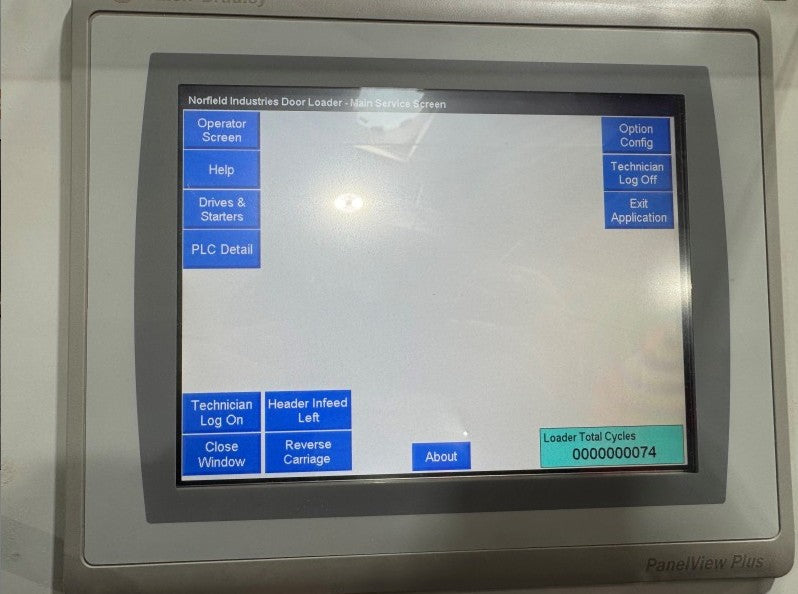

• Touchscreen controls located at door machine to minimize operator motion
*(When mated to a Norfield Eagle or 5000, controls integrated into door machine touchscreen panel)
• Non-marring rollers convey prefinished doors without scratching
• May be adapted to an existing horizontal door line
• Fully guarded for worker safety

Specs

Door width 1’6” to 3’6”
Door height 6’6” to 8’0”
Door thickness 1-3/8” to 1-3/4”
Door weight up to 150 lbs.
Max stack height 96”
Electrical 3Ph 208-230V
@ 25 Amps
Pneumatics 15CFM @ 100psi
Floor Space
13’W x 12’L x 11’-6”H
Overall height 11’2”
Approx Shipping Wt. 5500 lbs.
