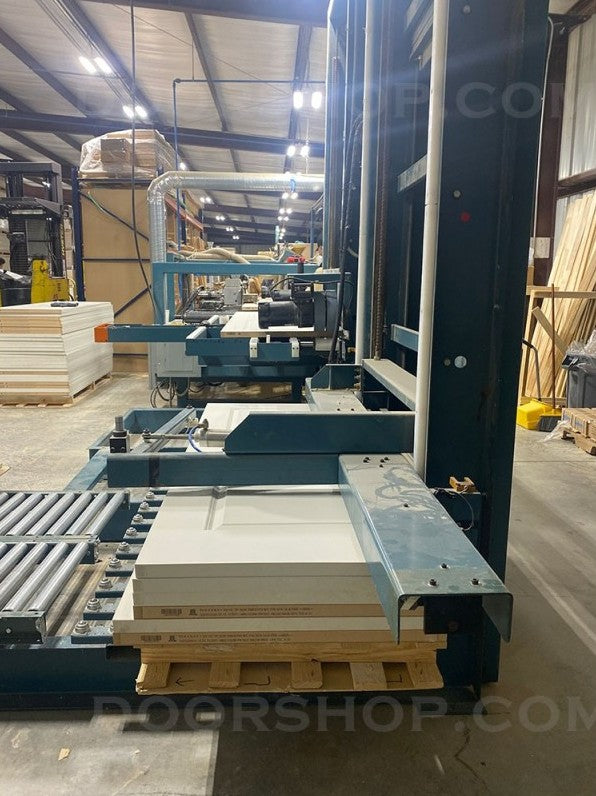

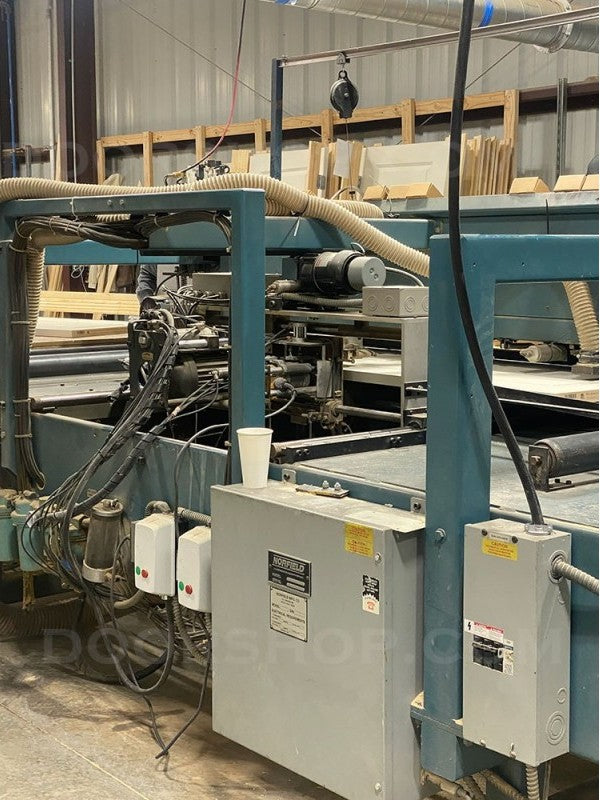

Norfield 5000 with 5200 Loader

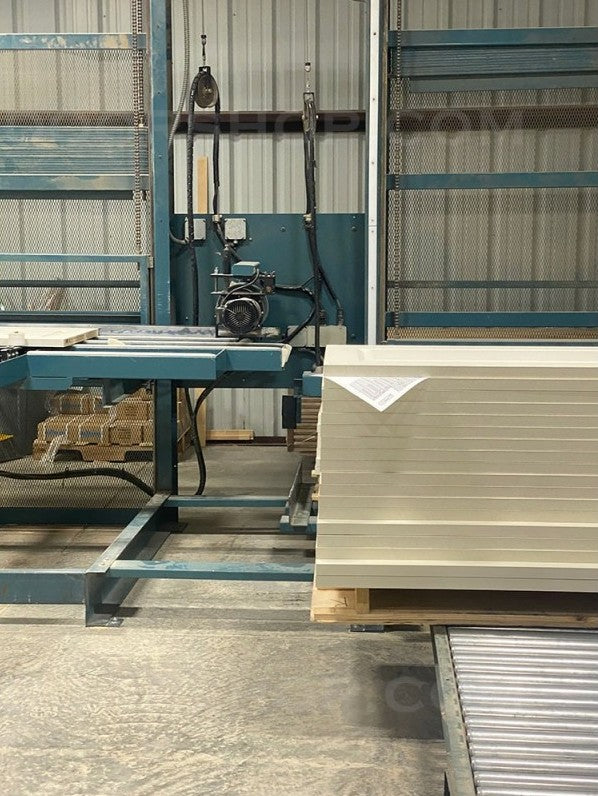

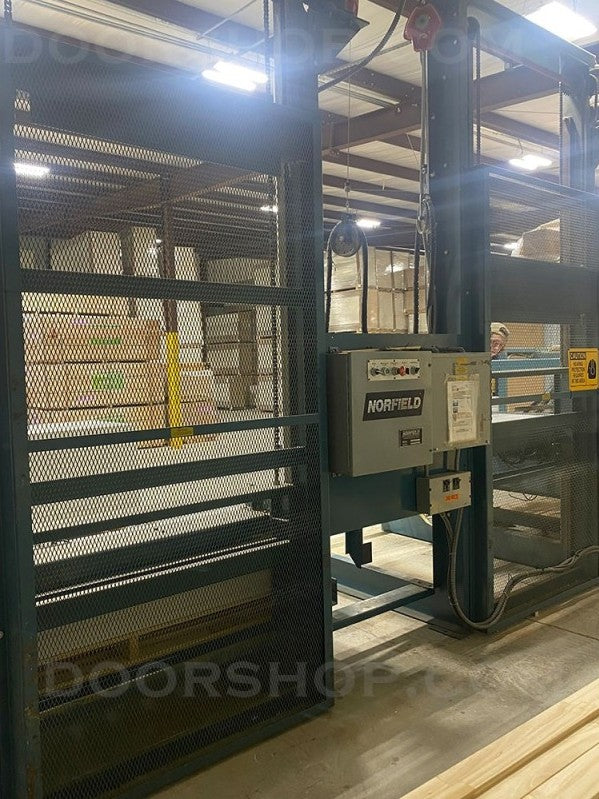

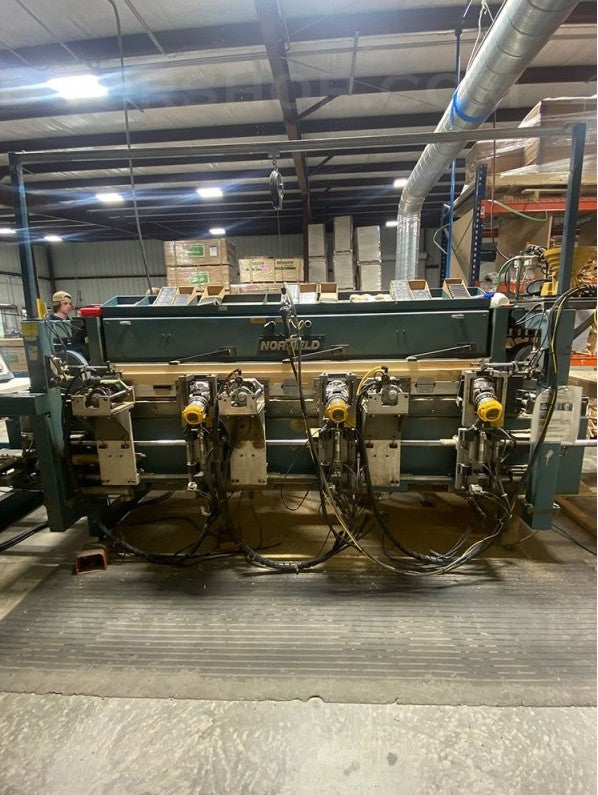

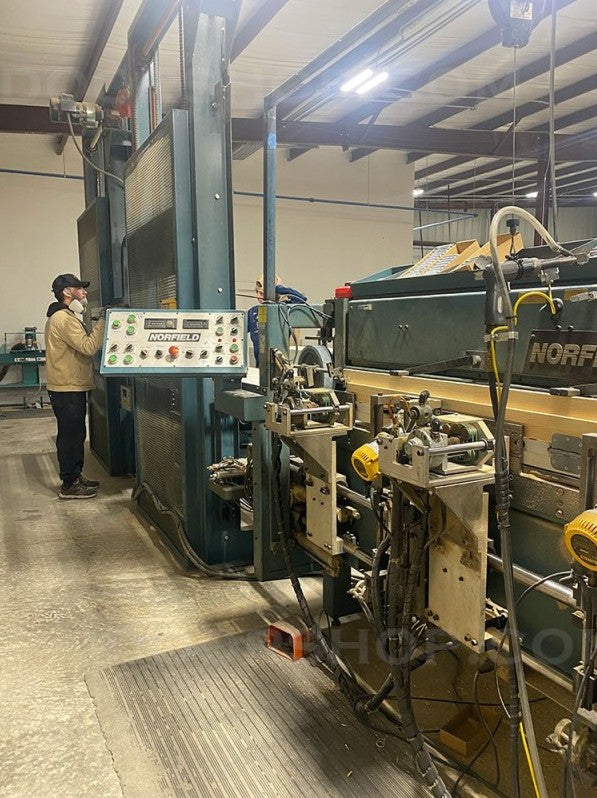

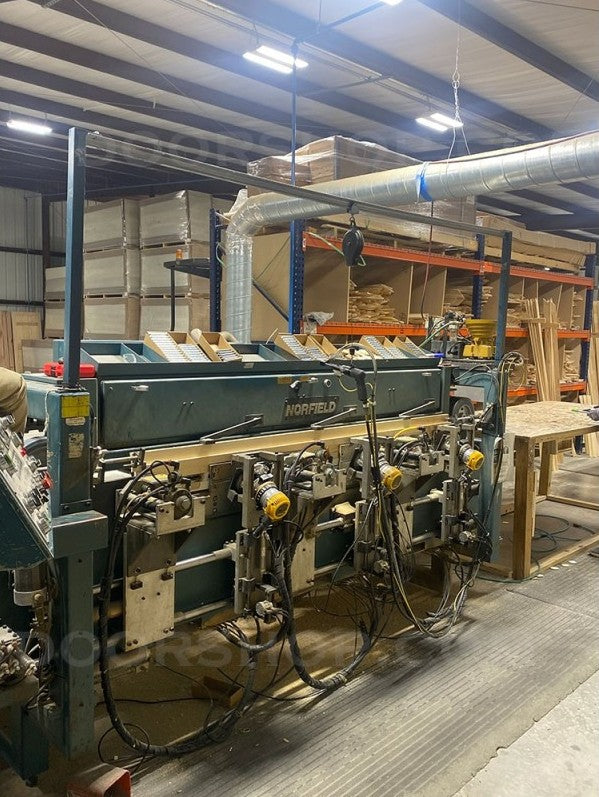

Great starter system for high production of 6’8” prehung doors. The high speed begins with the included model 5200 Loader which automatically draws from a 60-door stack and feeds each door into the 5000 machining center. This modified 5000 automatically mortises 2 or 3 hinge pockets in the door and jamb, predrills hinge screw pilot holes, and preps the door for lock, latch, and faceplate. (No hinge applicators or assembly machine included in this package.) Currently in operation and available immediately.

When purchasing any used machine, consult your doorshop sales person about OEM technical support.

Standard features

• Automatic door width adjustment
• Automatic door feeding, and positioning for right- or left-hand doors
• Automatic pre-drill for 3-1/2" hinges
• Automatic hinge application - operator places hinges on applicators
• Automatic 2-1/8" lock bore, latch bore and faceplate routing
• Center mounted cycle start controls are ergonomically placed for operator
• E-stop with air dump releases pinch points and clamps for operator safety
• Bypass lock bore machining
• Sequenced based sensors ensure reliability at higher operating speeds
• Machine clamps the door up for varying door thicknesses
• Simplified re-positioning of door for handling changes
• 7" operator touchscreen with graphical interface for ease of use
• Raised molding compatible
• 10" touchscreen control
• Operating temperature above 50º

Options

• Spare parts packages
• 3HP vacuum with auto start
• Additional conveyor sections
• Auto tilt changeover, 0° to 3° for hinge and latch sides
• One bowl automatic screwfeeding (Designed for #9 philips screws)
• Two bowl automatic screwfeeding (two screw colors)(Designed for #9 philips screws)
• High speed option for increased production output

Specifications
