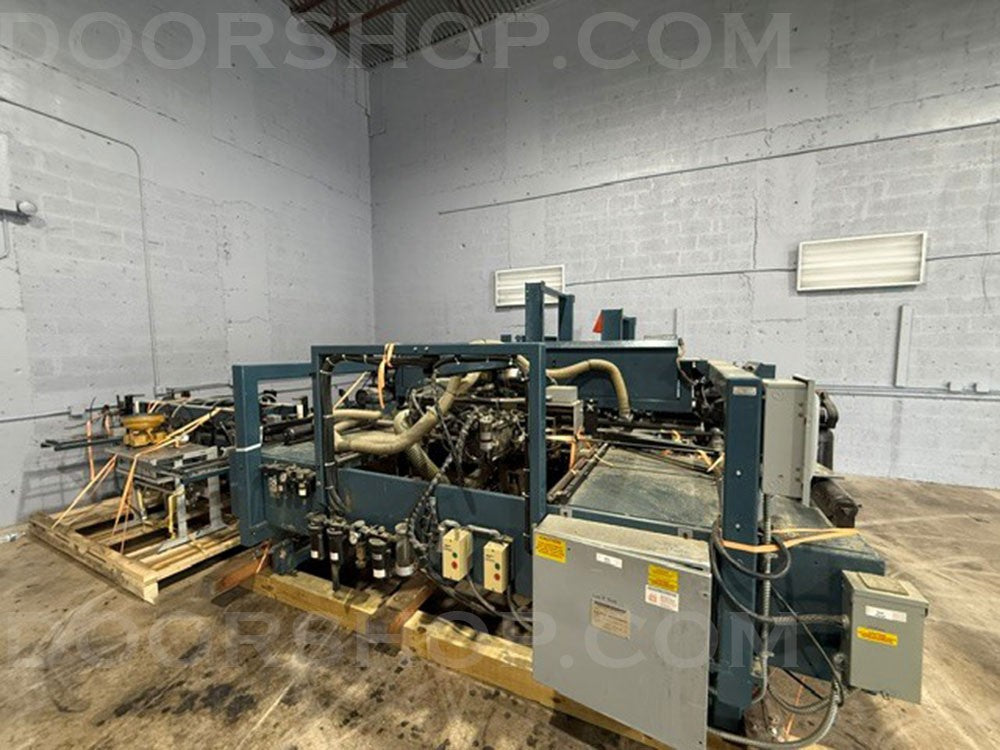

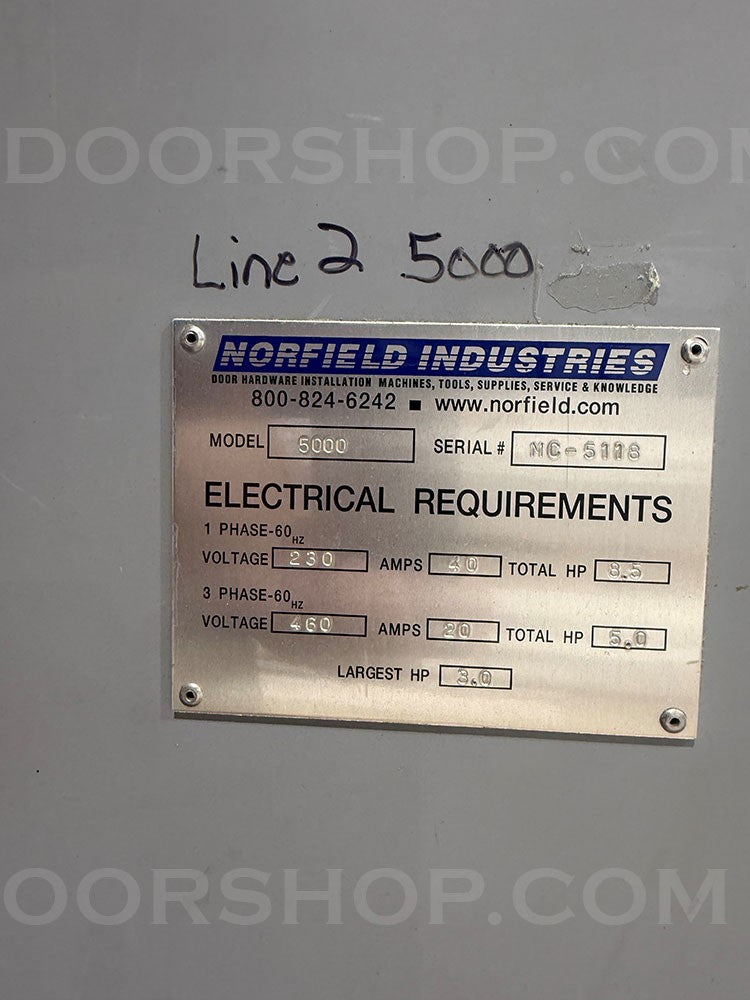

Norfield 5000 Automatic Prehung Door Line

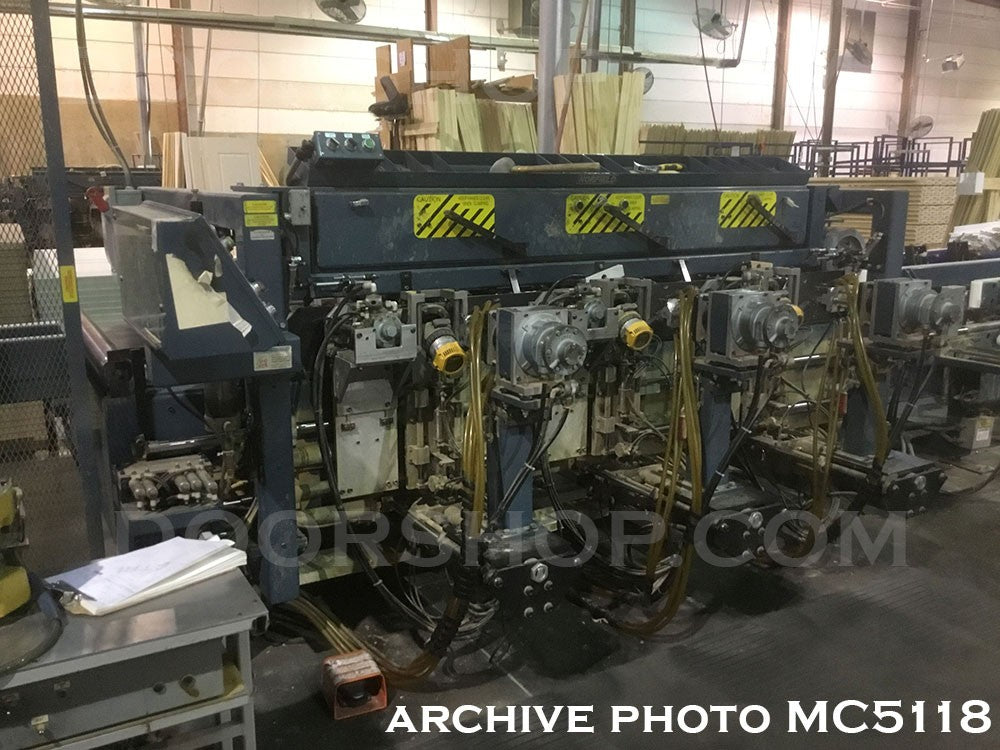

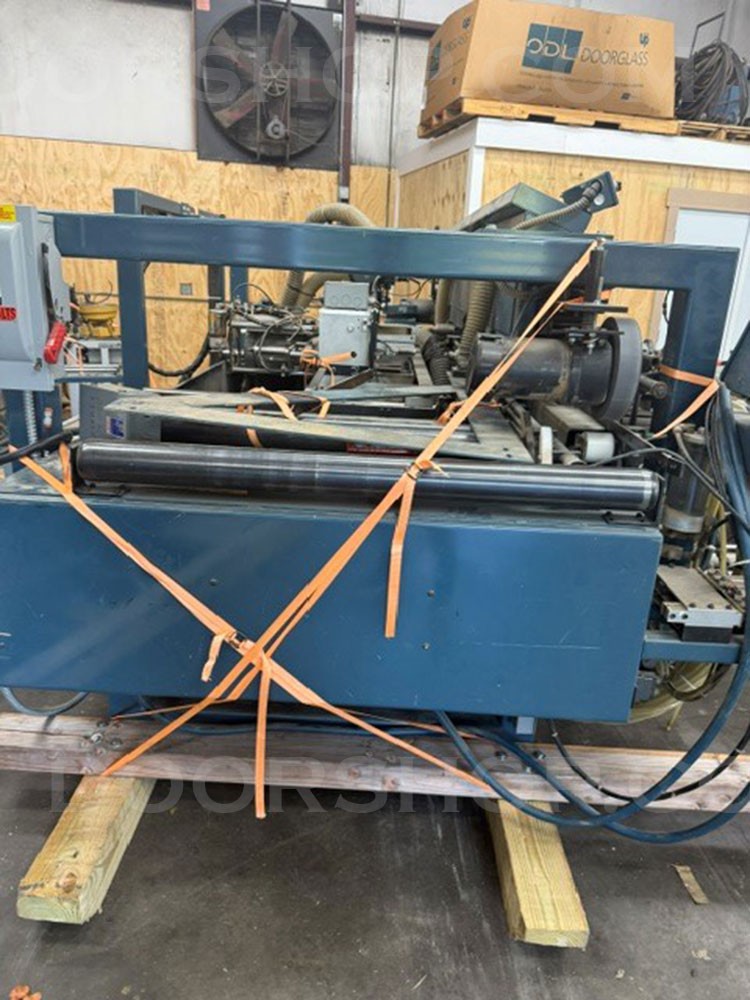

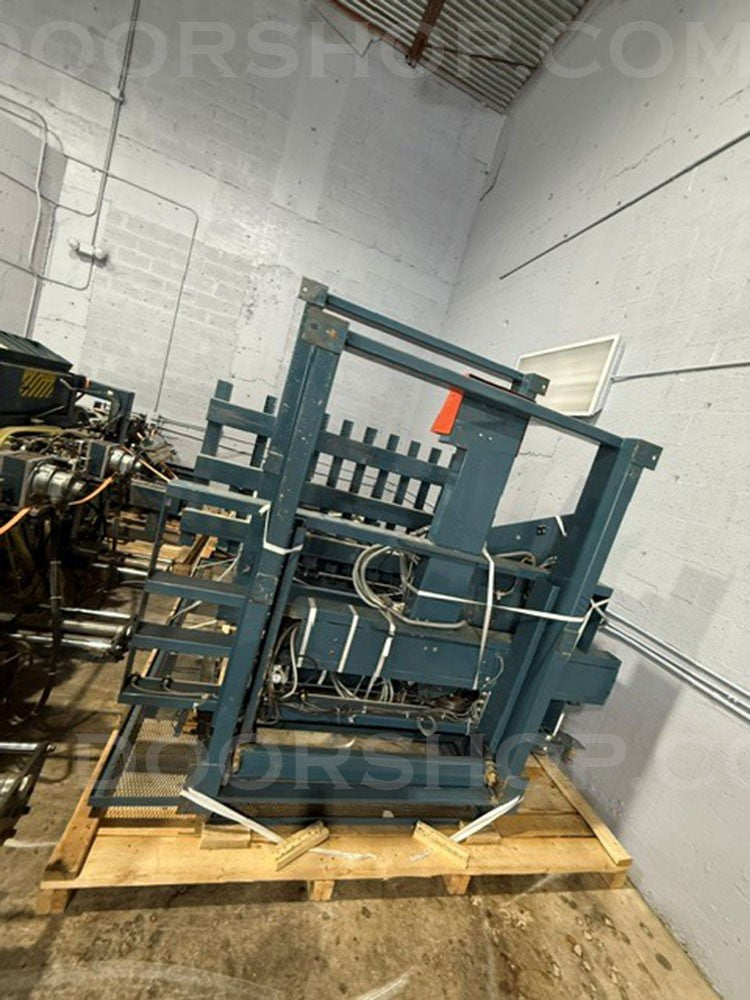

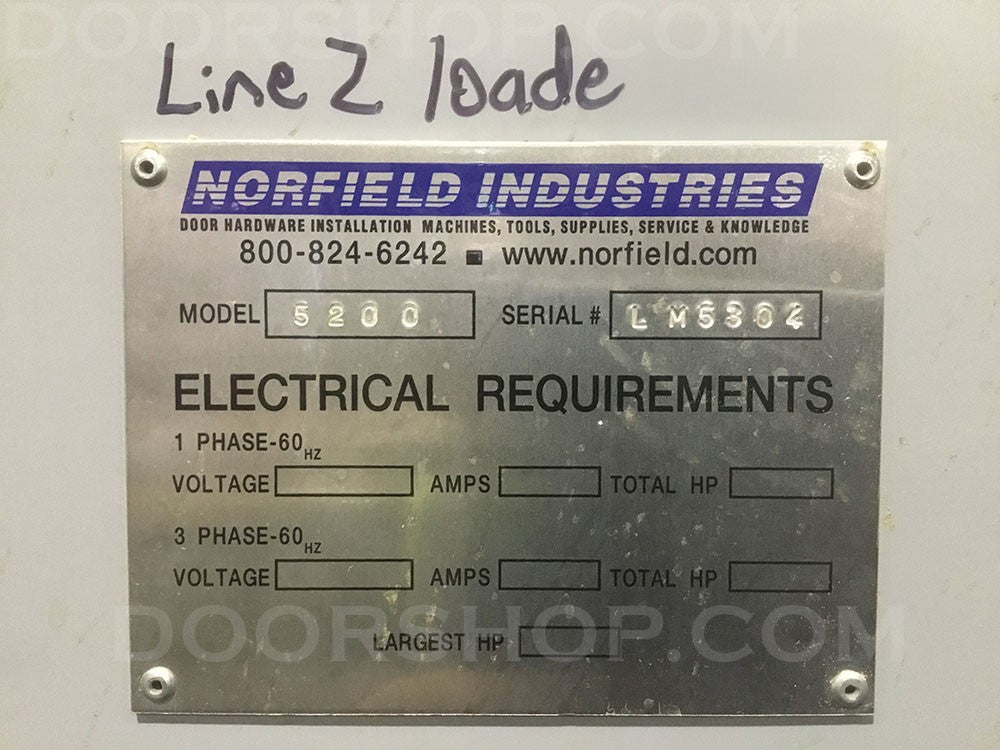

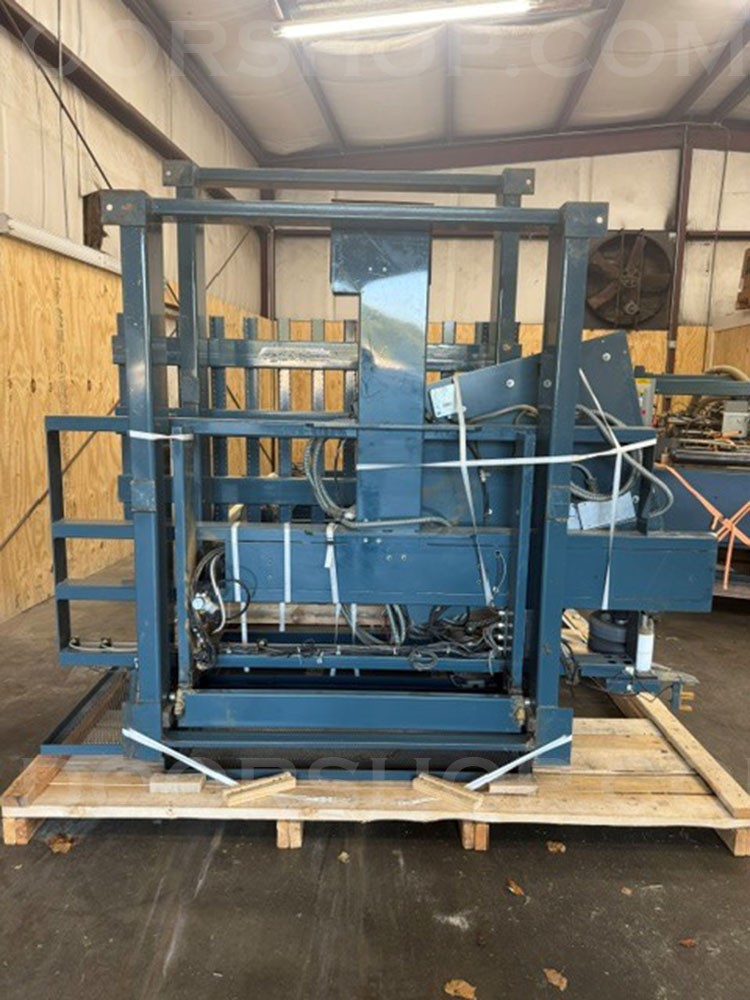

The 5000 is legendary for high speed 80” prehung door production. Doors feed automatically from the 5200 door loader (60-door capacity) into the 5000 machining center. The MC mortises the door and jamb for hinges, preps the door for lock, predrills 18 hinge screw pilot holes, and automatically installs 2-3 hinges. Finally the door/jamb unit travels to the 5100 for automatic frame assembly. 35-40 seconds/door is a typical throughput rate; suitable for 150-400+ doors/day. This particular 5000 also features automatic screwfeeding. Available for immediate sale.

When purchasing any used machine, consult your doorshop sales person about OEM technical support.

Standard features

• Automatic door width adjustment
• Automatic door feeding, and positioning for right- or left-hand doors
• Automatic pre-drill for 3-1/2" hinges
• Automatic hinge application - operator places hinges on applicators
• Automatic 2-1/8" lock bore, latch bore and faceplate routing

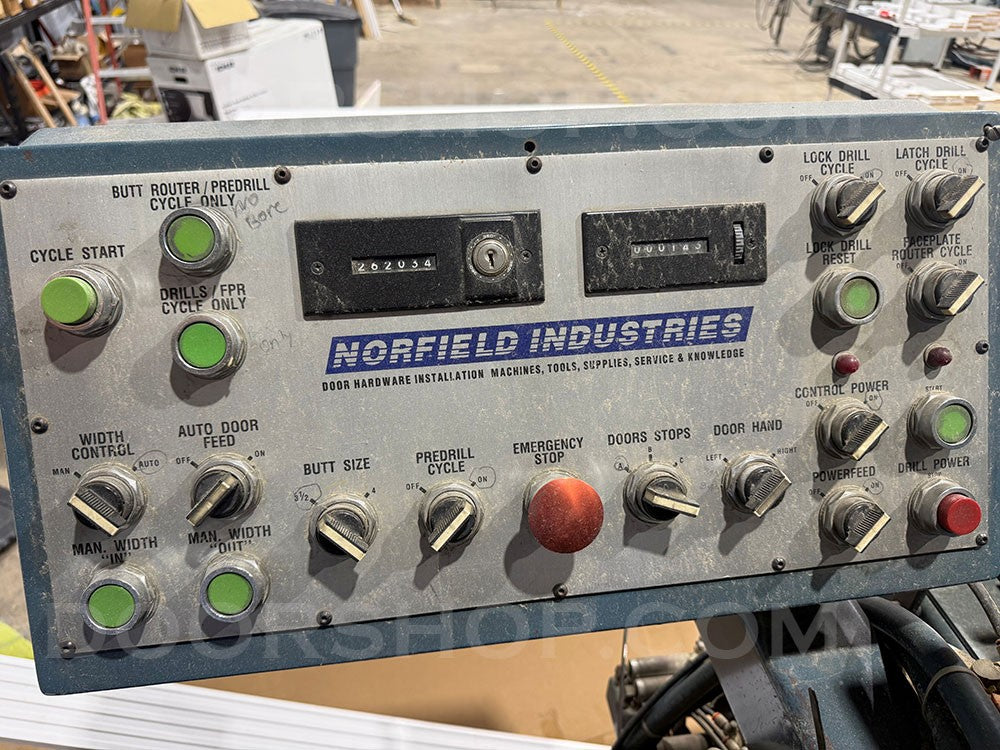

• Center mounted cycle start controls are ergonomically placed for operator
• E-stop with air dump releases pinch points and clamps for operator safety
• Bypass lock bore machining
• Sequenced based sensors ensure reliability at higher operating speeds
• Machine clamps the door up for varying door thicknesses
• Simplified re-positioning of door for handling changes
• 7" operator touchscreen with graphical interface for ease of use
• Raised molding compatible
• 10" touchscreen control
• Operating temperature above 50º

Options

• Spare parts packages
• 3HP vacuum with auto start

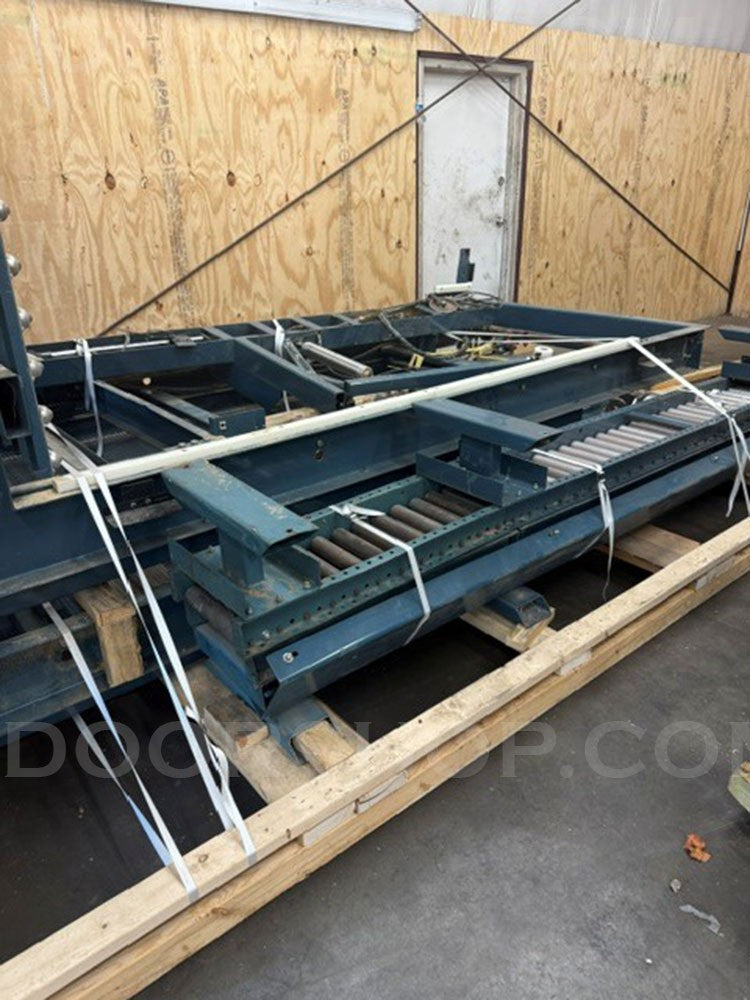

• Additional conveyor sections
• Auto tilt changeover, 0° to 3° for hinge and latch sides

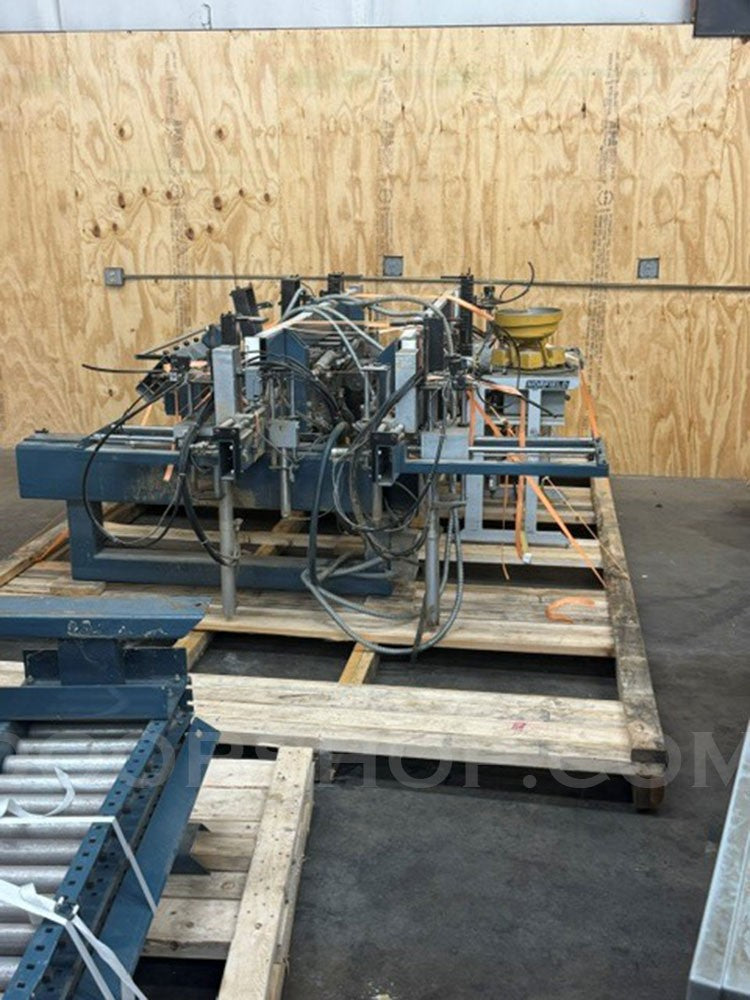

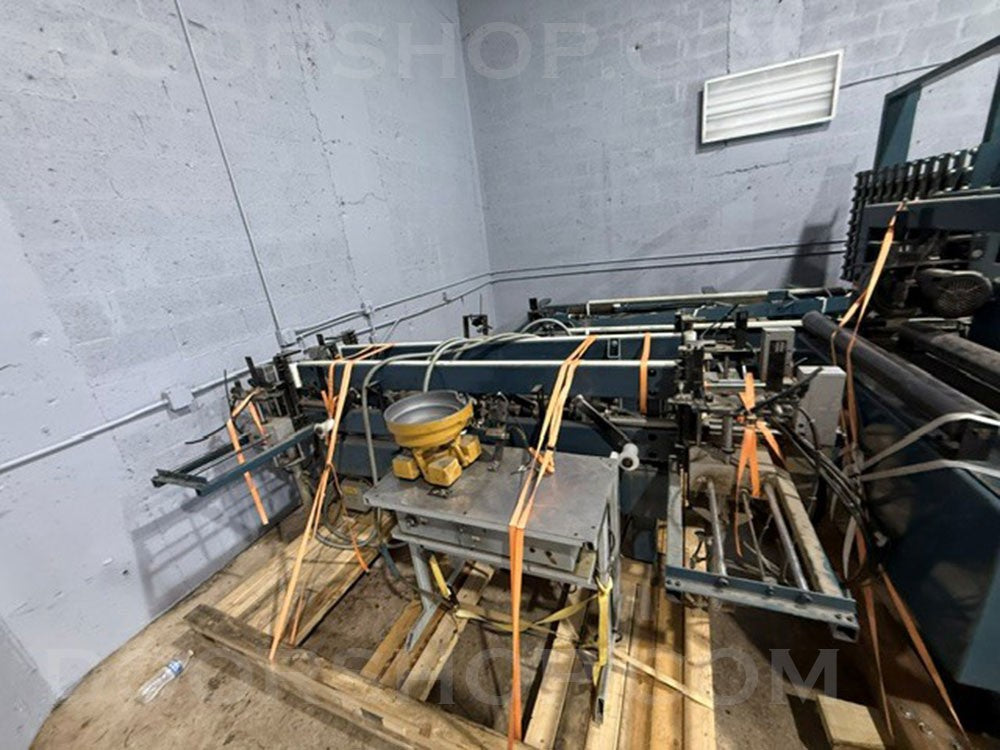

• One bowl automatic screwfeeding (Designed for #9 philips screws)
• Two bowl automatic screwfeeding (two screw colors)(Designed for #9 philips screws)
• High speed option for increased production output
