Norfield 3800LR Door Lite Machine
$39,400
Skip to product information
New Listing
Norfield 3800LR Door Lite Machine
$39,400
SKU:
NF10601
Machine Details
Model
3800
Brand
Norfield
Manufacturing Date
2023
Serial Number
DL4451LR
Listing Number
NF10601
FOB
TX
Norfield 3800LR Door Lite Machine available for immediate sale. The 3800LR utilizes a template based process for cutting door lites and also includes latch drilling and faceplate routing. This machine will help reduce inventory on exterior doors and control the quality of the finished product. Ideal for any size door shop.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features
- Eight location clamping system provides a firm grip on the door
- Adjustable RPM speed control accommodates both wood and metal door cutting
- Industrial air filter, lubricator and regulator for long life
- Three location clamping actuation
- Neoprene clamp pads that protect the material from marring
- Quick-change for 2-3/8" to 2-3/4" backsets
Specs
| Capabilities | Min | Max |
| Door Width | 3'0" | |
| Door Height | up to | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Lockbore Size | 1-1/2" | 2-1/8" |
| Lock Backset | 2-3/8" | 2-3/4" |
| Faceplate Width | up to | 1-1/8" |
| Faceplate Length | up | 2-1/2" |
| Approx. Shipping Weight | 2,000 lbs | |

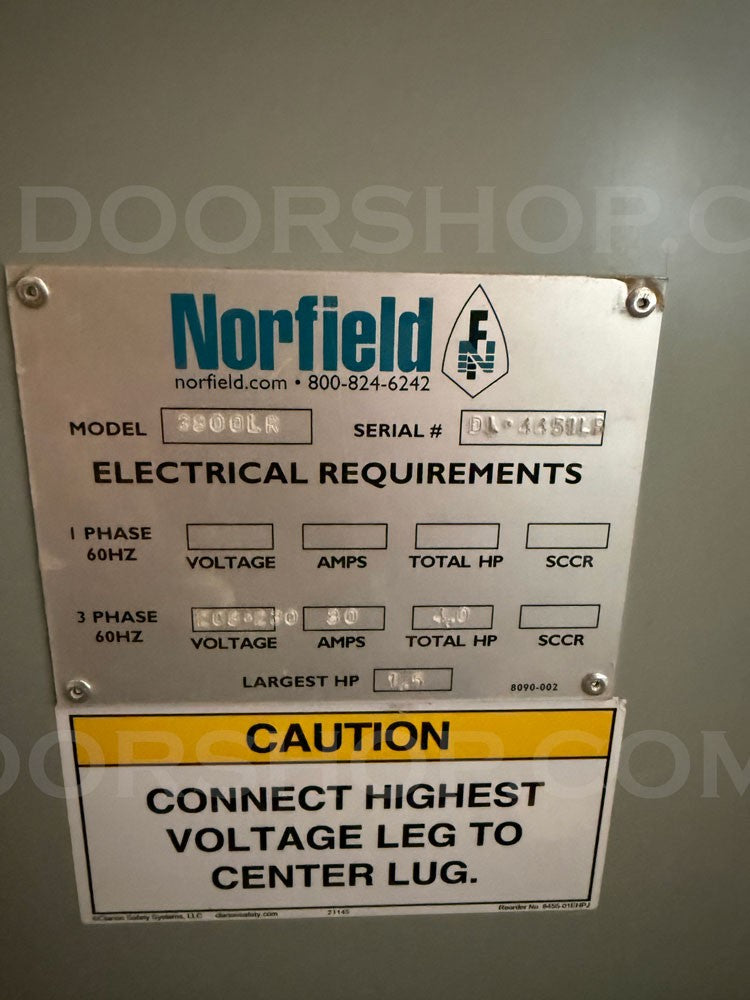

| Electrical | 208V 60Hz 230V 60Hz |
|
| Air | 3CFM @ 90PSI | |
