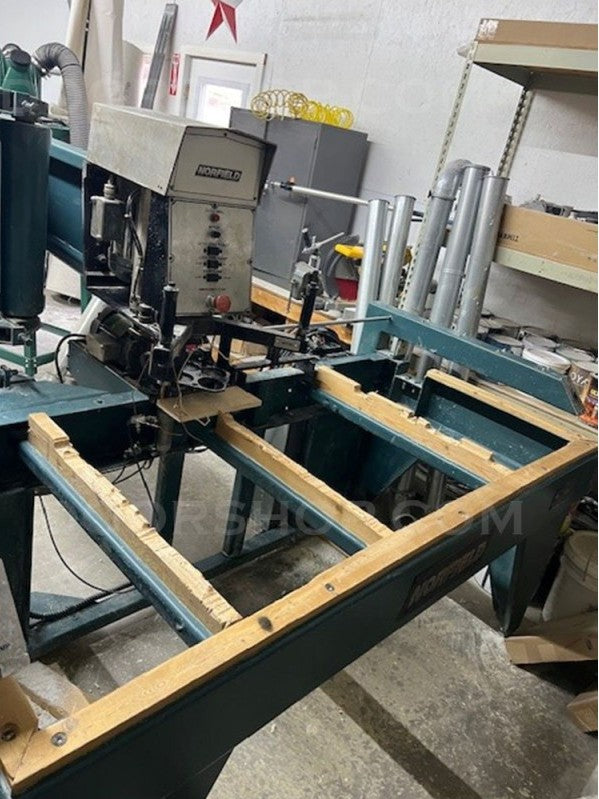

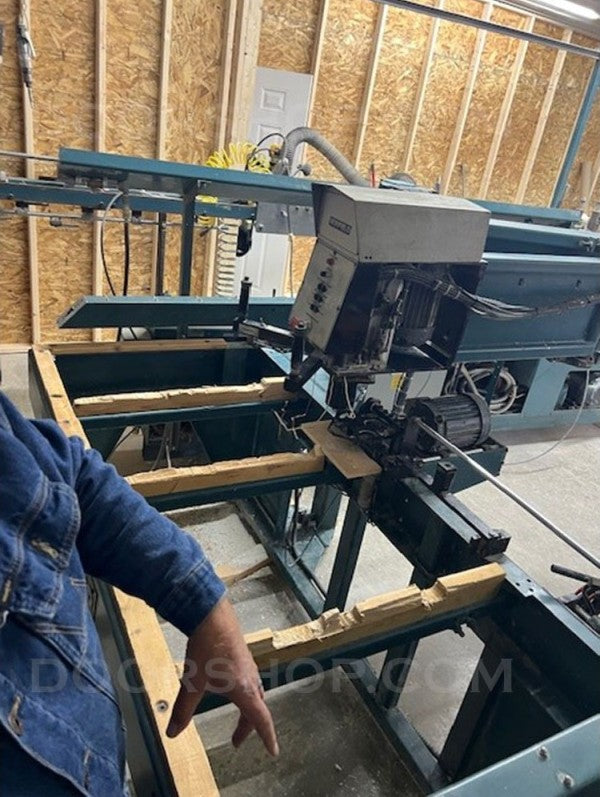

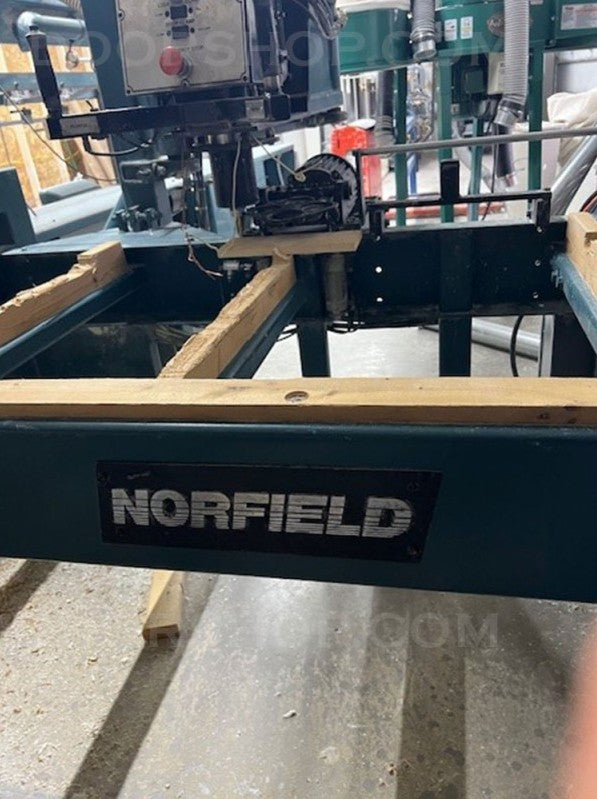

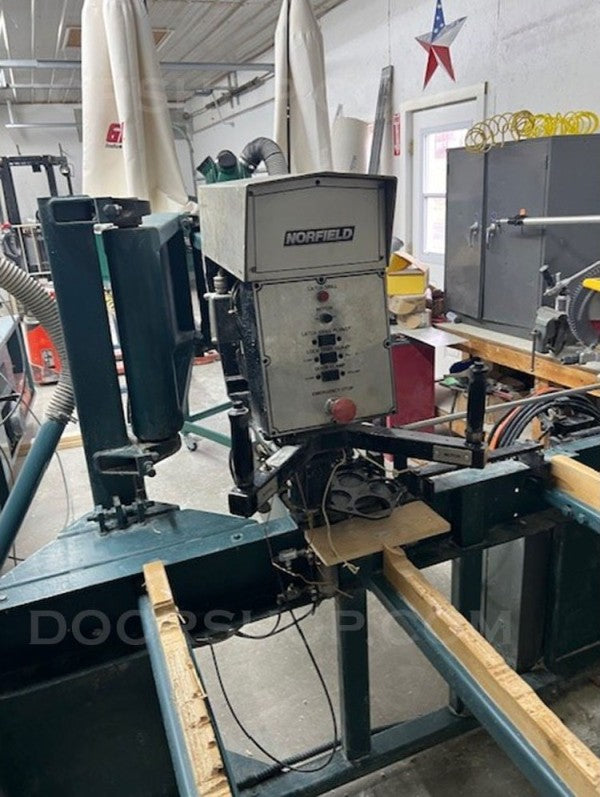

Norfield 3800L Door Lite Cutter with Lock and Latch Boring
$5,830
SKU:
NF10573
Machine Details
Model
3800L Door Lite Cutter with Lock and Latch Boring
Brand
Norfield
Manufacturing Date
1985

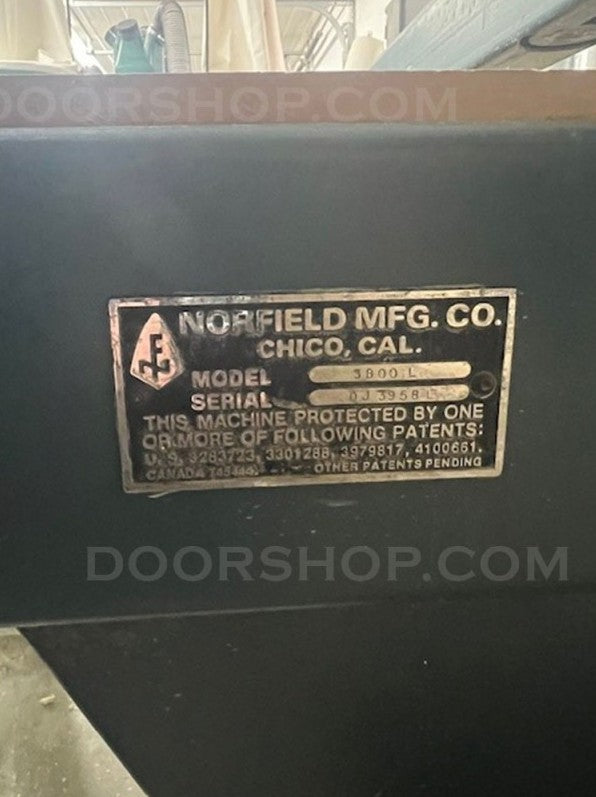

Serial Number
DL3958L
Listing Number
NF10573
FOB
NY
Save money on inventory while also controlling product quality with the 3800L. Using a simple template-based system, the 3800 cuts lite openings in steel, fiberglass, or wood doors. This Norfield also features lock and latch boring for single or double lock doors. Strong product support from Norfield. Available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Features

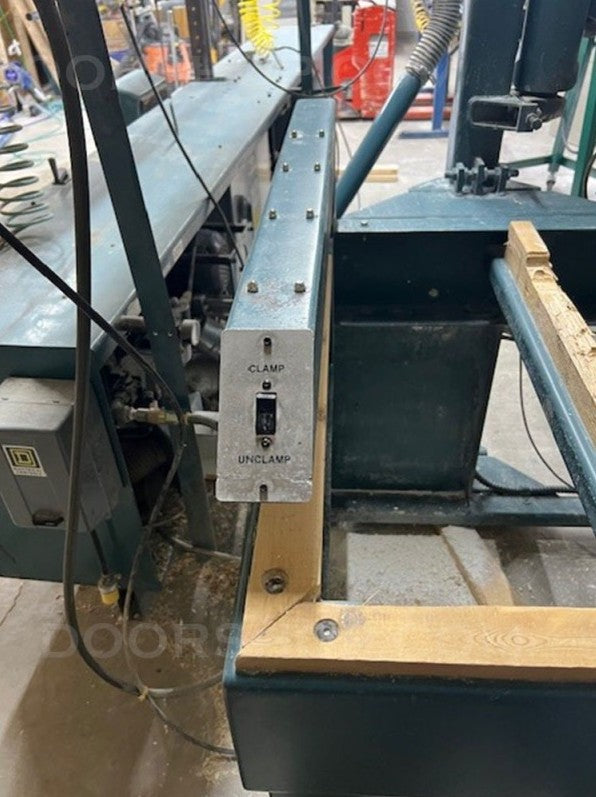

- Eight location clamping system provides a firm grip on the door
- Adjustable RPM speed control accommodates both wood and metal door cutting
- Industrial air filter, lubricator and regulator for long life
- Three location clamping actuation
- Neoprene clamp pads that protect the material from marring
- Quick-change for 2-3/8" to 2-3/4" backsets
Specs
| Capabilities | Min | Max |
| Door Width | 3'0" | |
| Door Height | up to | 7'0" |
| Door Thickness | 1-3/8" | 1-3/4" |
| Lockbore Size | 1-1/2" | 2-1/8" |
| Lock Backset | 2-3/8" | 2-3/4" |
| Faceplate Width | up to | 1-1/8" |
| Faceplate Length | up | 2-1/2" |
| Approx. Shipping Weight | 2,000 lbs | |
| Electrical | 208V 60Hz 230V 60Hz |
|
| Air | 3CFM @ 90PSI | |
