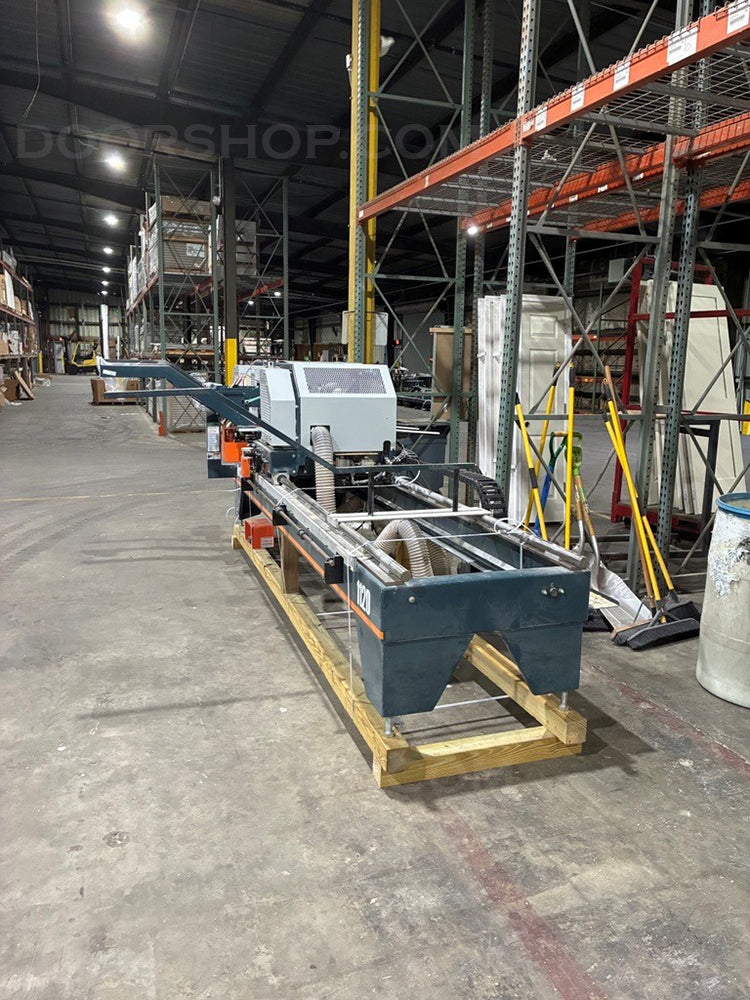

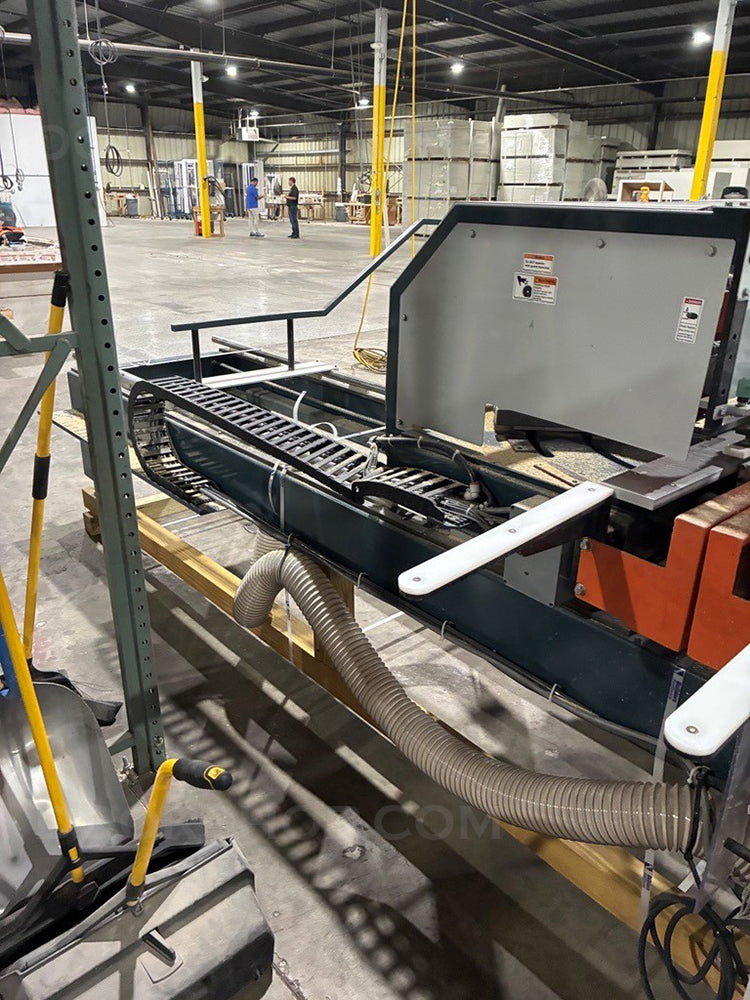

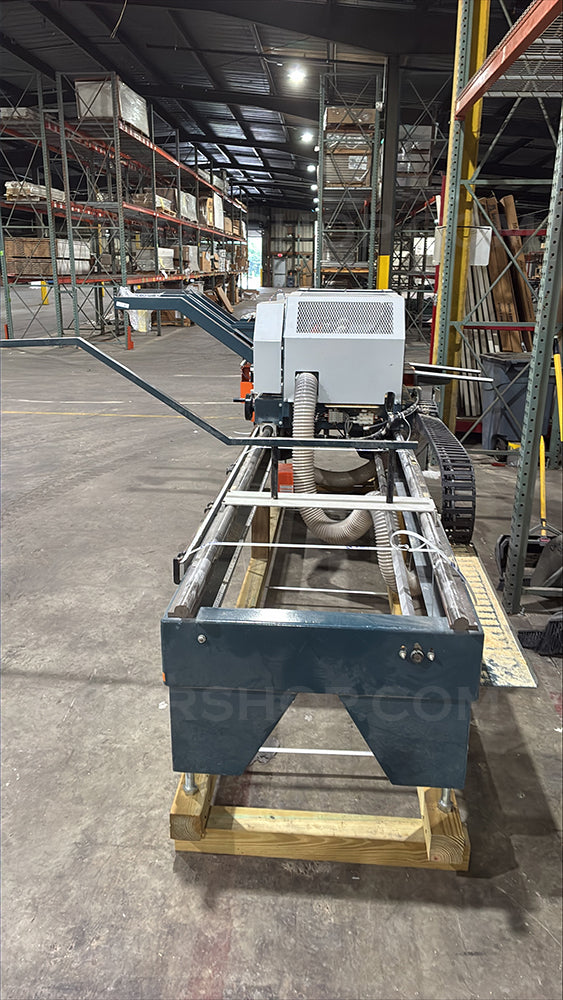

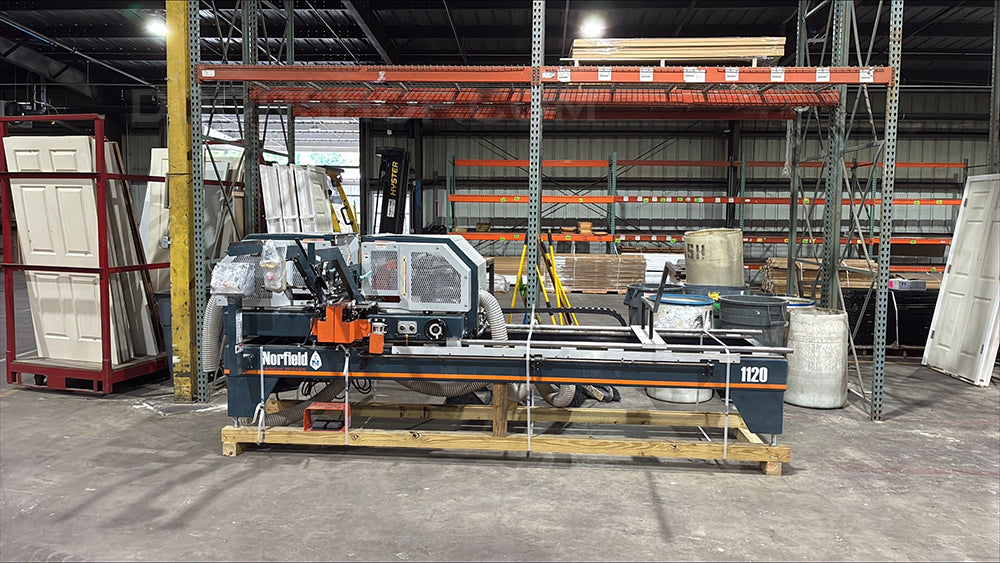

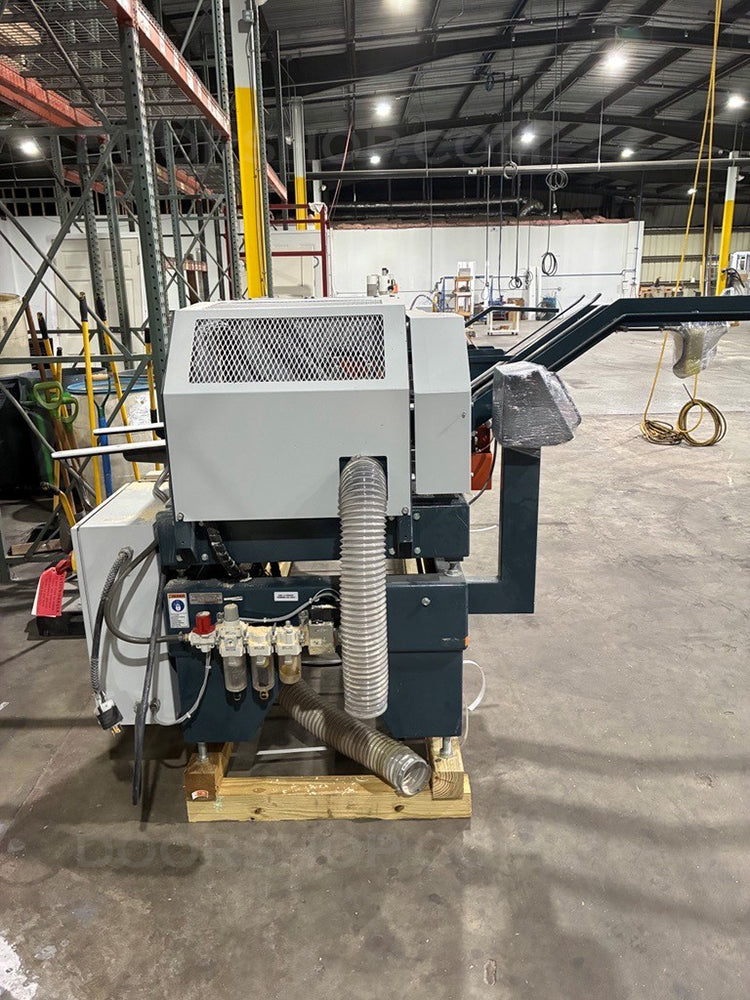

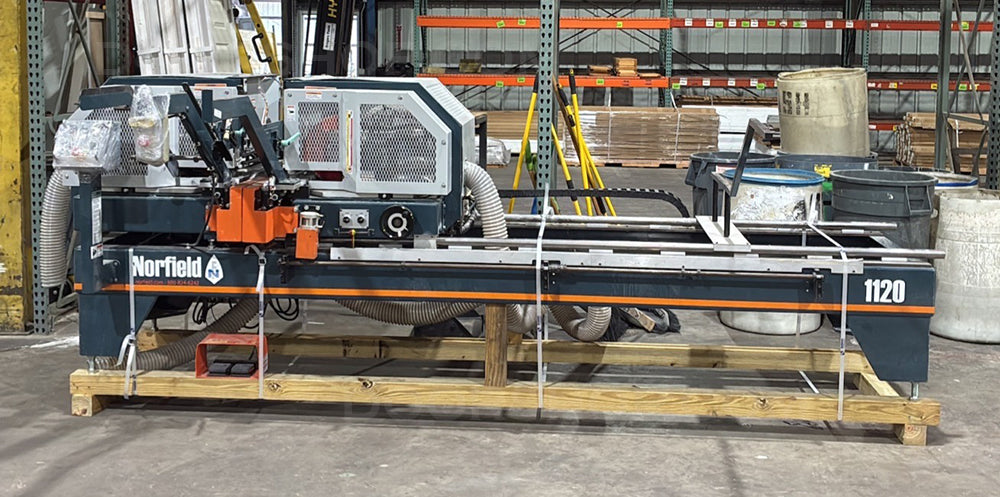

Norfield 1120 Automatic Casing Saw
$41,350
Skip to product information
New Listing
Norfield 1120 Automatic Casing Saw
$41,350
SKU:
NF10606
Machine Details
Model
1120
Brand
Norfield
Manufacturing Date
2022
Serial Number
1120-41
Listing Number
NF10606
FOB
VA
For super-fast production of precise door casing legs and heads, the 1120 is excellent. Thanks to automatic hopper feed, this double-ended saw clamps, cuts, and ejects each part at a rate of 20+ pieces/minute. Pre-set mechanical stops ensure exact consistency, and change-overs are fast and simple. Notably, the 1120 design entails a top-down cutting stroke to prevent splintering. Thorough guarding maximizes safety, and the 1120 is ported for dust collection. Outstanding product support available from Norfield. Available for immediate sale
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Top-down saw stroke
- Pre-set length adjustment
- Foot pedal cycle start/stop
- Powered angle adjustment
- Standard dust collection shrouding
- Easy-load hopper feed
- Saw brakes
- Flow-through design
Options
- Dust collection vacuum
Specifications
| Materials | Casing or brickmould | |
| Door heights | up to 8-0 | |
| Door width | down to 1-6 | |
| Material width | 1" to 4-1/2" | |
| Material thickness | 3/8" to 1-1/2" | |
| Undercut/Sill cut angle | 0° to 10° | |
| Typical cycle | 25 ppm | |
| Approx. Shipping Weight | 2400 lbs | |
| Floor Space | 8' x 16' | |

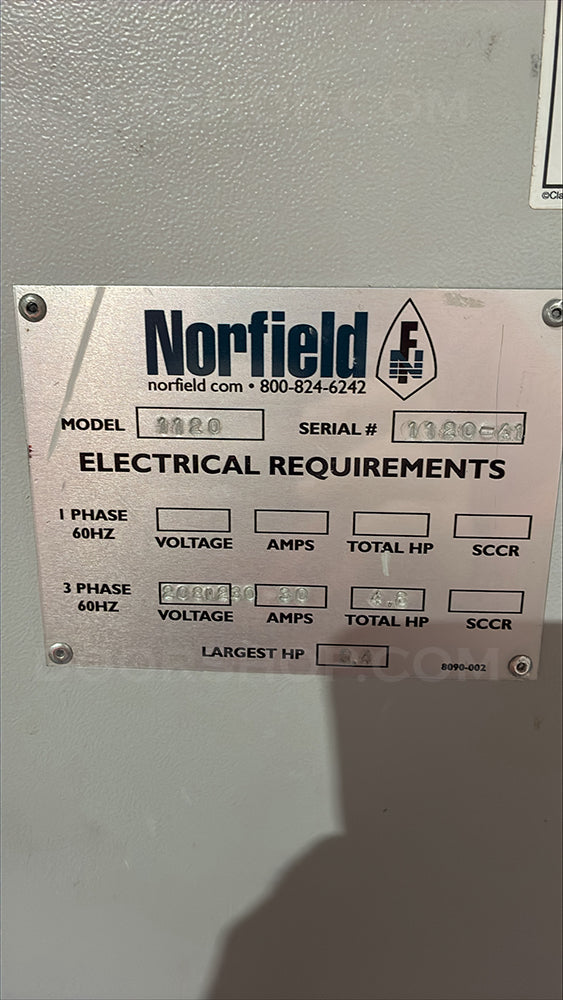

| Electrical | 208/230 VAC-3Ø-60 HZ-30amp | |
| Air | 20CFM @ 90psi | |
