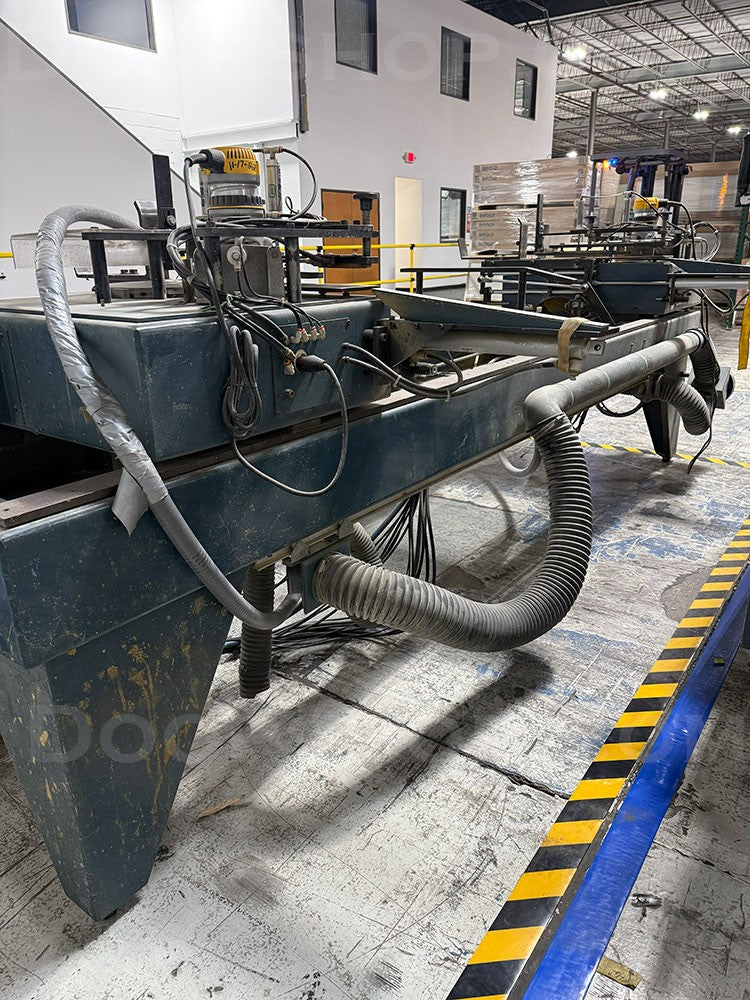

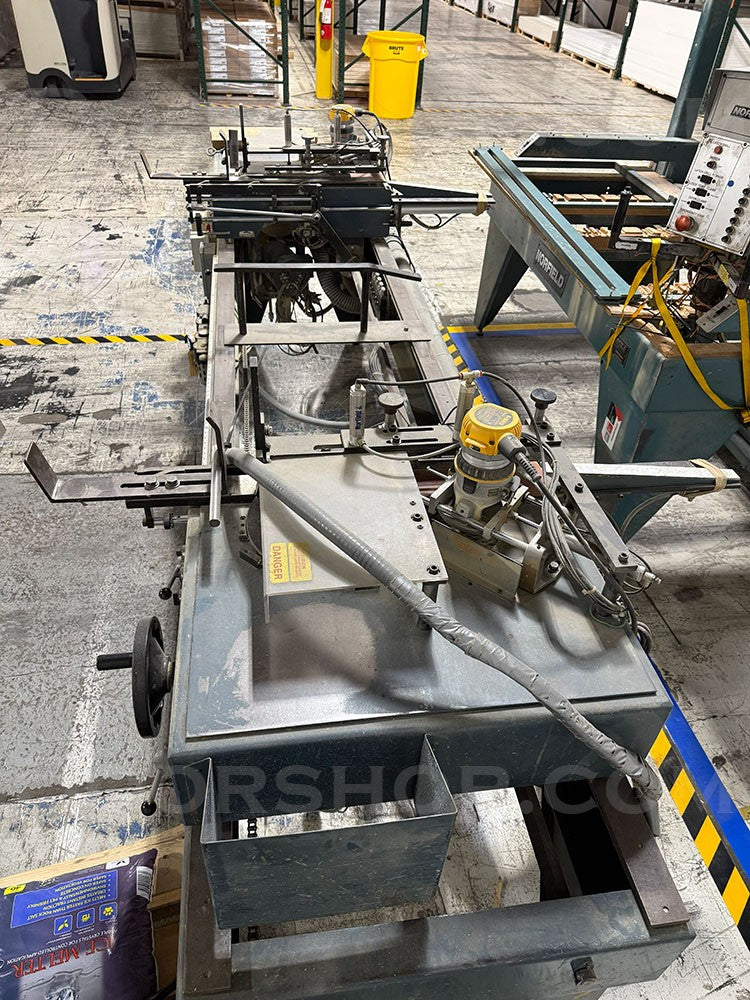

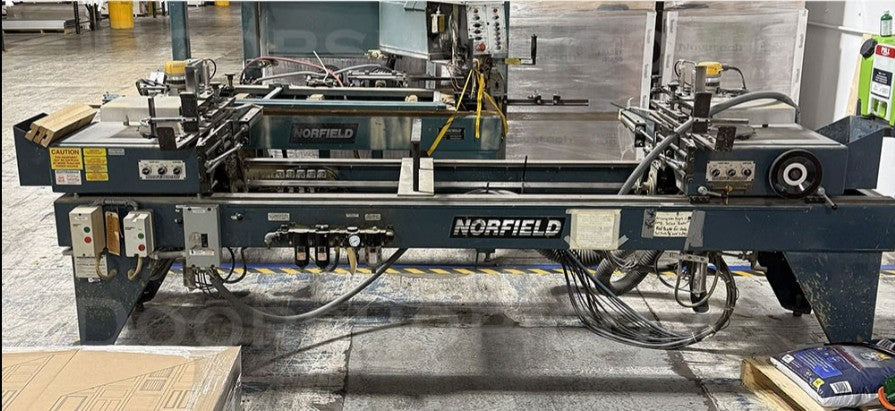

Norfield 1020K Automatic Casing Saw
$12,500
Skip to product information
Norfield 1020K Automatic Casing Saw
$12,500
SKU:
NF10592
Machine Details
Model
1020K Automatic Casing Saw
Brand
Norfield
Manufacturing Date
2002
Serial Number
TS1865K
Listing Number
NF10592
FOB
IN
For rapid production of precise door casing legs and heads, the 1020 does the trick. The automatic hopper-fed, reciprocating cutting cycle enables throughput up to 25 ppm. Available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Hopper feeding for ease of use
- Compound angle adjustments for variety of cuts
- Industrial-quality 60-tooth carbide-tipped 10" saw blade
- Adjustment switch for changing from 45° to 90° with ease
Options
- Kerfing of case
- Dust collection system with vacuum
- Dust collection system without vacuum
Specifications
| Casing Material | Min | Max |
| Width | up to 3-1/2" | |
| Length | 1'6" | 8'0" |
| Thickness | 3/8" | 1-1/2" |
| Min | Max | |
| Compound Angle | 0° | 10° |
| Angle of Cut | 90° | 45° |
| Max. Capacity | 30 cycles per min | |
| Avg. Capacity | 24 cycles per min | |
| Approx. Shipping Weight | 1,600 lbs | |
| Floor Space | 6' x 14' | |

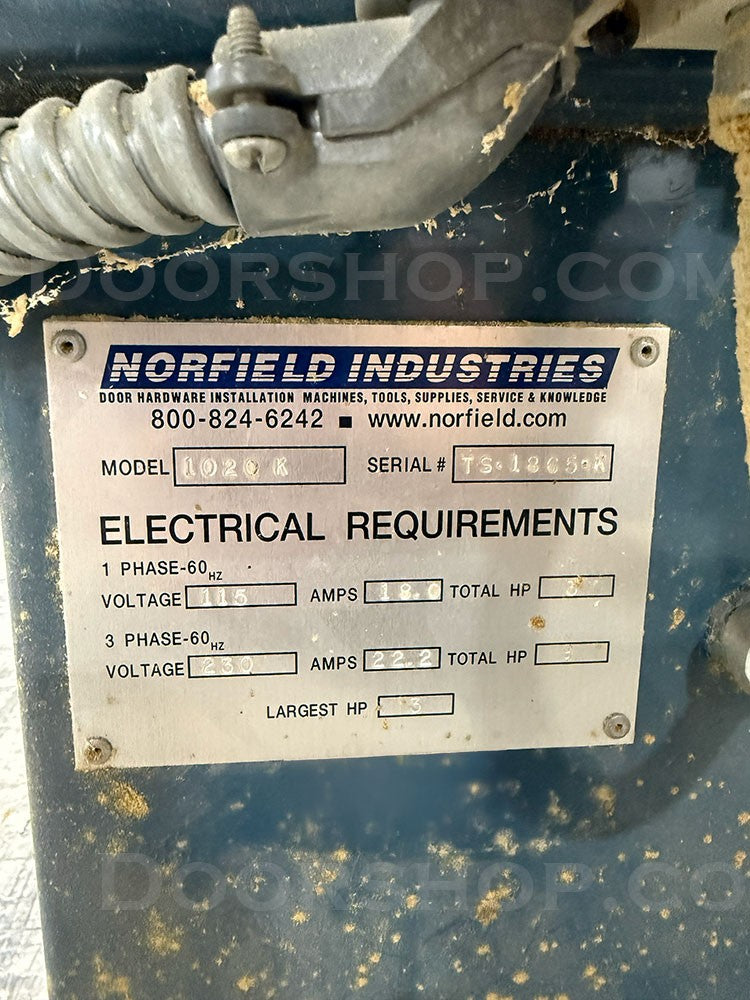

| Electrical | 230V 60Hz @ 15AMP 208V 3Phase @ 60HZ 15 Amp 460V 3Phase @ 60HZ 10 Amp 115V Single Phase@ 20 Amps |
|
| Air | 22CFM @ 90PSI (1/2" I.D. min. line size) |
|
