Norfield 1020 Trim saw
$6,750
Skip to product information
New Listing

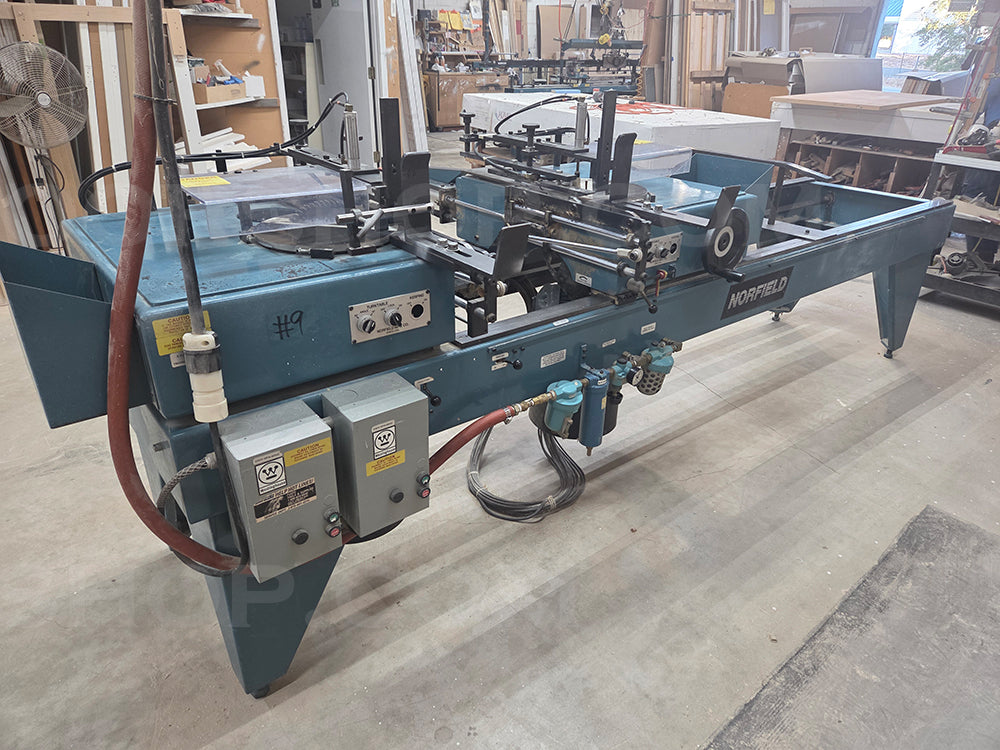

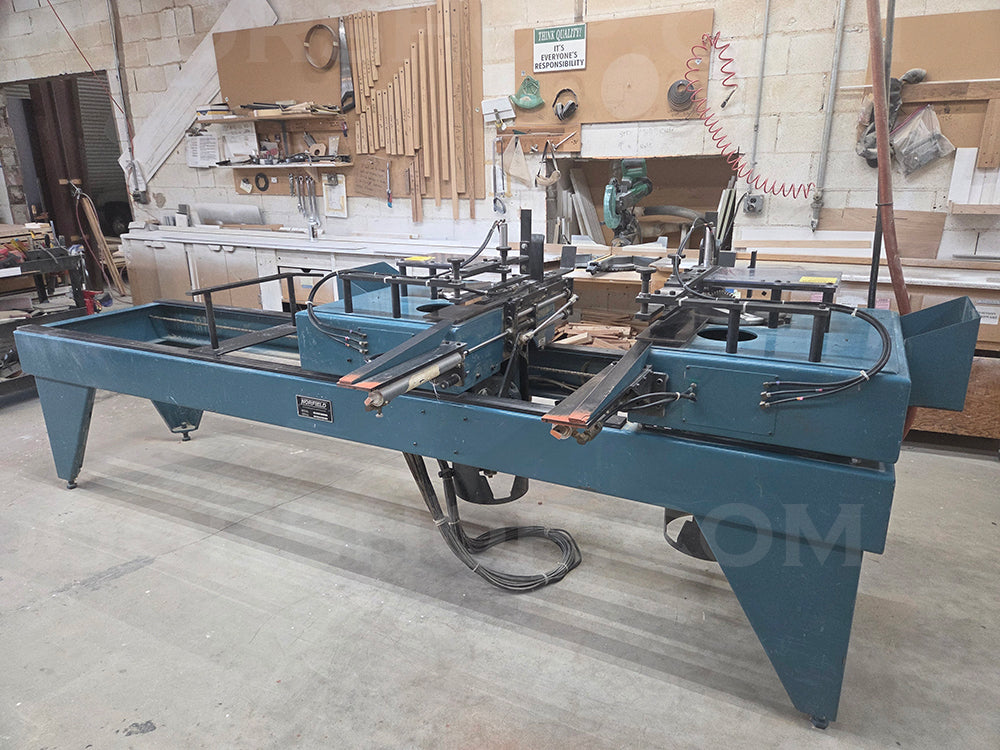

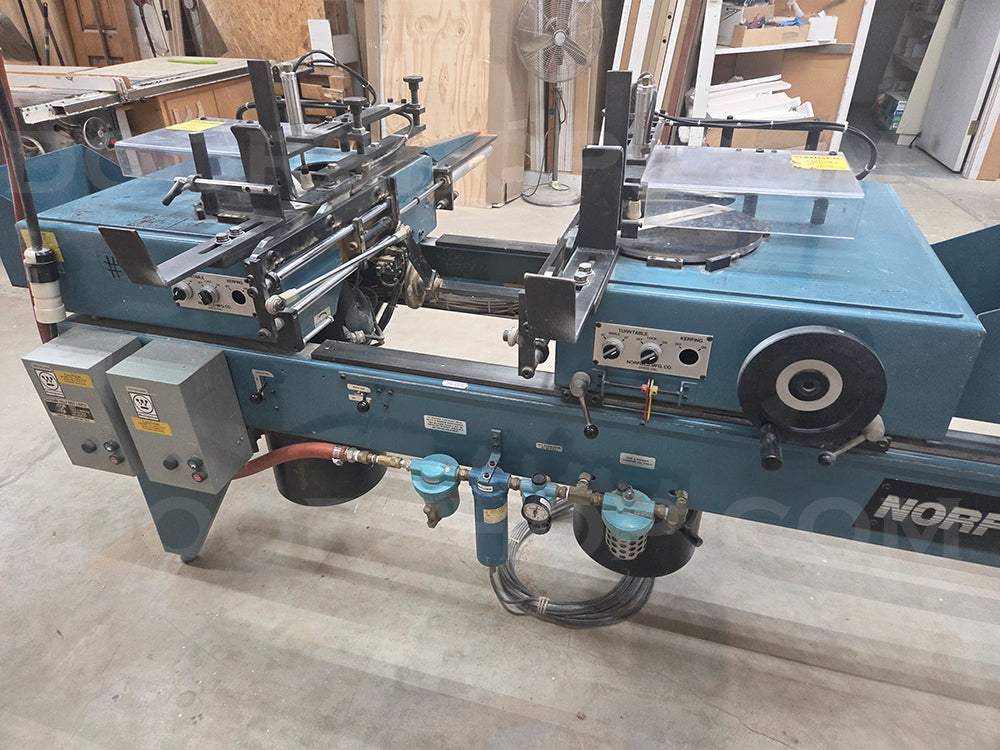

Norfield 1020 Trim saw
$6,750
SKU:
NF10608
Machine Details
Model
1020
Brand
Norfield
Manufacturing Date
1988
Serial Number
TS1611
Listing Number
NF10608
FOB
CA
Norfield 1020 Trim saw available for immediate sale. The 1020 Trim Saw is a fast and accurate solution for cutting door trim at a rate of up to 25 pieces per minute. Quickly adjust between 90 & 45 degrees and trim lengths. Ideal for any size door shop.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Hopper feeding for ease of use
- Compound angle adjustments for variety of cuts
- Industrial-quality 60-tooth carbide-tipped 10" saw blade
- Adjustment switch for changing from 45° to 90° with ease
Options
- Kerfing of case
- Dust collection system with vacuum
- Dust collection system without vacuum
Specifications
| Casing Material | Min | Max |
| Width | up to 3-1/2" | |
| Length | 1'6" | 8'0" |
| Thickness | 3/8" | 1-1/2" |
| Min | Max | |
| Compound Angle | 0° | 10° |
| Angle of Cut | 90° | 45° |
| Max. Capacity | 30 cycles per min | |
| Avg. Capacity | 24 cycles per min | |
| Approx. Shipping Weight | 1,600 lbs | |
| Floor Space | 6' x 14' | |
| Electrical | 230V 60Hz @ 15AMP 208V 3Phase @ 60HZ 15 Amp 460V 3Phase @ 60HZ 10 Amp 115V Single Phase@ 20 Amps |
|
| Air | 22CFM @ 90PSI (1/2" I.D. min. line size) |
|
