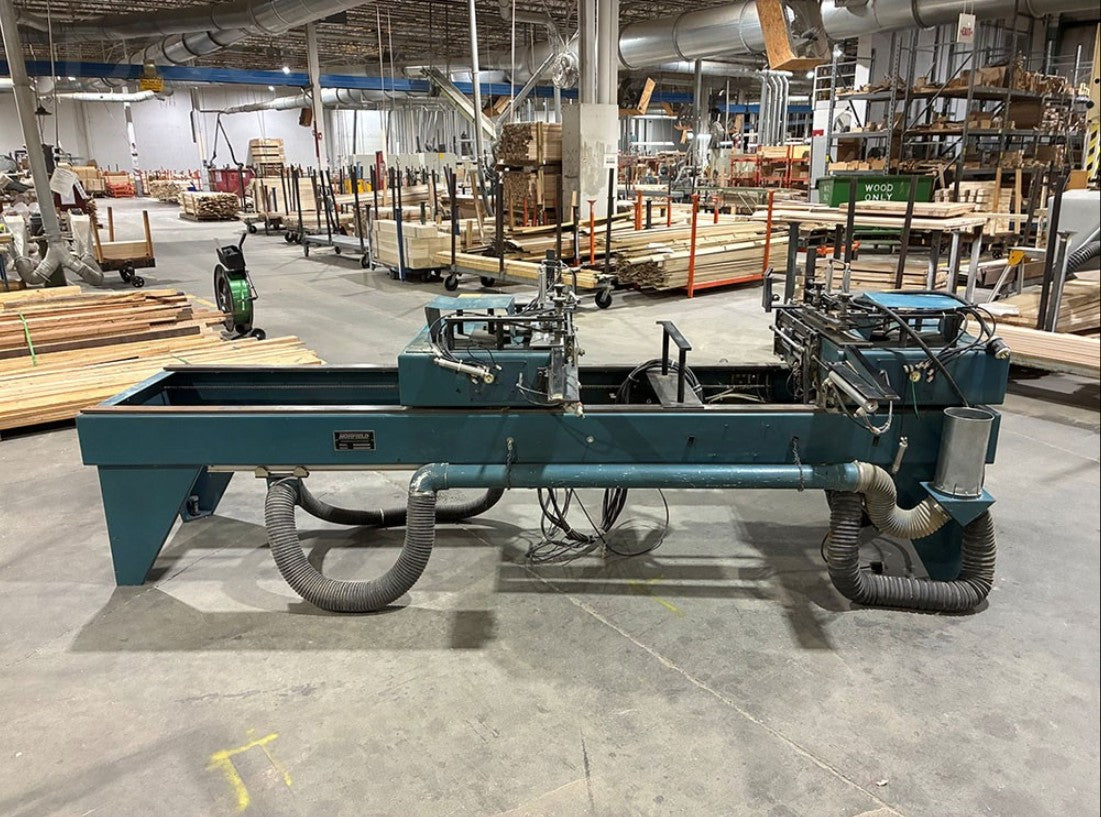

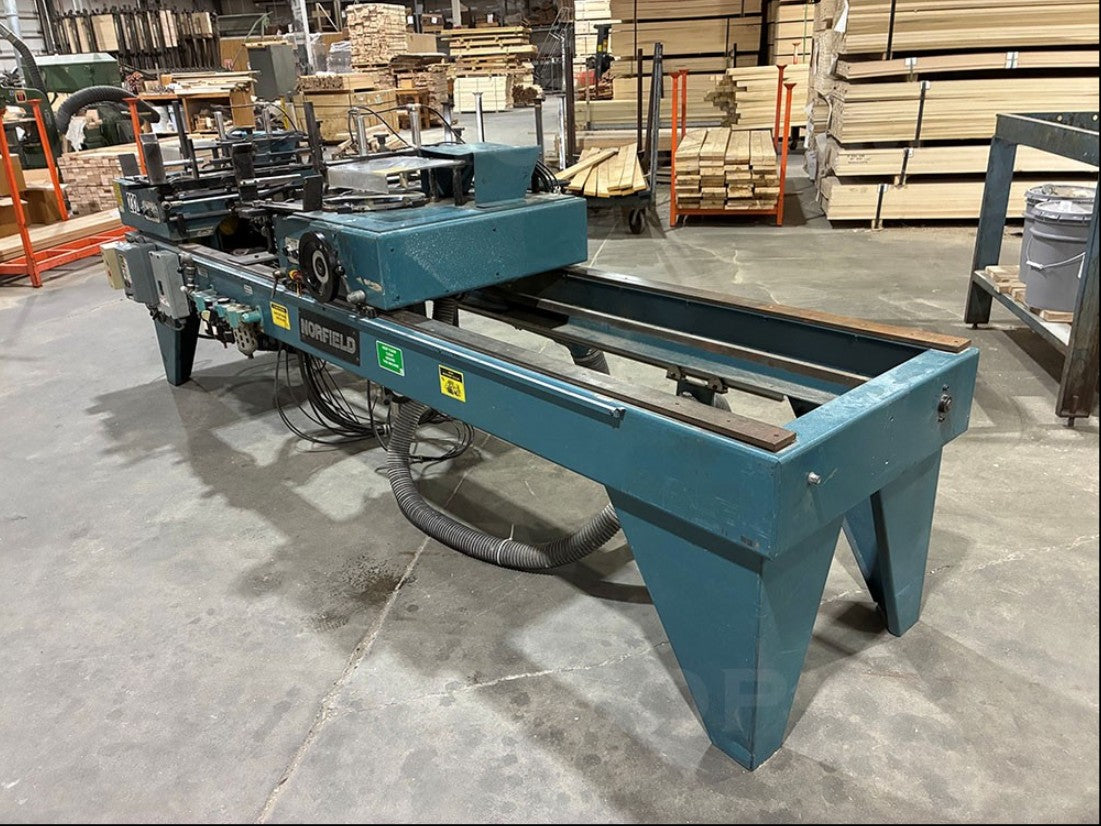

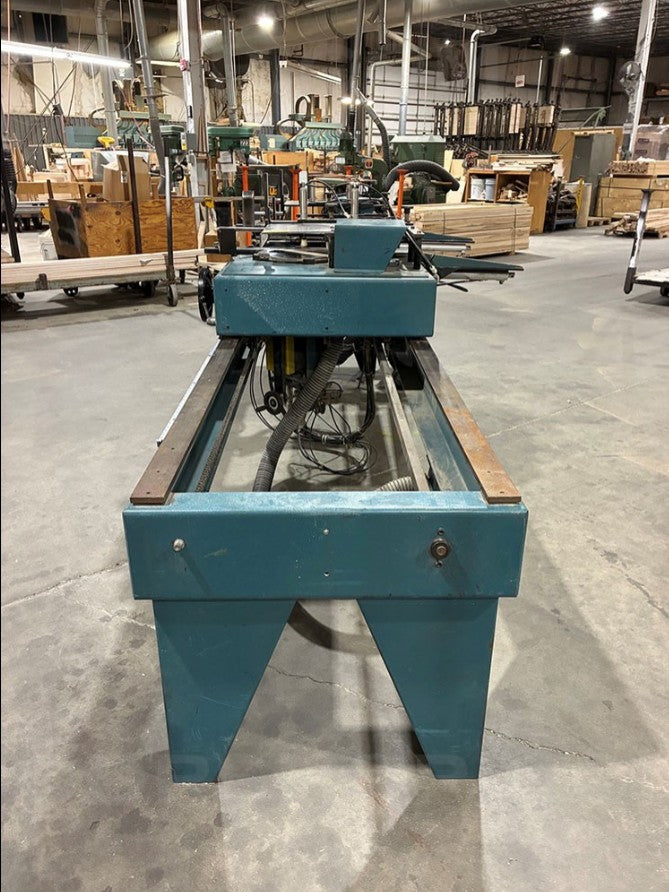

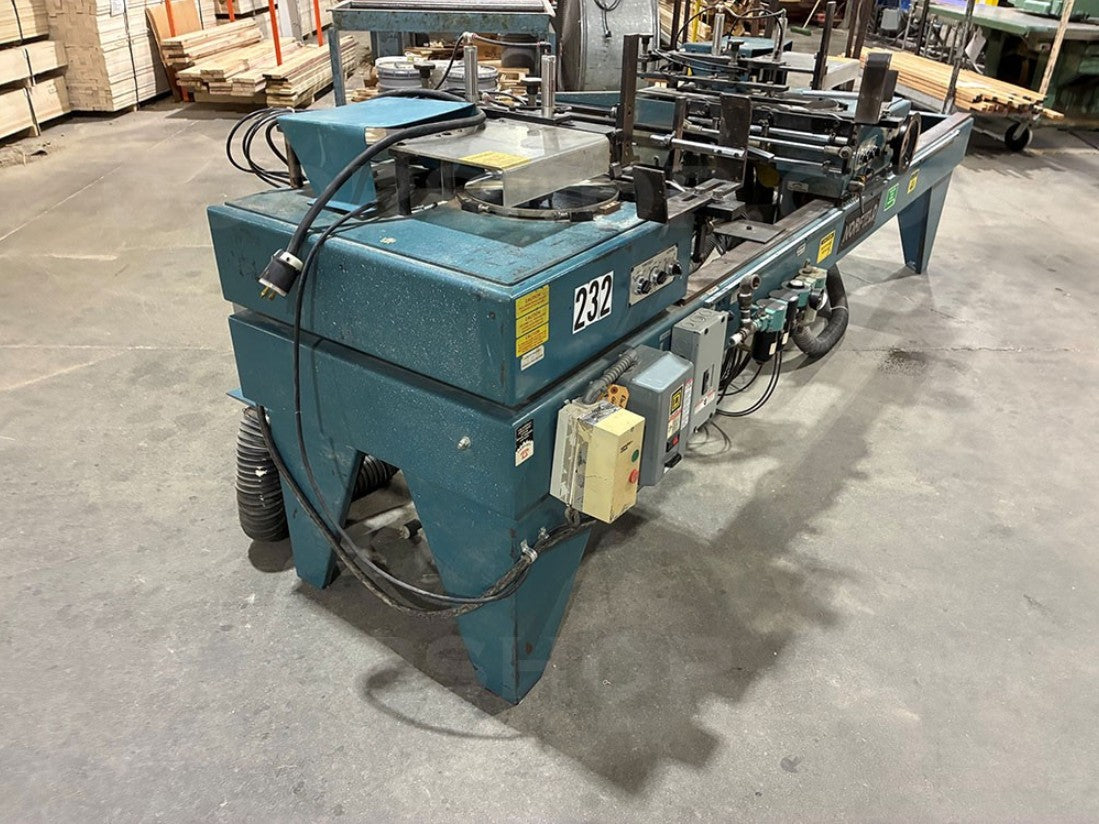

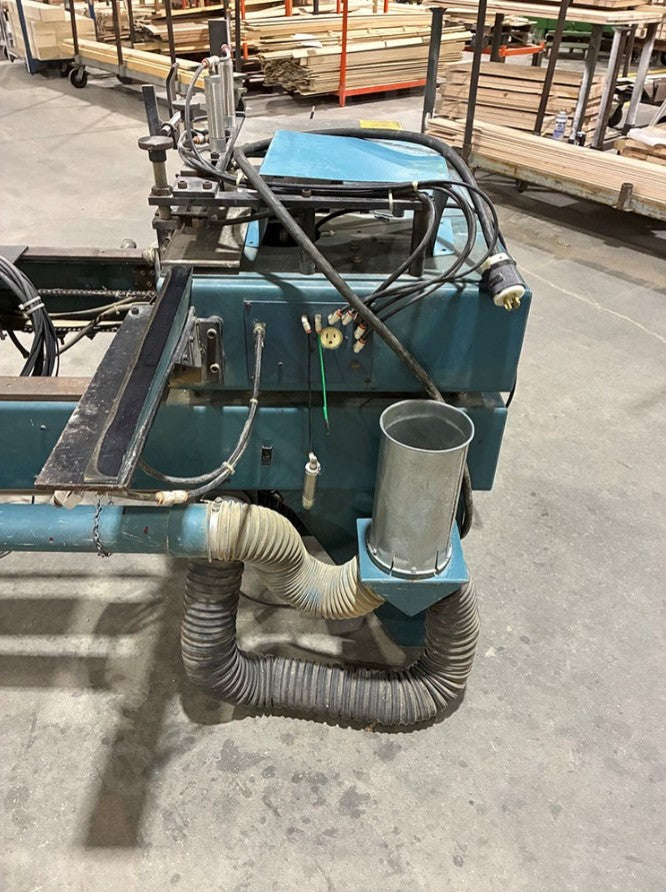

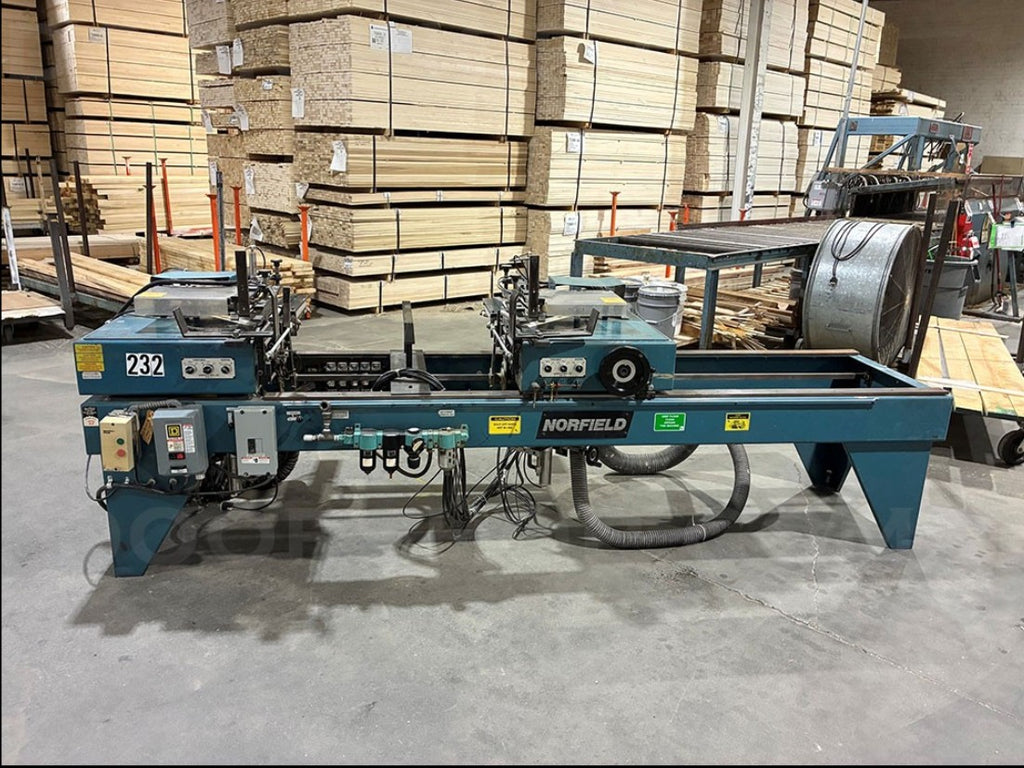

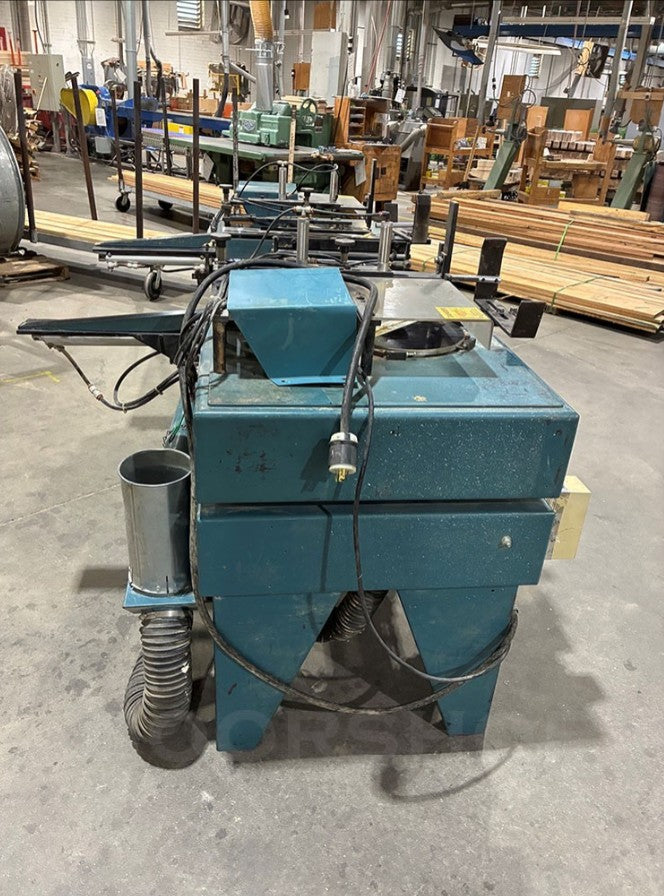

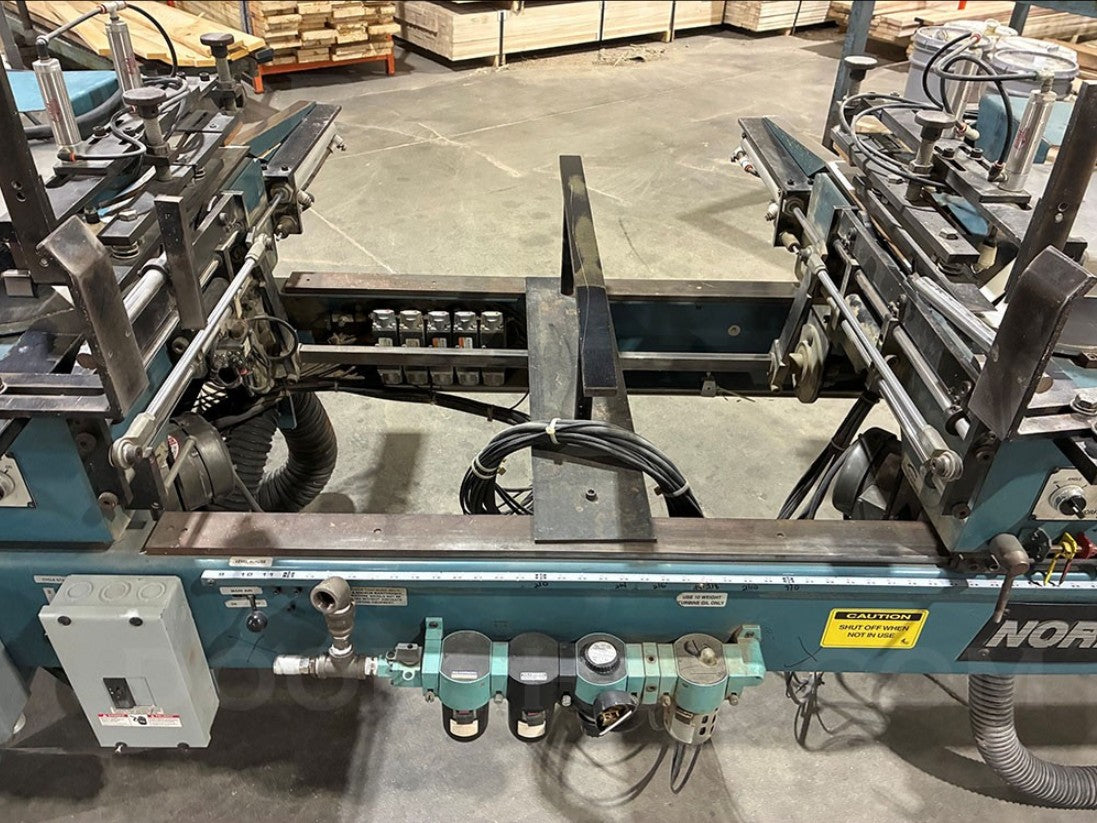

Norfield 1020 Automatic Casing Saw
Sale price
$7,150
Regular price $9,300
SKU:
NF10588
Machine Details
Model
1020 Automatic Casing Saw
Brand
Norfield
Manufacturing Date
1997

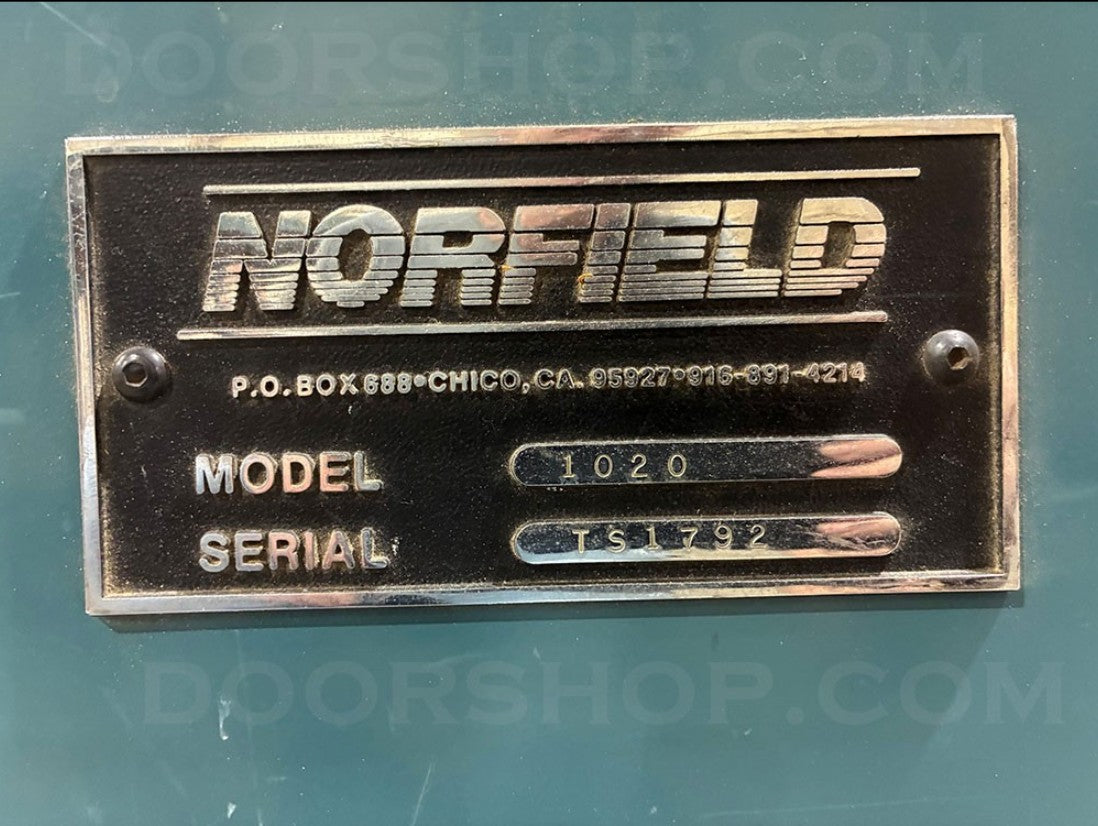

Serial Number
TS1792
Listing Number
NF10588
FOB
NC
Produce casing legs and heads fast and accurately with the Norfield 1020. Hopper feed and automatic cycle result in high output: 20+ pieces per minute. Also very important – the 1020 is far safer than a chop saw. Just fill the material hopper and the machine does the rest, including ejection from the rear into a bin. Available for immediate sale.
When purchasing any used machine, consult your doorshop sales person about OEM technical support.
Standard features
- Hopper feeding for ease of use
- Compound angle adjustments for variety of cuts
- Industrial-quality 60-tooth carbide-tipped 10" saw blade

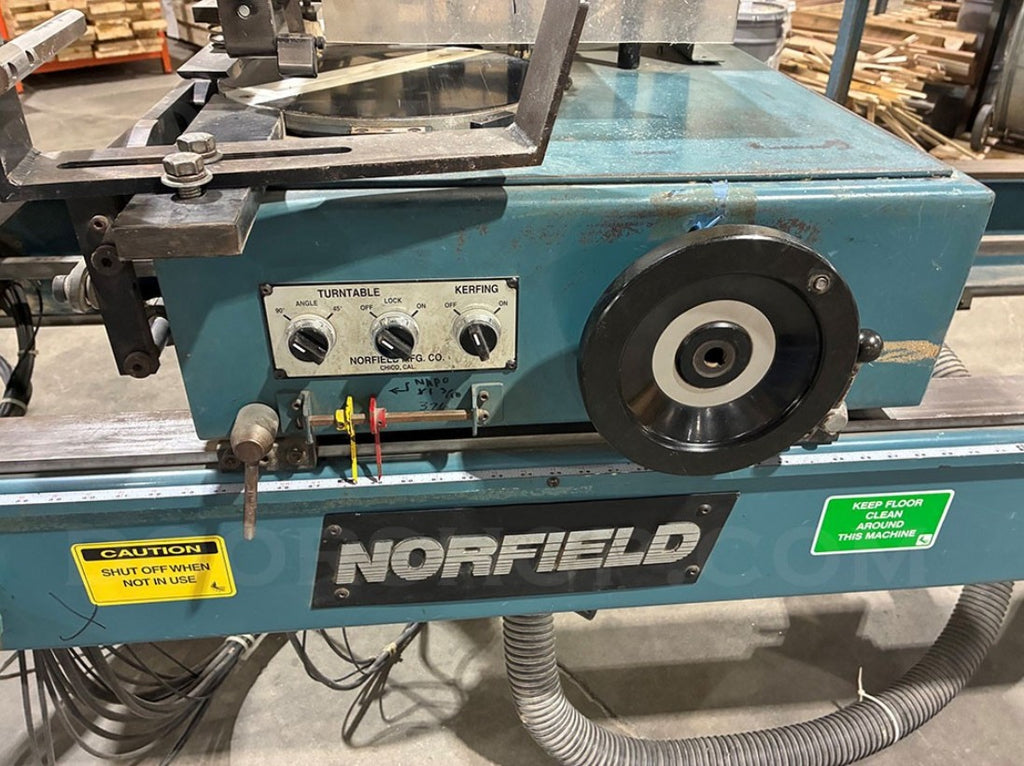

- Adjustment switch for changing from 45° to 90° with ease
Options
- Kerfing of case
- Dust collection system with vacuum
- Dust collection system without vacuum
Specifications
| Casing Material | Min | Max |
| Width | up to 3-1/2" | |
| Length | 1'6" | 8'0" |
| Thickness | 3/8" | 1-1/2" |
| Min | Max | |
| Compound Angle | 0° | 10° |
| Angle of Cut | 90° | 45° |
| Max. Capacity | 30 cycles per min | |
| Avg. Capacity | 24 cycles per min | |
| Approx. Shipping Weight | 1,600 lbs | |
| Floor Space | 6' x 14' | |
| Electrical | 230V 60Hz @ 15AMP 208V 3Phase @ 60HZ 15 Amp 460V 3Phase @ 60HZ 10 Amp 115V Single Phase@ 20 Amps |
|
| Air | 22CFM @ 90PSI (1/2" I.D. min. line size) |
|
